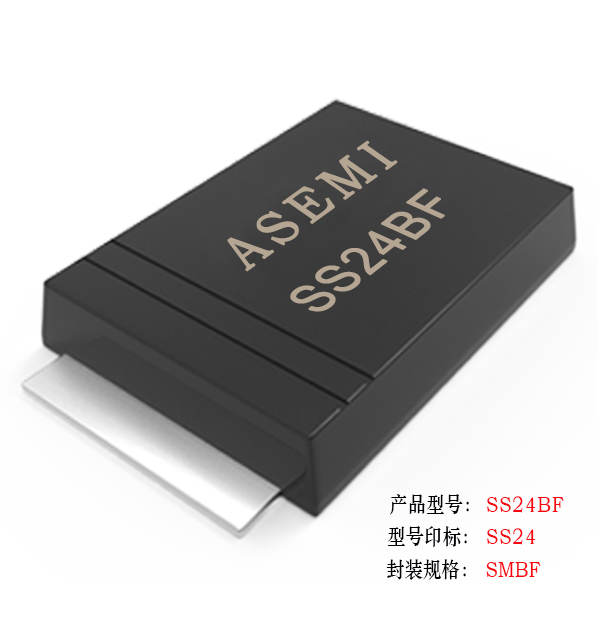

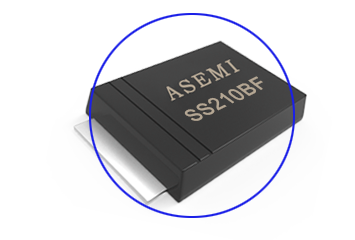

【SS210-SMBF】SS210BF,SS215BF,SS220BF,SS24BF,ASEMI schottkydiode
  • TypeSS210BF

    BrandASEMI

    PackageSMBF

    FeatureSMD diode

  • lo VRRM Chip Material Chip Number lr Temperature
    2A 40V~200V Metal & silicon chip 1 10ua -40~+150℃
    VF IFSM Chip Size Lead Number Trr Package
    0.54V~0.92V 60A 50MIL 2 5ns 3Kpcs/T&R 6Kpcs/box

    Adopts high-quality process chip, which has good sealing reliability and prevents electrical degradation

    Laser marking is not easy to fade and prevent refurbishment; epoxy resin grease has good stability

    Oxygen-free copper frame pins, bright tin plating to prevent oxidation, small internal resistance, good conductivity

    Adopt 5 layers of large corrugated kraft paper box, 4 layers of restraint belt protection

    The inner box is protected by moisture-proof plastic film, which is convenient for long-term storage in the warehouse

    Purchase:

    400-9929-667

    VIDEO

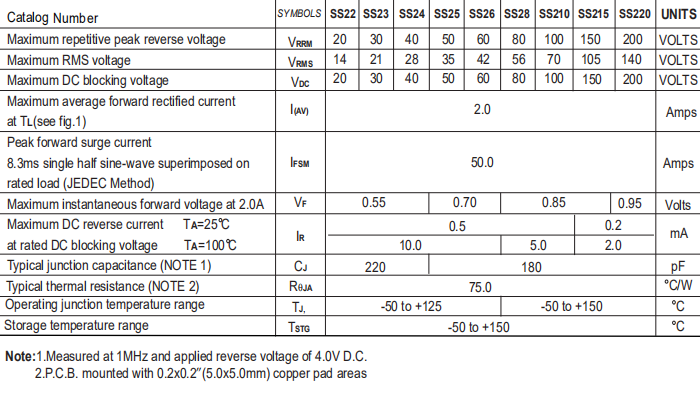

    PRODUCT PARAMETERS

    Video content details:

    ASEMI brand MB6S,MBS series,it adopts high-quality process chip with high stability, highly consistent product dispersion etc features.This product is ASEMI original product, the quality is stable and reliable.Welcome to apply for free sample test.

    Video content details:

    ASEMI brand MB6S,MBS series,it adopts high-quality process chip with high stability, highly consistent product dispersion etc features.This product is ASEMI original product, the quality is stable and reliable.Welcome to apply for free sample test.

    SS210规格书

    DETAIL

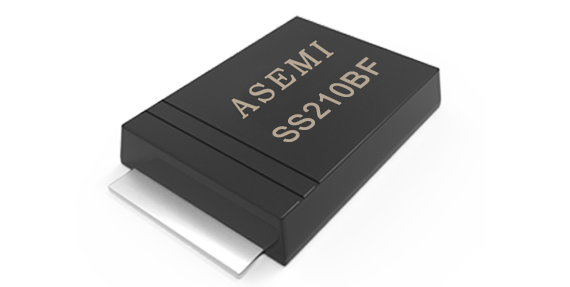

    SS210BF小图1

    Adopts high-quality process chip, which has good sealing reliability and anti-electricity decline.

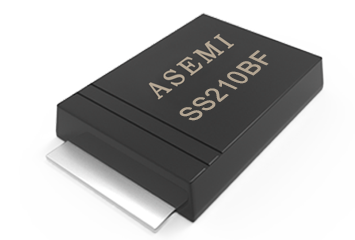

    SS210BF小图2

    Laser marking, not easy to fade; epoxy resin molding, good insulation stability.

    S1MBF 6小图3

    The frame pins are made of oxygen-free copper material, with small internal resistance, good conductivity.

    S1MBF 6小图4

    Independent small package to prevent material backlog collision and scratch, product information clearly marked.

    2W10

    5 layers of large corrugated kraft paper box, 4 fastening belt protection, pressure and wear resistance can be reused.

    ASEMI 盒子 1

    3-layer small corrugated inner box + moisture-proof plastic film protection, convenient to store and easy to solder on the machine.

    DESCRIPTION

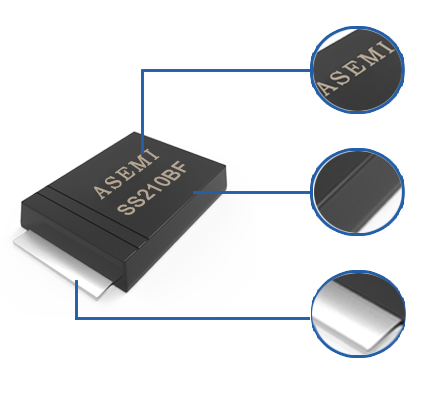

    SS210BF详情1

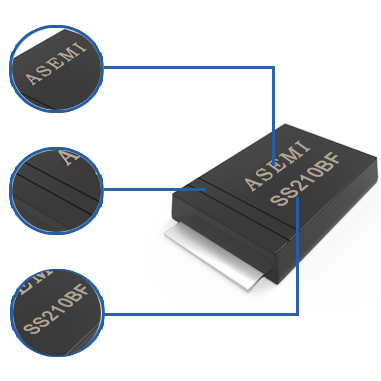

    SS210BF详解2
    GREEN LASER PRINTER

    laser marking is not easy to fade, to solve the ink screen printing easy fade

    high production efficiency of laser marking, short delivery time, solve the problem of long delivery time and low efficiency of ink printing

    PLASTIC PACKAGING

    disposable injection molding with epoxy resin material

    good flame retardant performance, high strength, high temperature resistance

    OXYGEN-FREE COPPER PINS

    oxygen free copper, good electrical conductivity

    pin thickening design, thickness up to 0.9mm, can work for a long time without heating

    the LOGO of the original "ASEMI" brand

    A = advanced

    SEMI = semiconductor

    The three bars represent the positive poles

    Safety testing and identification authority

    Safety inspection product yield labeling

    PRODUCT ANALYSIS

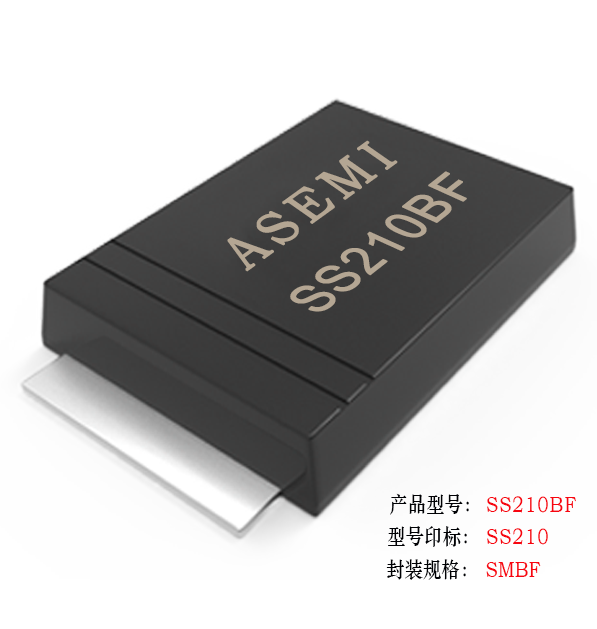

    [SS210BF] represents the complete model of the product

    [SS] stands for the schottky diode

    [2] means its forward current is 2a

    [10] represents its reverse withstand voltage is 100V

    [BF] represents it's belong to SMBF

    SIZE

    SMBF尺寸图
  • Body Height :

    4.3mm
  • Body Width :

    3.6mm
  • Lead Length :

    0.63mm
  • lead width

    2.0mm
  • SMBF尺寸图2
  • package

    SMBF
  • Lead Spacing:

    5.05mm
  • Lead Thickness:

    0.2mm

  • PROCESS

    Product

    stability

    Product stability

    Adopt high-quality process chip, the product continues to be stable

    Accurate product quantity

    Accurate product quantity

    Strict packaging inspection procedures to ensure that the product quantity is accurate, packaging without damage

    One-step injection molding

    One-step injection molding

    Automated equipment supports injection molding in one step

    Passed 6 quality checks

    Passed 6 quality
    checks

    12 parameters such as Vb, Io, If, Vf, and Ir are detected through 6 channels, and ΔV is controlled within 80V to improve the consistency and reliability of 4 chips.

    Interpersonal interaction

    Interpersonal interaction

    Reinforcement, cutting, separation, interpersonal interaction process

    PRODUCT PK

    ASEMI GPP PK 10 ASEMI GPP PK 11

    ASEMI adopts 50mil high-quality large chip, with good parameter consistency and stable and efficient output

    Use inferior 40mil small chip,Inferior chip easy to heat after long-time working serious, and will damaged the machine

    SS210BF PK 易掉字-3

    ASEMI uses laser marking is not easy to fade and prevents refurbishment

    Inferior and easy to drop word will pullute PCB board,and also exist a problem of malicious renovation

    无氧铜-4 易氧化-4通用PK 副本

    ASEMI uses high-purity oxygen-free copper frame and pins, with good electrical conductivity and high strength of thickened pins

    Ordinary steel is easy to be oxidize and virtual weld, the strength is low then easy to break

    PK7 PK8

    The ASEMI factory uses Jianding and Guankui high-precision equipment to test 18 key electrical data simultaneously

    Other equipment has low precision, the electrical parameter detection is not strict, and the quality consistency is poor

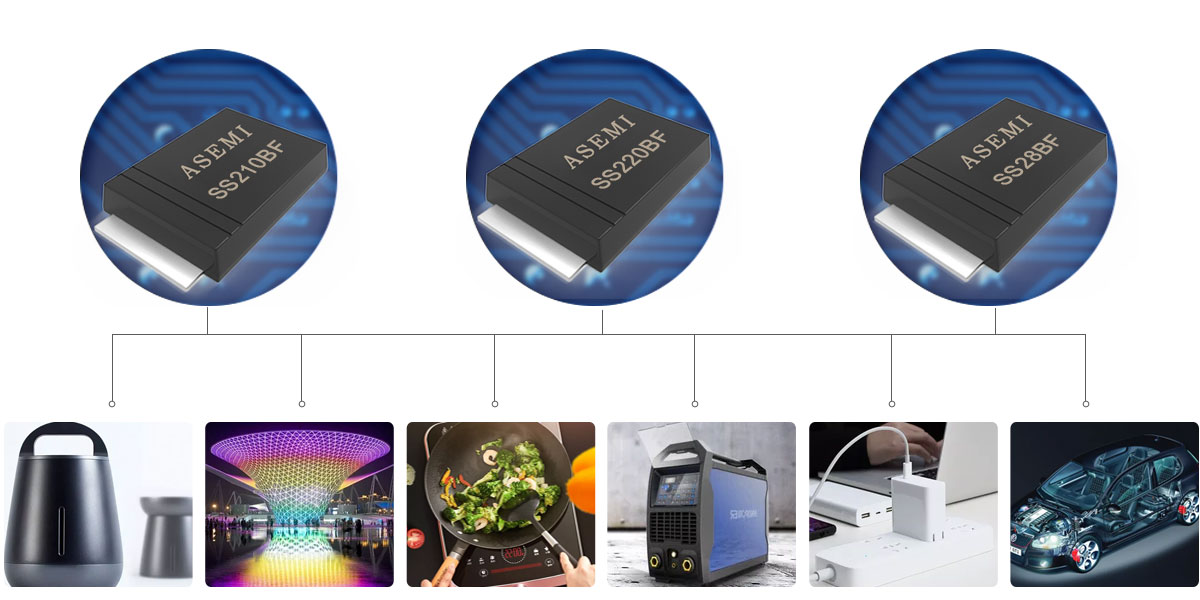

    APPLICATION

    Industrial equipment

    Led lamps and lanterns

    Induction cooker

    Electric welding machine

    Power adapter of laptop

    Automobile industry

    SS210BF应用领域
  • lo

    2A
  • VRRM

    40V~200V
  • IFSM

    60A
  • lr

    10ua
  • Temperature

    -40~+150℃
  • PARTNER

    CONTACT US

    【SS210-SMBF】SS210BF,SS215BF,SS220BF,SS24BF,ASEMI schottkydiode

    SS210BF electrical parameters: maximum forward average current 2A; maximum reverse peak voltage 100V

    SS210BF packaging method: 3Kpcs/reel, 6Kpcs/box, 60Kpcs/carton

    The diodes is widely used in: power supplies, chargers, adapters, LED lighting, home appliances, civil and industrial equipment and other products

    Welcome to apply for free sample test.
