[SB5100-DO-27] SB5100/SB5150/SB520/SB580 ASEMI Schottky diode
  • TypeSB5100

    BrandASEMI

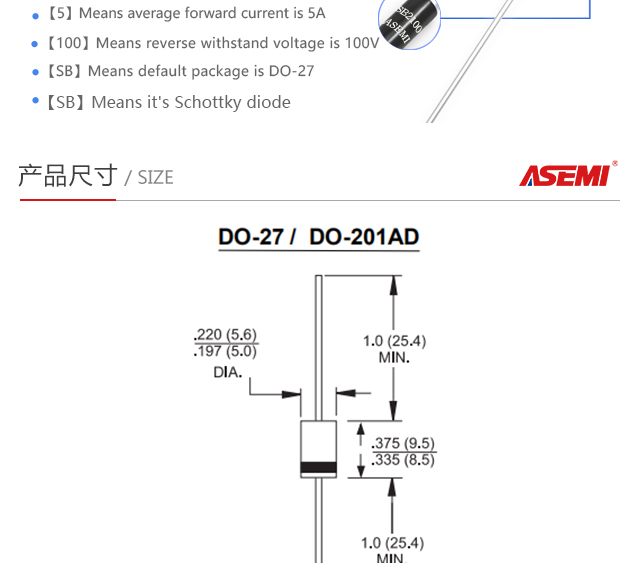

    PackageDO-27

    FeatureSmall current, Axial type

  • lo VRRM Chip Material Chip Number lr Temperature
    5A 20V~200V GPP Silicon 1 10mA -65~+150℃
    VF IFSM Chip Size Lead Number Trr Package
    0.55~0.95V 150A 72MIL 2 5ns 1.2Kpcs/box

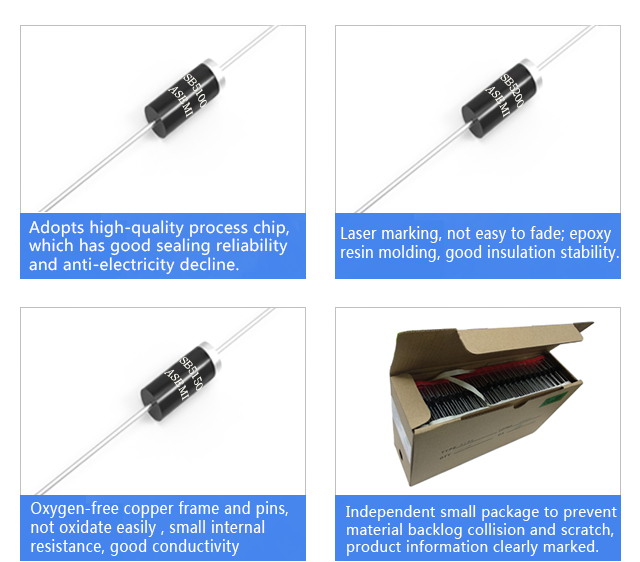

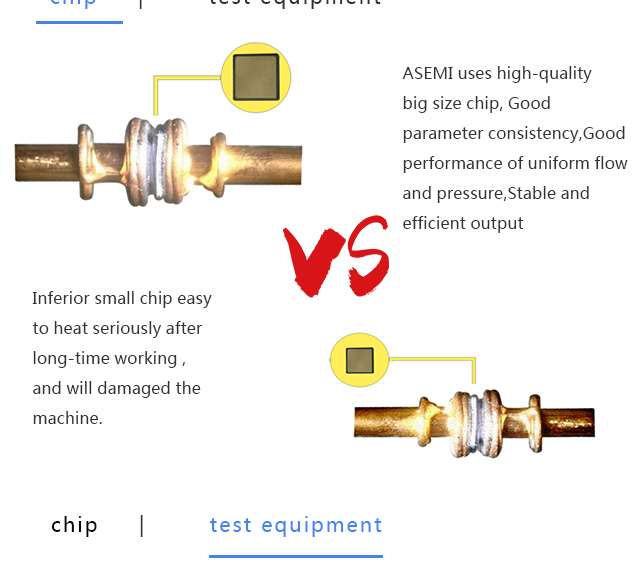

    Adopts high-quality process chip, which has good sealing reliability and prevents electrical degradation

    Silkscreen marking is not easy to fade and prevent refurbishment; epoxy resin grease has good stability

    Oxygen-free copper frame pins, bright tin plating to prevent oxidation, small internal resistance, good conductivity

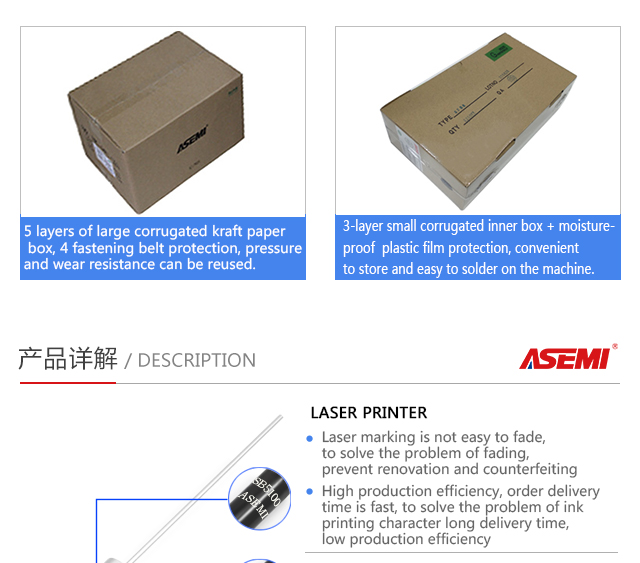

    Adopt 5 layers of large corrugated kraft paper box, 4 layers of restraint belt protection

    The inner box is protected by moisture-proof plastic film, which is convenient for long-term storage in the warehouse

    Purchase:

    400-9929-667

    VIDEO

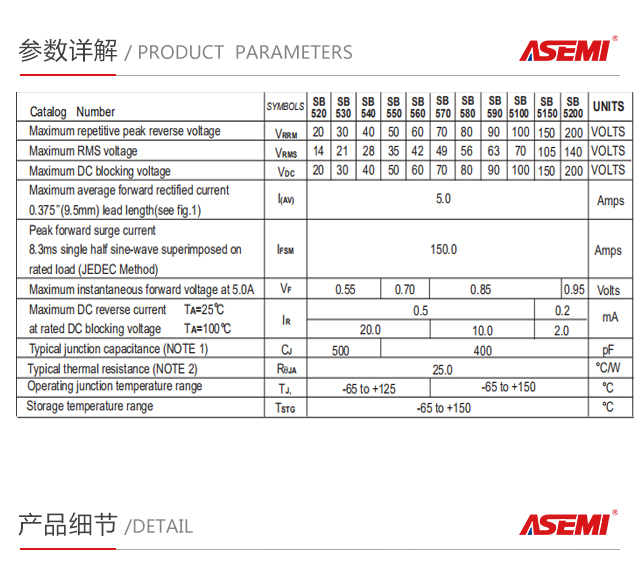

    PRODUCT PARAMETERS

    SB5100_01SB5100_02SB5100_03SB5100_04SB5100_05SB5100_06SB5100_07SB5100_08SB5100_09SB5100_10
  • lo

    5A
  • VRRM

    20V~200V
  • IFSM

    150A
  • lr

    10mA
  • Temperature

    -65~+150℃
  • PARTNER

    CONTACT US

    [SB5100-DO-27] SB5100/SB5150/SB520/SB580 ASEMI Schottky diode

    SB5100 electrical parameters: maximum forward average current 5A; maximum reverse peak voltage 100V

    SB5100 packaging method: 1.2Kpcs/box, 12Kpcs/carton

    The diodes is widely used in: power supplies, chargers, adapters, LED lighting, home appliances, civil and industrial equipment and other products

    Welcome to apply for free sample test.
