[SB3100-DO-27] SB3100/SB3150/SB3200/SB380 ASEMI Schottky diode
  • TypeSB3100

    BrandASEMI

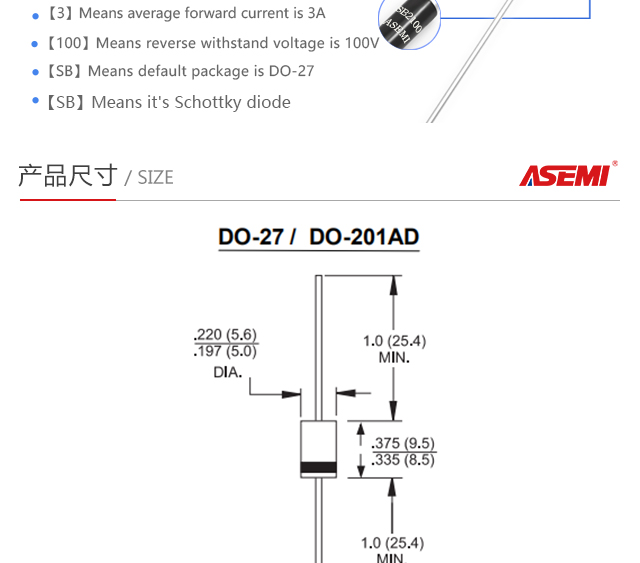

    PackageDO-27

    FeatureSmall current, Axial type

  • lo VRRM Chip Material Chip Number lr Temperature
    3A 20V~200V GPP Silicon 1 10mA -65~+150℃
    VF IFSM Chip Size Lead Number Trr Package
    0.55~0.95V 80A 55MIL 2 5ns 1.2Kpcs/box

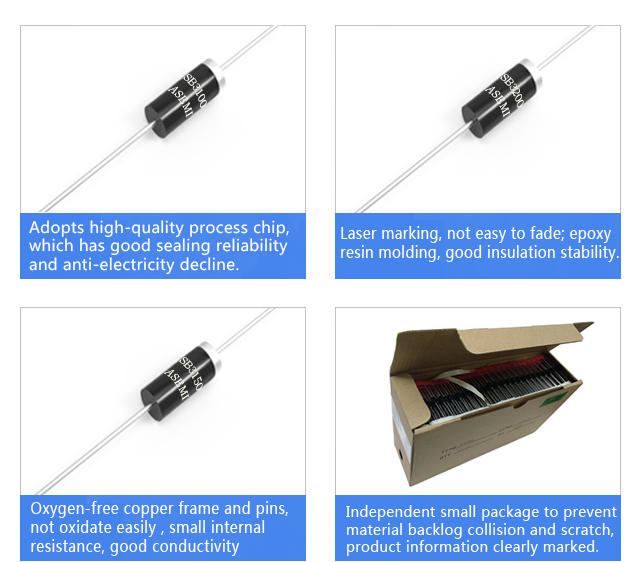

    Adopts high-quality process chip, which has good sealing reliability and prevents electrical degradation

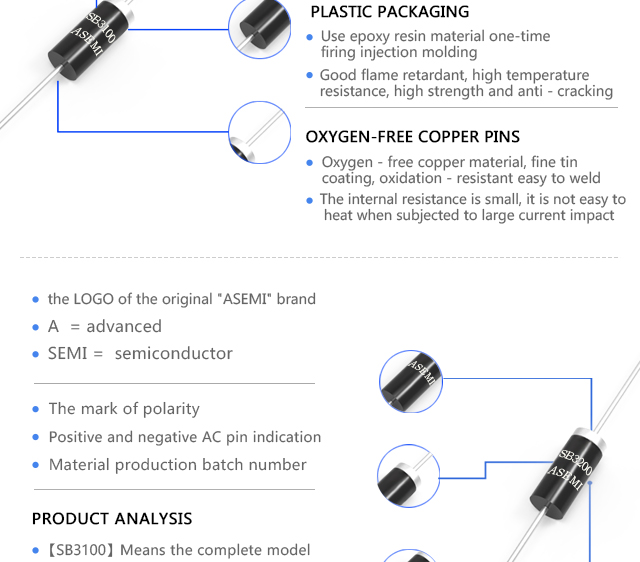

    Silkscreen marking is not easy to fade and prevent refurbishment; epoxy resin grease has good stability

    Oxygen-free copper frame pins, bright tin plating to prevent oxidation, small internal resistance, good conductivity

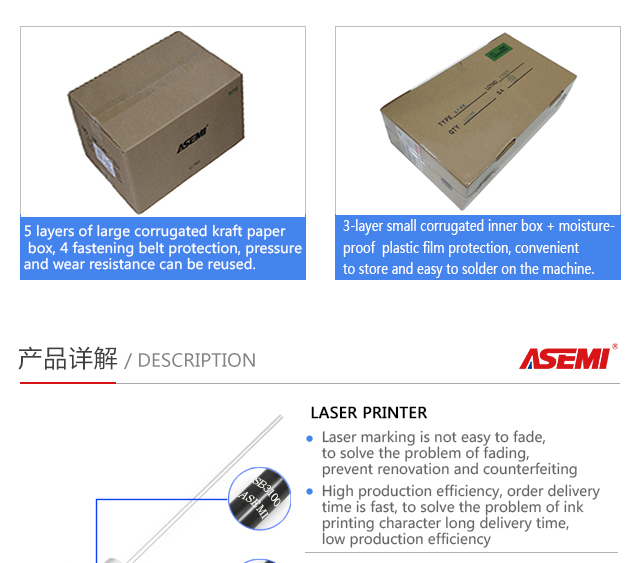

    Adopt 5 layers of large corrugated kraft paper box, 4 layers of restraint belt protection

    The inner box is protected by moisture-proof plastic film, which is convenient for long-term storage in the warehouse

    Purchase:

    400-9929-667

    VIDEO

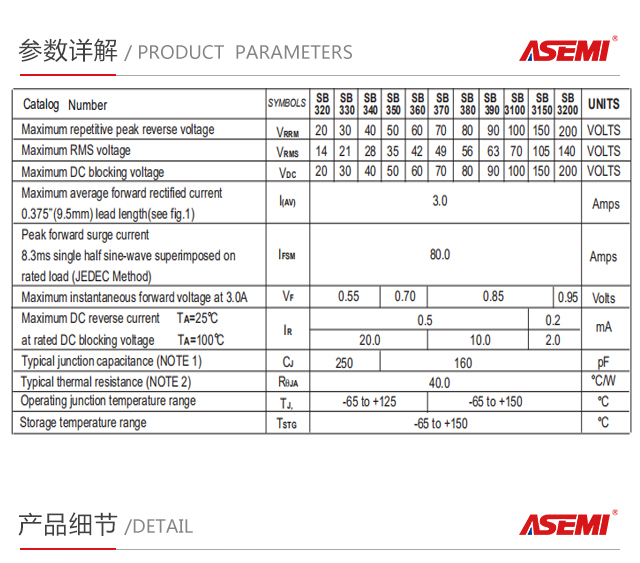

    PRODUCT PARAMETERS

    SB3100_01SB3100_02SB3100_03SB3100_04SB3100_05SB3100_06SB3100_07SB3100_08SB3100_09SB3100_10
  • lo

    3A
  • VRRM

    20V~200V
  • IFSM

    80A
  • lr

    10mA
  • Temperature

    -65~+150℃
  • PARTNER

    CONTACT US

    [SB3100-DO-27] SB3100/SB3150/SB3200/SB380 ASEMI Schottky diode

    SB3100 electrical parameters: maximum forward average current 3A; maximum reverse peak voltage 100V

    SB3100 packaging method: 1.2Kpcs/box, 12Kpcs/carton

    The diodes is widely used in: power supplies, chargers, adapters, LED lighting, home appliances, civil and industrial equipment and other products

    Welcome to apply for free sample test.
