[SB2100-DO-15] SB2200/SB2150/SB280/SB260 ASEMIS Schottky diode
  • TypeSB2100

    BrandASEMI

    PackageDO-15

    FeatureSmall current, schottky diode

  • lo VRRM Chip Material Chip Number lr Temperature
    2A 20V~200V GPP Silicon 1 5uA -65~+150℃
    VF IFSM Chip Size Lead Number Trr Package
    0.55V~0.95V 60A 45MIL 2 2ns 3Kpcs/box 30Kpcs/ctn

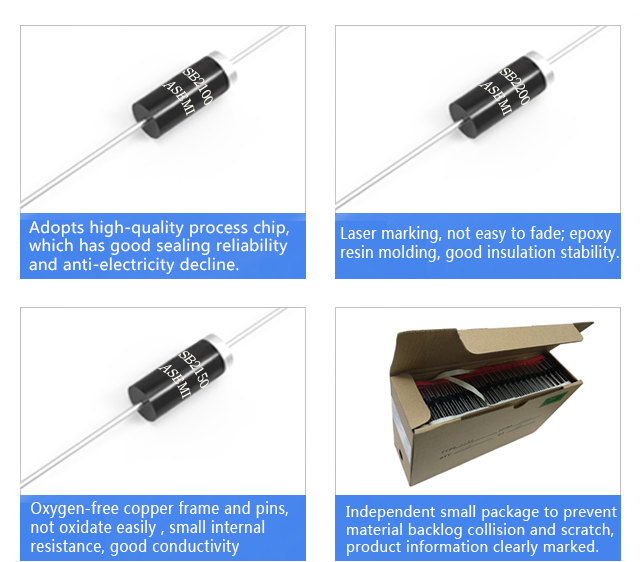

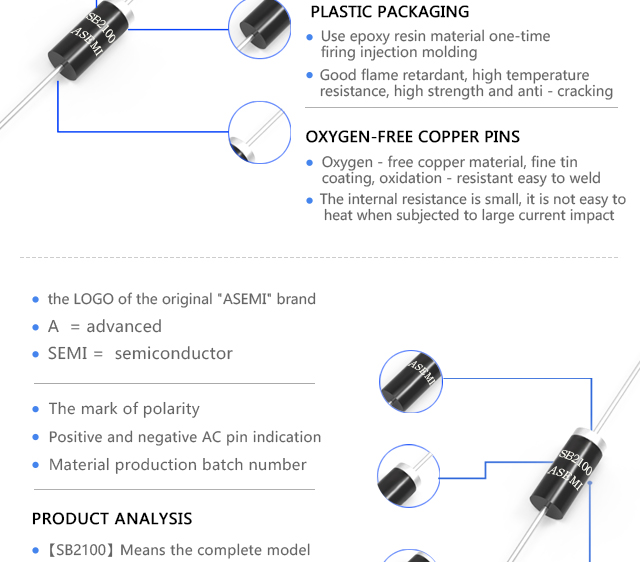

    Adopts high-quality process chip, which has good sealing reliability and prevents electrical degradation

    Silkscreen marking is not easy to fade and prevent refurbishment; epoxy resin grease has good stability

    Oxygen-free copper frame pins, bright tin plating to prevent oxidation, small internal resistance, good conductivity

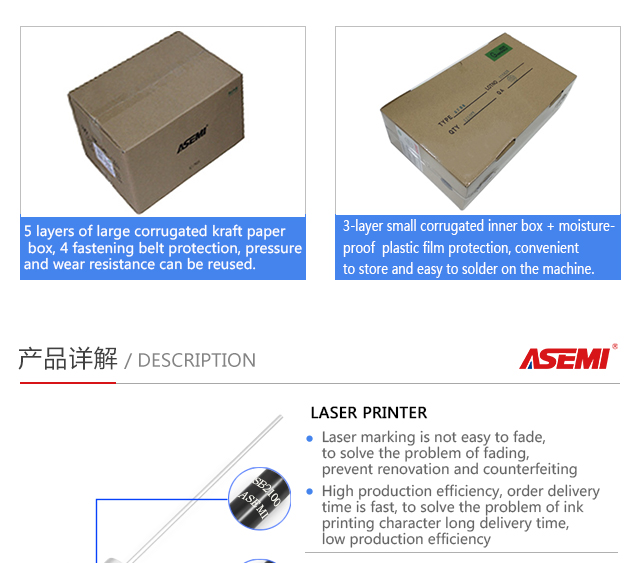

    Adopt 5 layers of large corrugated kraft paper box, 4 layers of restraint belt protection

    The inner box is protected by moisture-proof plastic film, which is convenient for long-term storage in the warehouse

    Purchase:

    400-9929-667

    VIDEO

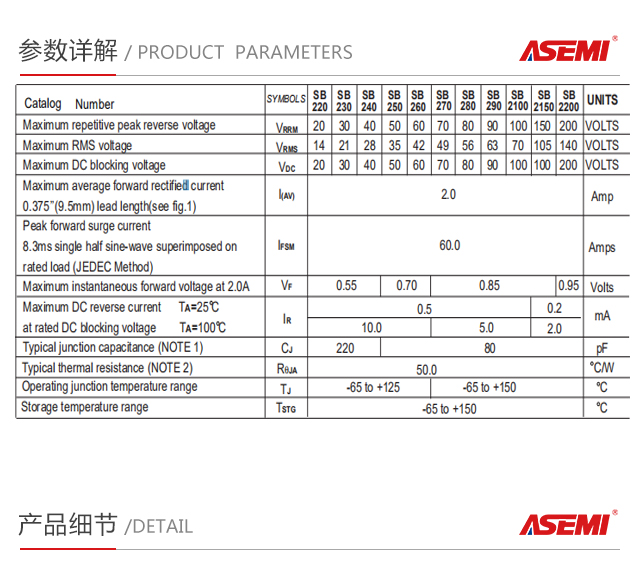

    PRODUCT PARAMETERS

    SB2100_01SB2100_02SB2100_03SB2100_04SB2100_05SB2100_06SB2100_07SB2100_08SB2100_09SB2100_10
  • lo

    2A
  • VRRM

    20V~200V
  • IFSM

    60A
  • lr

    5uA
  • Temperature

    -65~+150℃
  • PARTNER

    CONTACT US

    [SB2100-DO-15] SB2200/SB2150/SB280/SB260 ASEMIS Schottky diode

    SB2100 electrical parameters: maximum forward average current 2A; maximum reverse peak voltage 100V

    SB2100 packaging method: 3Kpcs/box, 30Kpcs/carton

    The diodes is widely used in: power supplies, chargers, adapters, LED lighting, home appliances, civil and industrial equipment and other products

    Welcome to apply for free sample test.
