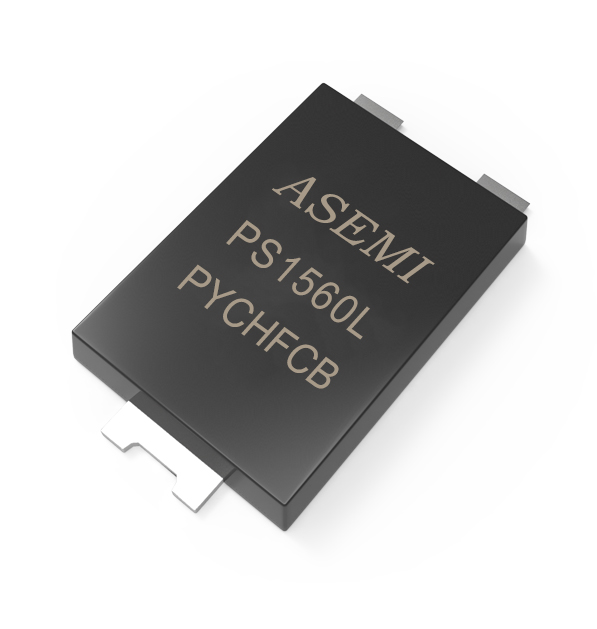

PS1545L,PS1560L,PS15100L, ASEMI Low VF Diode
  • TypePS1545L

    BrandASEMI

    PackageTO-277

    FeatureLOW VF

  • lo VRRM Chip Material Chip Number lr Temperature
    15A 40V~100V SI 1 ( separated ) 20ua -40℃~170℃
    VF IFSM Chip Size Lead Number Trr Package
    0.40V~0.66V 125A 120mil 3 5ns 5Kpcs/reel. 10Kpcs/box

    Adopts high-quality process chip, which has good sealing reliability and prevents electrical degradation

    Laser marking is not easy to fade and prevent refurbishment; epoxy resin grease has good stability

    Oxygen-free copper frame pins, bright tin plating to prevent oxidation, small internal resistance, good conductivity

    Adopt 5 layers of large corrugated kraft paper box, 4 layers of restraint belt protection

    The inner box is protected by moisture-proof plastic film, which is convenient for long-term storage in the warehouse

    Purchase:

    400-9929-667

    VIDEO

    PRODUCT PARAMETERS

    Video content details:

    ASEMI brand PS1545L,TO-277 series,it adopts high-quality process chip with high stability, highly consistent product dispersion etc features.This product is ASEMI original product, the quality is stable and reliable.Welcome to apply for free sample test.

    Video content details:

    ASEMI brand PS1545L,TO-277 series,Environmentally friendly imported chip, export quality, GPP chip, environmentally friendly and reliable, high stability, highly consistent product dispersion. This product original packing genuine product, the quality guarantee high stability and the reliability.Welcome to apply for free sample test.

    PS1045L -规格书

    DETAIL

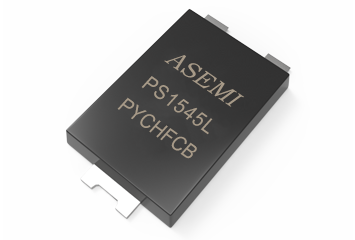

    PS1545L 6小图1

    Adopts high-quality process chip, which has good sealing reliability and anti-electricity decline.


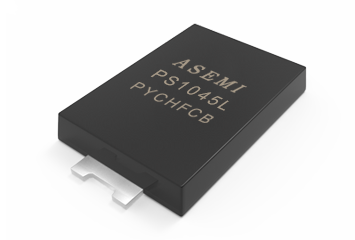

    PS1045L 6小图 2

    Laser marking, not easy to fade; epoxy resin molding, good insulation stability.

    ASEMI 277 6小图 3

    The frame pins are made of oxygen-free copper material, with small internal resistance, good conductivity.

    ASEMI 277 6小图 4

    Independent small package to prevent material backlog collision and scratch, product information clearly marked.

    ASEMI 277 6小图 5

    5 layers of large corrugated kraft paper box, 4 fastening belt protection, pressure and wear resistance can be reused.

    ASEMI 277 6小图 6

    3-layer small corrugated inner box + moisture-proof plastic film protection, convenient to store and easy to solder on the machine.

    DESCRIPTION

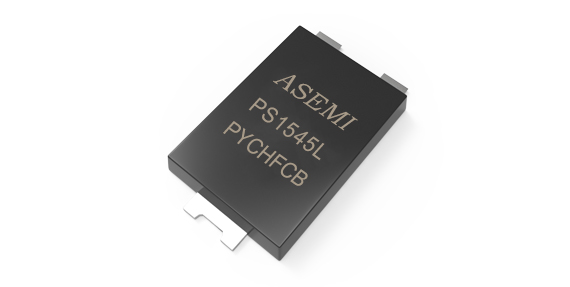

    PS1545L 详解1
    PS1545L 详解2

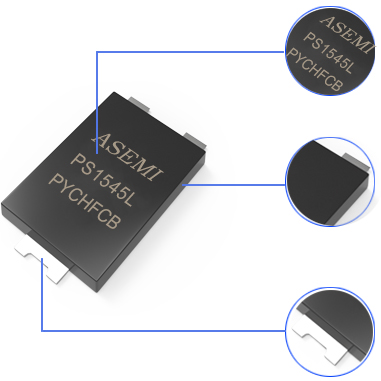

    GREEN LASER PRINTER

    laser marking is not easy to fade, to solve the ink screen printing easy fade

    high production efficiency of laser marking, short delivery time, solve the problem of long delivery time and low efficiency of ink printing

    PLASTIC PACKAGING

    disposable injection molding with epoxy resin material

    good flame retardant performance, high strength, high temperature resistance

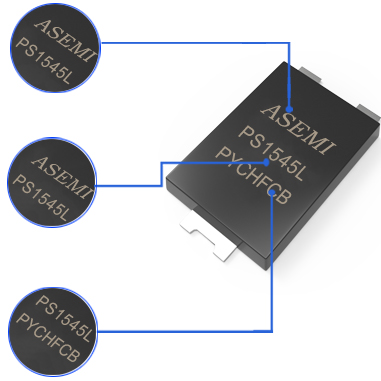

    OXYGEN-FREE COPPER PINS

    oxygen free copper, good electrical conductivity

    pin thickening design, thickness up to 0.56mm, can work for a long time without heating

    the LOGO of the original "ASEMI" brand

    A = advanced

    SEMI = semiconductor

    MND20 production batch number, each batch is different

    The left end is the positive input end

    Both feet at the right end and the output end are equipotential

    PRODUCT ANALYSIS

    [PS1545L] represents the complete model of the product

    [PSL] stands for the V version of the low vf schottky diode

    [15] means its forward current is 15a

    [45] represents its reverse withstand voltage is 45V

    [    ] represents it's belong to TO-277 package

    SIZE

    ASEMI 277 尺寸图 1
  • Body Height :

    5.3mm
  • Body Width :

    4.0mm
  • Lead Length :

    0.56mm
  • ASEMI 277 尺寸图 2
  • Body Thickness:

    1.1mm
  • Lead Spacing:

    1.84mm
  • Lead Thickness:

    0.23mm

  • PROCESS

    Product

    stability

    Product stability

    Adopt high-quality process chip, the product continues to be stable

    Accurate product quantity

    Accurate product quantity

    Strict packaging inspection procedures to ensure that the product quantity is accurate, packaging without damage

    One-step injection molding

    One-step injection molding

    Automated equipment supports injection molding in one step

    Passed 6 quality checks

    Passed 6 quality
    checks

    12 parameters such as Vb, Io, If, Vf, and Ir are detected through 6 channels, and ΔV is controlled within 80V to improve the consistency and reliability of 4 chips.

    Interpersonal interaction

    Interpersonal interaction

    Reinforcement, cutting, separation, interpersonal interaction process

    PRODUCT PK

    277 PK 芯片1 277 PK 芯片2

    ASEMI adopts 120mil high-quality large chip, with good parameter consistency and stable and efficient output

    Inferior chip easy to heat seriously after long-time working , and will damaged the machine

    PS1545L PK1 10V45 PK2

    ASEMI uses laser marking is not easy to fade and prevent renovation

    Ordinary ink screen printing is easy to fade, pollute the circuit board, there are bad problems such as malicious refurbishment

    277 PK 引脚1 277 PK 引脚2

    ASEMI uses high-purity oxygen-free copper frame and pins, with good electrical conductivity and high strength of thickened pins

    Ordinary steel is easy to be oxidize and virtual weld, the strength is low then easy to break

    PK7 PK8

    The ASEMI factory uses Jianding and Guankui high-precision equipment to test 18 key electrical data simultaneously

    Other equipment has low precision, the electrical parameter detection is not strict, and the quality consistency is poor

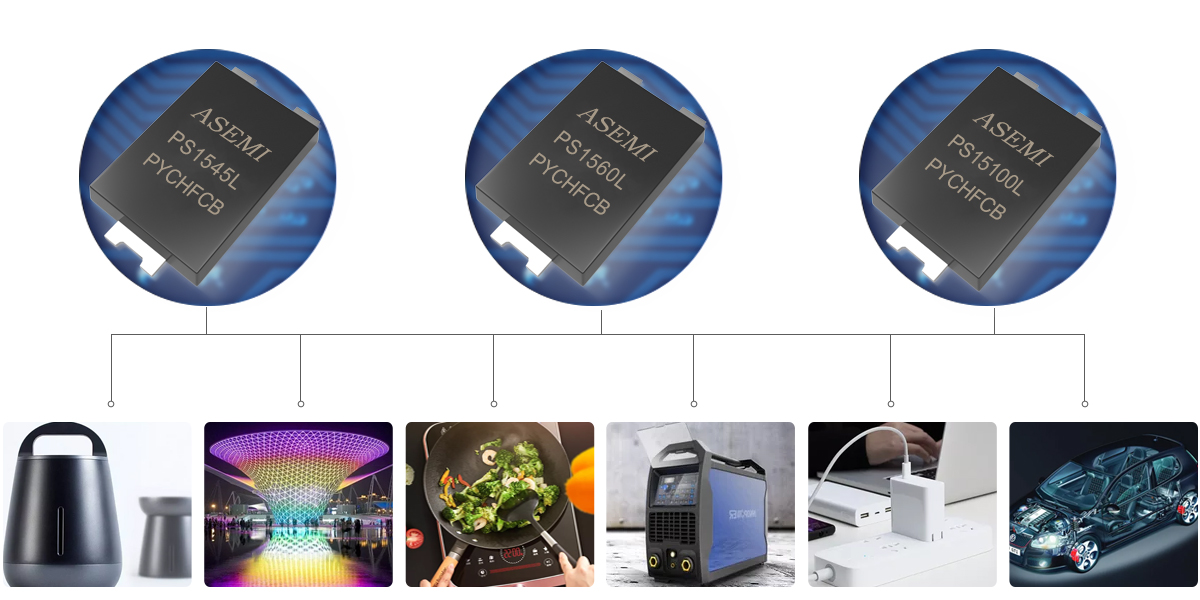

    APPLICATION

    Industrial equipment

    Led lamps and lanterns

    Induction cooker

    Electric welding machine

    Power adapter of laptop

    Automobile industry

    ps1545l 应用领域
  • lo

    15A
  • VRRM

    40V~100V
  • IFSM

    125A
  • lr

    20ua
  • Temperature

    -40℃~170℃
  • PARTNER

    CONTACT US

    PS1545L,PS1560L,PS15100L, ASEMI Low VF Diode

    PS1545L electrical parameters: maximum forward average current 15A; maximum reverse peak voltage 45V

    PS1545L packaging method: 5Kpcs/reel. 10Kpcs/box. 50Kpcs/ctn

    The diode is widely used in: power supplies, chargers, adapters, LED lighting, home appliances, civil and industrial equipment and other products

    Welcome to apply for free sample test.
