MBR10200FAC,MBR10150FAC,MBR10100FAC,MBR1060FAC,MBR1040FAC

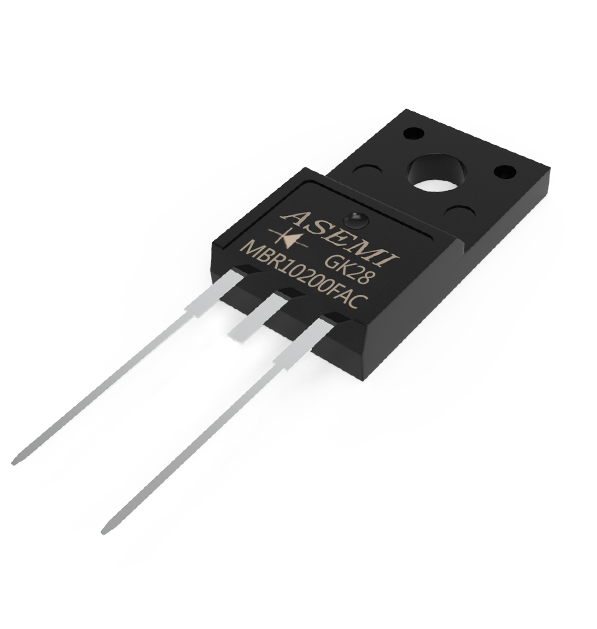

  • TypeMBR10200FAC

    BrandASEMI

    PackageITO-220AC

    FeatureHigh power

  • lo VRRM Chip Material Chip Number lr Temperature
    10A 40V~200V Metal & silicon chip 1 20ua -50℃~150℃
    VF IFSM Chip Size Lead Number Trr Package
    0.54V~0.92V 150A 95MIL 3 5ns 1Kpcs/box. 5Kpcs/ctn

    Adopts high-quality process chip, which has good sealing reliability and prevents electrical degradation

    Laser marking is not easy to fade and prevent refurbishment; epoxy resin grease has good stability

    Oxygen-free copper frame pins, bright tin plating to prevent oxidation, small internal resistance, good conductivity

    Adopt 5 layers of large corrugated kraft paper box, 4 layers of restraint belt protection

    The inner box is protected by moisture-proof plastic film, which is convenient for long-term storage in the warehouse

    Purchase:

    400-9929-667

    VIDEO

    PRODUCT PARAMETERS

    Video content details:

    ASEMI brand MBRF10200AC,ITO-220AC series,it adopts high-quality process chip with high stability, highly consistent product dispersion etc features.This product is ASEMI original product, the quality is stable and reliable.Welcome to apply for free sample test.

    Video content details:

    ASEMI brand MBRF10200AC,ITO-220AC series,it adopts high-quality process chip with high stability, highly consistent product dispersion etc features.This product is ASEMI original product, the quality is stable and reliable.Welcome to apply for free sample test.

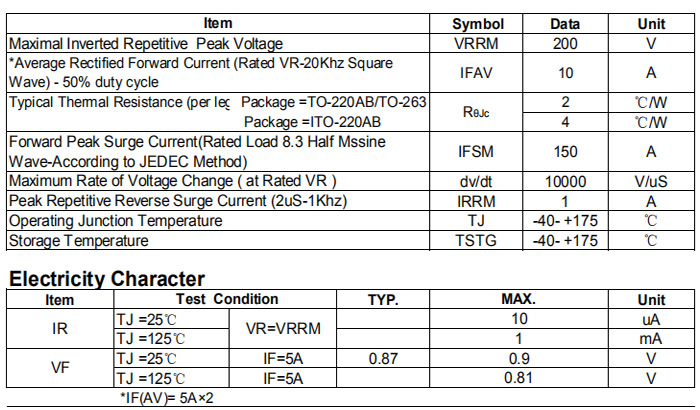

    MBR10200CT-规格书

    DETAIL

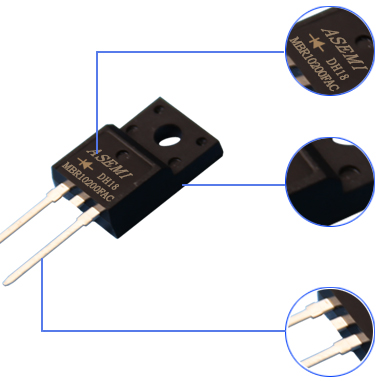

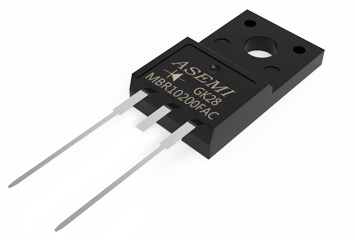

    MBR10200FAC 6小图 1

    Adopts high-quality process chip, which has good sealing reliability and anti-electricity decline.


    MBR10200FAC 6小图 2

    Laser marking, not easy to fade; epoxy resin molding, good insulation stability.

    ASEMI 220AC 6小图 3

    The frame pins are made of oxygen-free copper material, with small internal resistance, good conductivity.

    SBT30100VCT4

    Independent small package to prevent material backlog collision and scratch, product information clearly marked.

    SBT30100VCT5

    5 layers of large corrugated kraft paper box, 4 fastening belt protection, pressure and wear resistance can be reused.

    SBT30100VCT6

    3-layer small corrugated inner box + moisture-proof plastic film protection, convenient to store and easy to solder on the machine.

    DESCRIPTION

    MBR10200FAC 详解1
    MBR10200FAC 详解2
    GREEN LASER PRINTER

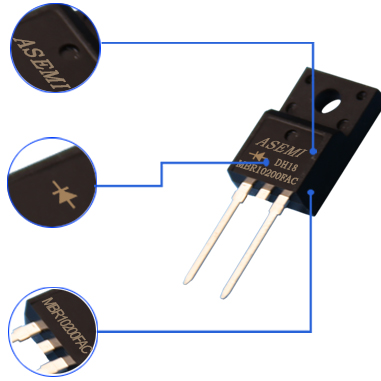

    laser marking is not easy to fade, to solve the ink screen printing easy fade

    high production efficiency of laser marking, short delivery time, solve the problem of long delivery time and low efficiency of ink printing

    PLASTIC PACKAGING

    disposable injection molding with epoxy resin material

    good flame retardant performance, high strength, high temperature resistance

    OXYGEN-FREE COPPER PINS

    oxygen free copper, good electrical conductivity

    pin thickening design, can work for a long time without heating

    the LOGO of the original "ASEMI" brand

    A = advanced

    SEMI = semiconductor

    the figure shows the symbol of common cathod diode

    Represents input at the right end and output at the left end

    Means that there is one diode integrated inside

    PRODUCT ANALYSIS

    [MBR10200FAC] represents the complete model of the product

    [MBR] stands for the schottky diode

    [10] means its forward current is 10A

    [200] represents its reverse withstand voltage is 200V

    [FAC] represents it's belong to ITO-220AC plastic package

    SIZE

    ASEMI 220AC 尺寸图1
  • Overall Height :

    28.60mm
  • Body Width :

    10.21mm
  • Lead Length :

    13.60mm
  • Positioning Hole Height:

    16.00mm
  • ASEMI 220AC 尺寸图2
  • Body Thickness:

    4.57mm
  • Lead Spacing:

    5.08mm
  • Lead Thickness:

    0.41mm

  • PROCESS

    Product

    stability

    Product stability

    Adopt high-quality proces  chip, the product continues to be stable

    Accurate product quantity

    Accurate product quantity

    Strict packaging inspection procedures to ensure that the product quantity is accurate, packaging without damage

    One-step injection molding

    One-step injection molding

    Automated equipment supports injection molding in one step

    Passed 6 quality checks

    Passed 6 quality
    checks

    12 parameters such as Vb, Io, If, Vf, and Ir are detected through 6 channels, and ΔV is controlled within 80V to improve the consistency and reliability of 4 chips.

    Interpersonal interaction

    Interpersonal interaction

    Reinforcement, cutting, separation,  interpersonal interaction process

    PRODUCT PK

    ASEMI AC 芯片1 ASEMI AC 芯片2

    ASEMI adopts 95mil high-quality large chip, with good parameter consistency and stable and efficient output

    Use inferior 82mil small chip,Inferior chip easy to heat seriously after long-time working , and will damaged the machine

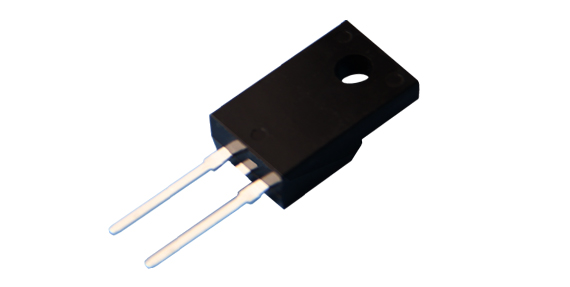

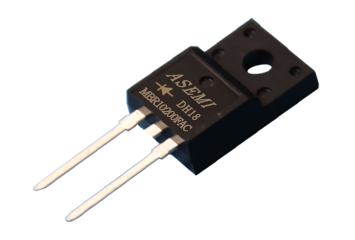

    MBR10200FAC PK 1 ASEMI 220FAC PK 3

    ASEMI uses laser marking is not easy to fade and prevent renovation

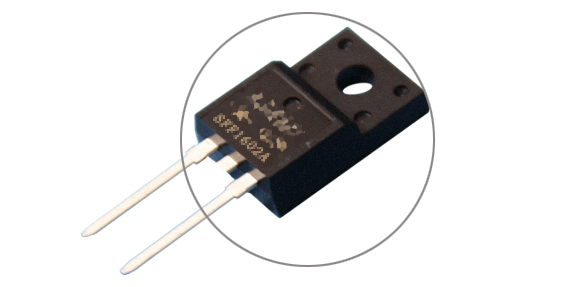

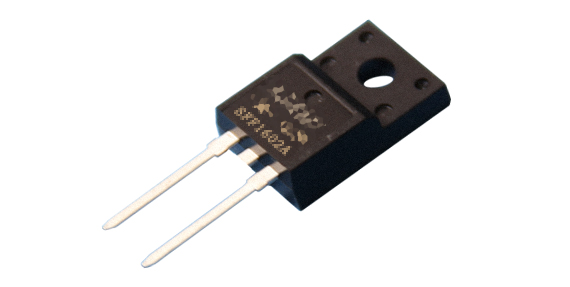

    Ordinary ink screen printing is easy to fade, pollute the circuit board, there are bad problems such as malicious refurbishment

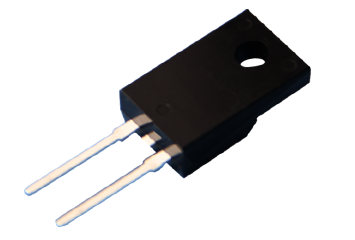

    ASEMI 220FAC PK 2 ASEMI 220FAC PK 4

    ASEMI uses high-purity oxygen-free copper frame and pins, with good electrical conductivity and high strength of thickened pins

    Ordinary pins is easy to be oxidize and virtual weld, the strength is low then easy to break

    PK7 PK8

    The ASEMI factory uses Jianding and Guankui high-precision equipment to test 18 key electrical data simultaneously

    Other equipment has low precision, the electrical parameter detection is not strict, and the quality consistency is poor

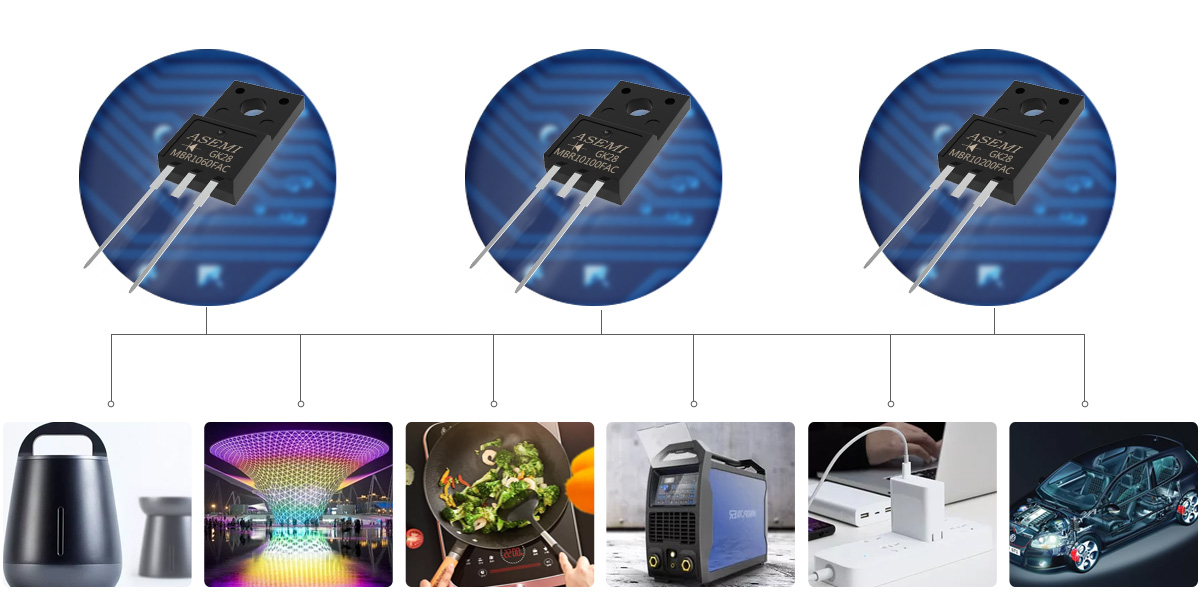

    APPLICATION

    Industrial equipment

    Led lamps and lanterns

    Induction cooker

    Electric welding machine

    Power adapter of laptop

    Automobile industry

    MBR10200FAC-应用领域
  • lo

    10A
  • VRRM

    40V~200V
  • IFSM

    150A
  • lr

    20ua
  • Temperature

    -50℃~150℃
  • PARTNER

    CONTACT US

    MBR10200FAC,MBR10150FAC,MBR10100FAC,MBR1060FAC,MBR1040FAC

    MBR10200FAC electrical parameters: maximum forward average current 10A; maximum reverse peak voltage 200V

    MBR10200FAC packaging method: 1Kpcs/box. 5Kpcs/ctn

    The diode is widely used in: power supplies, chargers, adapters, LED lighting, home appliances, civil and industrial equipment and other products

    Welcome to apply for free sample test.
