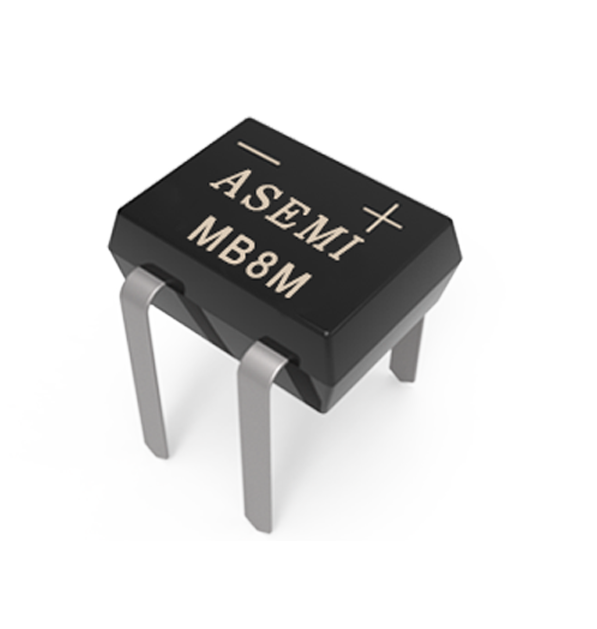

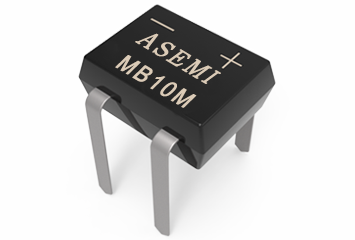

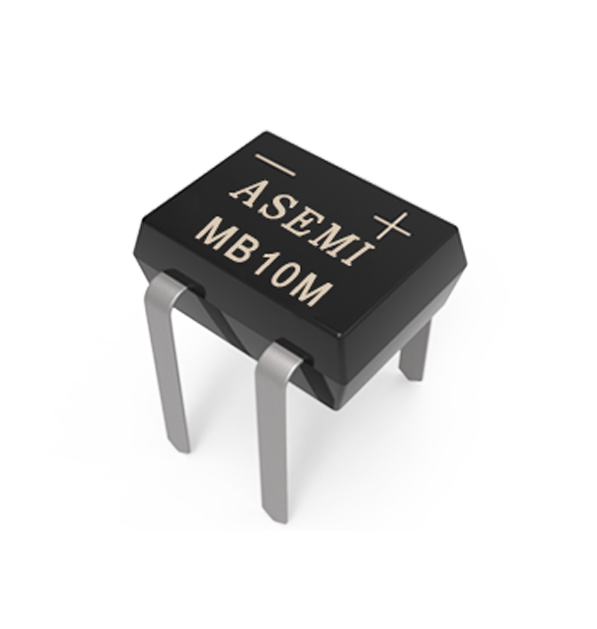

MB10M,MB8M,MB6M,MB4M,MB2M ASEMI DIP Mini Bridge Rectifier
  • TypeMB10M

    BrandASEMI

    PackageMBM-4

    FeatureDIP Package

  • lo VRRM Chip Material Chip Number lr Temperature
    1A 50V-1000V GPP Silicon 4 ≤10ua -50℃~150℃
    VF IFSM Chip Size Lead Number Trr Package
    1V 35A 50MIL 4 >2000ns 5KPCS/BOX, 20KPCS/CTN

    Adopts glass-encapsulated GPP process chip, which has good sealing reliability and prevents electrical degradation

    Laser marking is not easy to fade and prevent refurbishment; epoxy resin grease has good stability

    Oxygen-free copper frame pins, bright tin plating to prevent oxidation, small internal resistance, good conductivity

    Adopt 5 layers of large corrugated kraft paper box, 4 layers of restraint belt protection

    The inner box is protected by moisture-proof plastic film, which is convenient for long-term storage in the warehouse

    Purchase:

    400-9929-667

    VIDEO

    PRODUCT PARAMETERS

    Video content details:

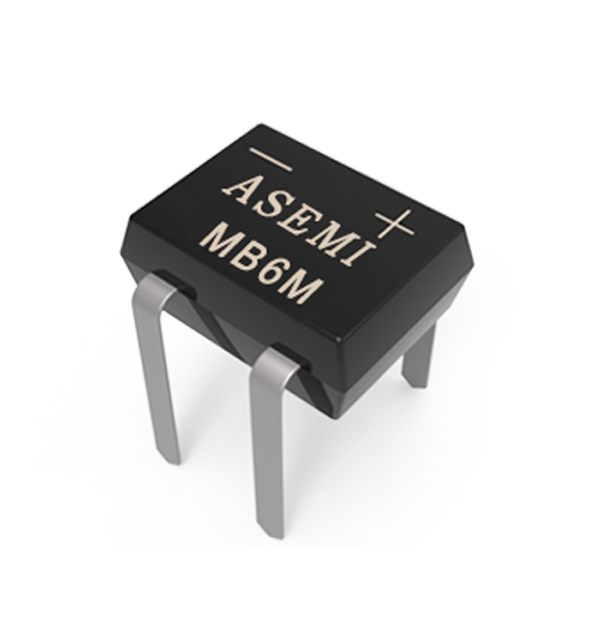

    ASEMI brand MB6M,MBM-4 series,it adopts glass-encapsulated GPP process chip with high stability, highly consistent product dispersion etc features.This product is ASEMI original product, the quality is stable and reliable.Welcome to apply for free sample test.

    Video content details:

    ASEMI brand MB10M,MBM-4 series,it adopts glass-encapsulated GPP process chip with high stability, highly consistent product dispersion etc features.This product is ASEMI original product, the quality is stable and reliable.Welcome to apply for free sample test.

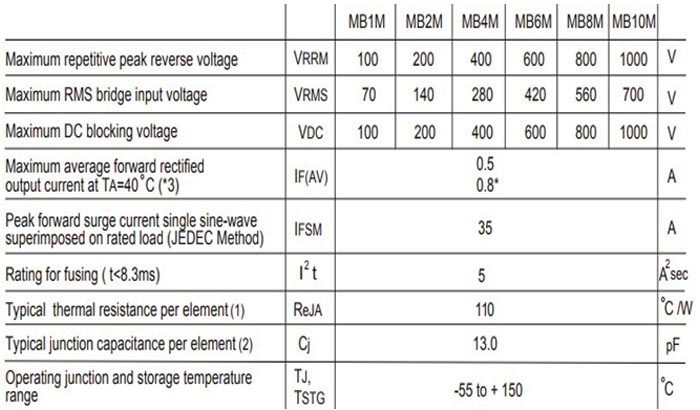

    MB10M 产品规格书

    DETAIL

    MB10M 缩1

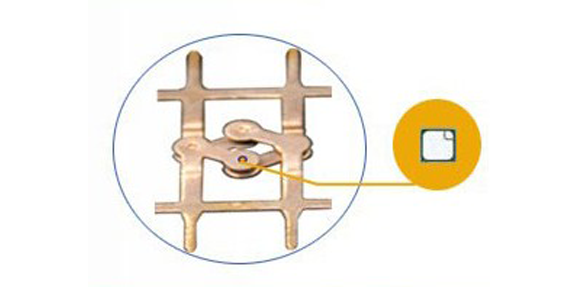

    Adopts glass-encapsulated GPP process chip, which has good sealing reliability and anti-electricity decline.


    MB10M 缩1

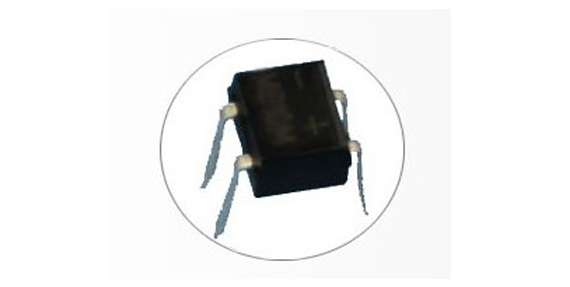

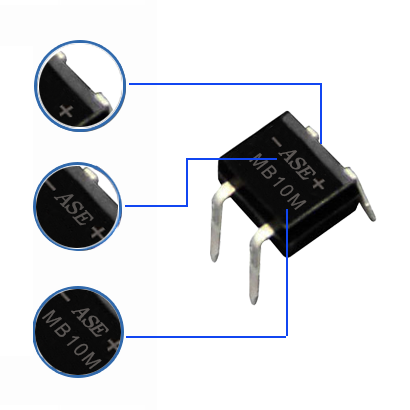

    Laser marking, not easy to fade; epoxy resin molding, good insulation stability.

    MB10M 缩2

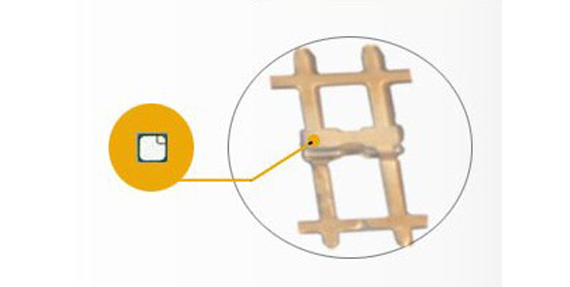

    The frame pins are made of oxygen-free copper material, with small internal resistance, good conductivity.

    MB10M 缩4

    Independent small package to prevent material backlog collision and scratch, product information clearly marked.

    MB10M 缩5

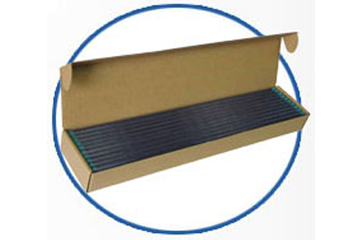

    5 layers of large corrugated kraft paper box, 4 fastening belt protection, pressure and wear resistance can be reused.

    MB10M 缩3

    3-layer small corrugated inner box + moisture-proof plastic film protection, convenient to store and easy to solder on the machine.

    DESCRIPTION

    MB10M 详1
    MB10M 详2

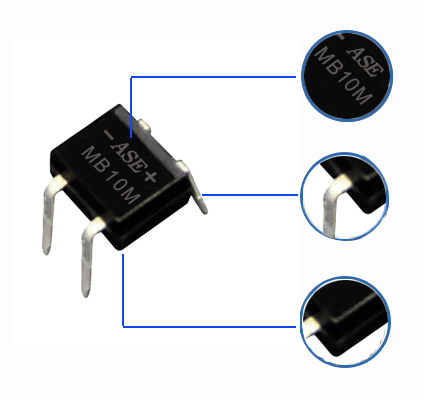

    GREEN LASER PRINTER

    laser marking is not easy to fade, to solve the ink screen printing easy fade

    high production efficiency of laser marking, short delivery time, solve the problem of long delivery time and low efficiency of ink printing

    PLASTIC PACKAGING

    disposable injection molding with epoxy resin material

    good flame retardant performance, high strength, high temperature resistance

    OXYGEN-FREE COPPER PINS

    oxygen free copper, good electrical conductivity

    pin thickening design, thickness up to 0.25mm, can work for a long time without heating

    the LOGO of the original "ASEMI" brand

    A = advanced

    SEMI = semiconductor

    【UL US safety certification LOGO 】

    【Safety experiment and appraisal authority】

    【 Safety inspection product yield prompt 】

    PRODUCT ANALYSIS

    [MB10M] represents the complete model of the product

    [MBM] stands for the encapsulation of this product.

    [    ] means its forward current is 1.0a

    [10] represents its reverse withstand voltage is 1000V

    [M] represents it's belong to DIP package

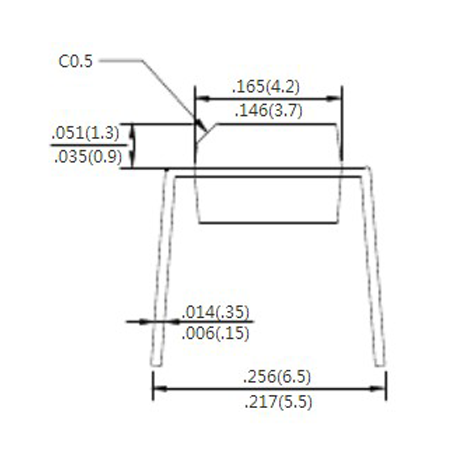

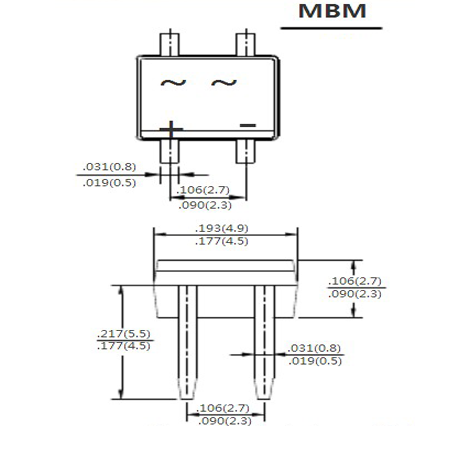

    SIZE

    MB10M 产品尺寸图1
  • Lead Spacing :

    2.5mm
  • Body Length :

    4.7mm
  • Body Height :

    2.5mm
  • Body Width:

    4.0mm
  • MB10M 产品尺寸图2
  • Lead Thickness :

    0.25mm
  • Body Width:

    4.0mm
  • Body Length:

    4.7mm

  • PROCESS

    Product

    stability

    Product stability

    Adopt  GPP  chip, the product continues to be stable

    Accurate product quantity

    Accurate product quantity

    Strict packaging inspection procedures to ensure that the product quantity is accurate, packaging without damage

    One-step injection molding

    One-step injection molding

    Automated equipment supports injection molding in one step

    Passed 6 quality checks

    Passed 6 quality
    checks

    12 parameters such as Vb, Io, If, Vf, and Ir are detected through 6 channels, and ΔV is controlled within 80V to improve the consistency and reliability of 4 chips.

    Interpersonal interaction

    Interpersonal interaction

    Reinforcement, cutting, separation,  interpersonal interaction process

    PRODUCT PK

    MB6M PK 芯1 MB6M PK 芯2

    ASEMI adopts 50mil high-quality large chip, with good parameter consistency and stable and efficient output

    Inferior 42mil chip easy to heat seriously after long-time working , and will damaged the machine.

    MB10M 打1 MB10M 打2

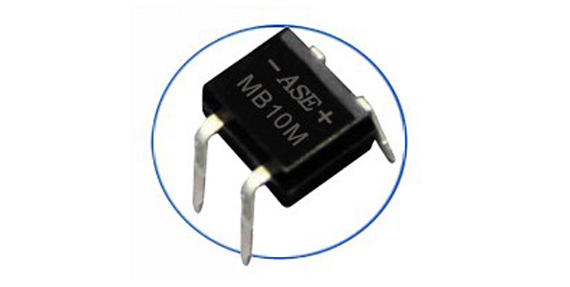

    ASEMI uses laser marking is not easy to fade and prevents refurbishment
    Ordinary ink screen printing is easy to fade, pollute the circuit board, there are bad problems such as malicious refurbishment

    MB10M 脚1 MB10M 脚2

    ASEMI uses oxygen-free copper material, good conductivity, tinned layer, simple storage, anti-oxidation and easy welding
    Ordinary copper frame material or iron pins, easy to cause pin oxidation, easy to de-soldering when on the machine, large impedance

    MB10M PK 设备1 MB10M PK 设备2

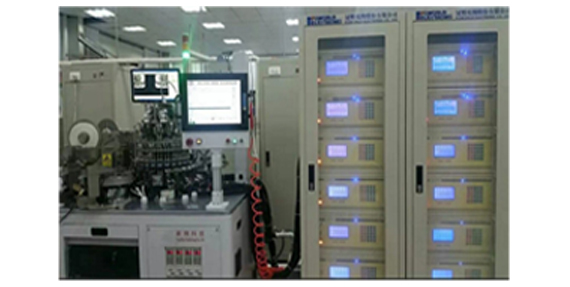

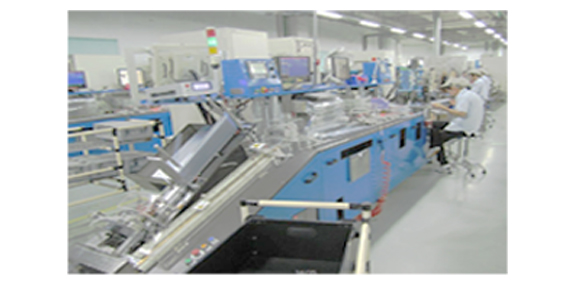

    The ASEMI factory uses Jianding and Guankui high-precision equipment to test 18 key electrical data simultaneously

    Ordinary production equipment has low accuracy, less strict electrical parameter detection, uneven quality and poor consistency

    APPLICATION

    Industrial equipment

    Led lamps and lanterns

    Induction cooker

    Electric welding machine

    Power adapter of laptop

    Automobile industry

    MB10M 应用领域
  • lo

    1A
  • VRRM

    50V-1000V
  • IFSM

    35A
  • lr

    ≤10ua
  • Temperature

    -50℃~150℃
  • PARTNER

    CONTACT US

    MB10M,MB8M,MB6M,MB4M,MB2M ASEMI DIP Mini Bridge Rectifier

    MB10M electrical parameters: maximum forward average current 1A; maximum reverse peak voltage 1000V

    MB10M packaging method: 5Kpcs/box, 20Kpcs/ctn

    The bridge rectifier is widely used in: power supplies, chargers, adapters, LED lighting, home appliances, civil and industrial equipment and other products

    Welcome to apply for free sample test.
