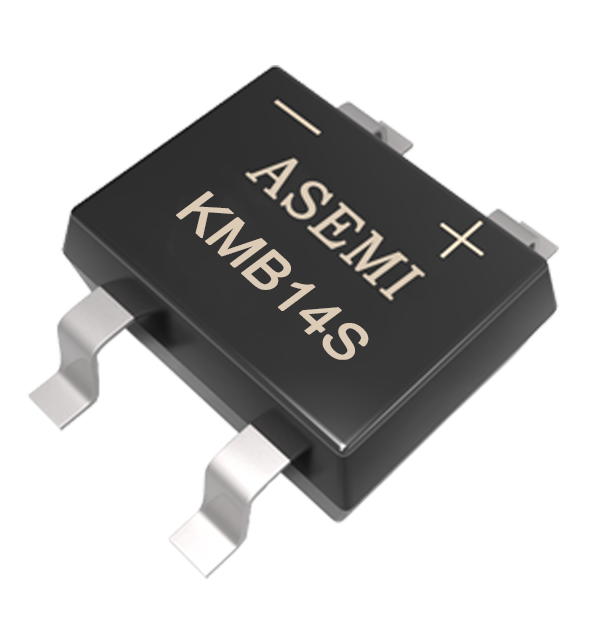

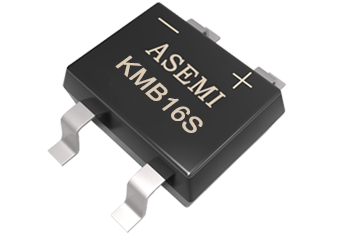

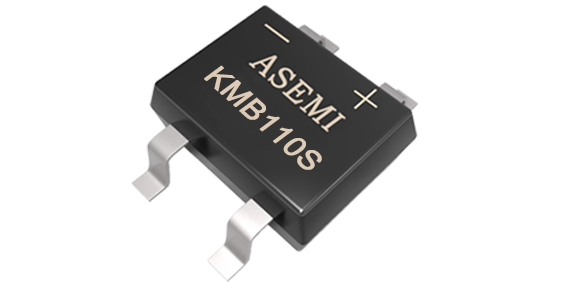

KMB110S/KMB14S/KMB16S,ASEMI SMD schottky rectifier bridge
  • TypeKMB110S

    BrandASEMI

    PackageKMBS

    FeatureSMD rectifier bridge

  • lo VRRM Chip Material Chip Number lr Temperature
    1A 20V~100V GPP Silicon 4 5uA -55~+150℃
    VF IFSM Chip Size Lead Number Trr Package
    0.5V~0.85V 30A 50MIL 4 500ns 5Kpcs/T&R 10Kpcs/box

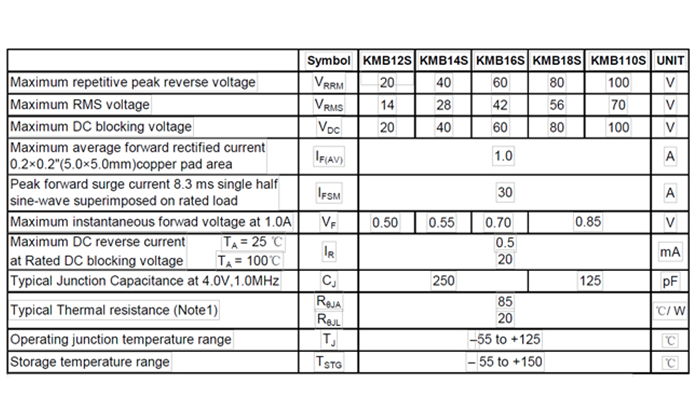

    Rectifier bridge KMB110S electrical parameters 1A 20V~100V

    Laser marking, not easily fade, vinyl material:epoxy resin material, good encapsulation stability

    The pin is oxygen-free copper with good resistance to bending, oxidation and good conduction

    KMB110S :50Kpcs/CTN, material: kraft paper, resistant to pressure, abrasion and impact

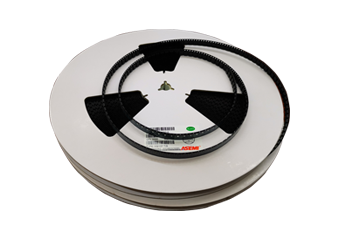

    5Kpcs/T&R ,10Kpcs/box, anti-static PE pipe, anti-static kraft paper box, easy to preserve, recyclable.

    Purchase:

    400-9929-667

    VIDEO

    PRODUCT PARAMETERS

    Video content details:

    ASEMI brand KMB110S,KMBS series,it adopts GPP chip with high stability, highly consistent product dispersion etc features.This product is ASEMI original product, the quality is stable and reliable.Welcome to apply for free sample test.

    Video content details:

    ASEMI brand KMB110S,KMBS series,it adopts GPP chip with high stability, highly consistent product dispersion etc features.This product is ASEMI original product, the quality is stable and reliable.Welcome to apply for free sample test.

    1、规格书-恢复的

    DETAIL

    2、6小图 1

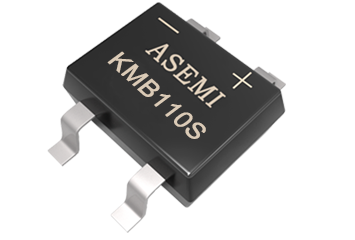

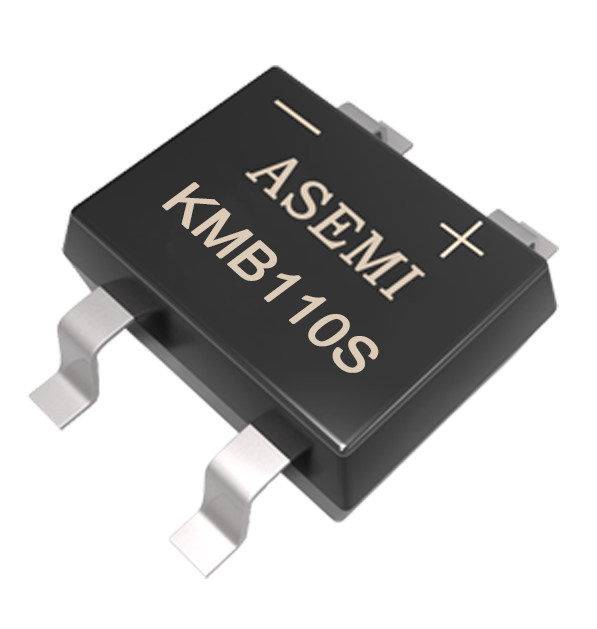

    SMD rectifier bridge KMB110S

    electrical parameters 1A 100V

    2、6小图 2

    Laser marking, not easily fade, vinyl material:epoxy resin material, good encapsulation stability

    2、6小图 3

    The pin is oxygen-free copper with good resistance to bending, oxidation and good conduction

    6-4

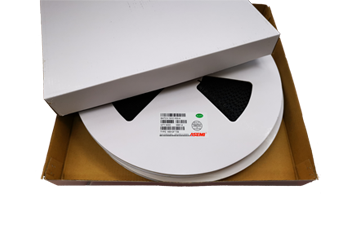

    10Kpcs/box,5Kpcs/T&R, anti-static PE pipe, kraft paper box, anti-static, easy to preserve, recyclable.

    贴片插件桥堆

    KMB110S:50Kpcs/CTN,  Material: kraft paper, resistant to pressure, abrasion and impact

    6-6

    Packing:10Kpcs/box , Size:33.8*33.8cm

    DESCRIPTION

    3、详解381-381-恢复的
    3、详解381-381-

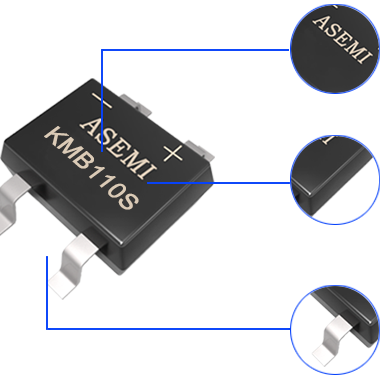

    GREEN LASER PRINTER

    laser marking, not easily fade, to solve the ink screen printing easy fade

    high production efficiency of laser marking, short delivery time, solve the problem of long delivery time and low efficiency of ink printing

    PLASTIC PACKAGING

    disposable injection molding with epoxy resin material

    good flame retardant performance, high strength, high temperature resistance

    OXYGEN-FREE COPPER PINS

    oxygen free copper, good electrical conductivity

    pin thickening design, thickness up to 0.25mm, can work for a long time without heating

    the LOGO of the original "ASEMI" brand

    A = advanced

    SEMI = semiconductor

    【UL US safety certification LOGO 】

    【Safety experiment and appraisal authority】

    【 Safety inspection product yield prompt 】

    PRODUCT ANALYSIS

    [KMB110S] represents the complete model of the product

    [KMBS] Represents schottky rectifier bridge

    [1] means its forward current is 1A

    [10] represents its reverse withstand voltage is 100V

    [S] represents it's belong to SMD package

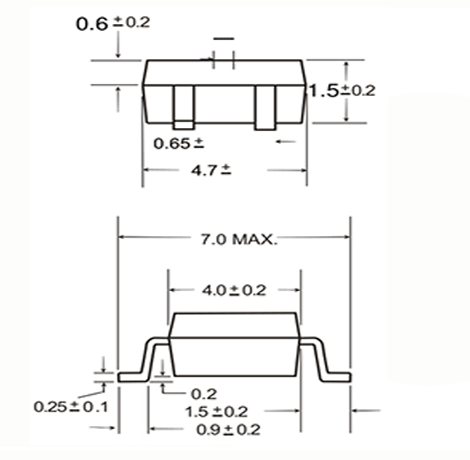

    SIZE

    9、尺寸图
  • Lead Spacing :

    2.5mm
  • Body Length :

    4.7mm
  • Body Height :

    1.5mm
  • Body Width:

    4.0mm
  • 9、尺寸图2
  • Lead Thickness :

    0.25mm
  • Body Width:

    4.0mm
  • Body Length:

    4.7mm

  • PROCESS

    Product

    stability

    Product stability

    Adopt  GPP wave chip, the product continues to be stable

    Accurate product quantity

    Accurate product quantity

    Strict packaging inspection procedures to ensure that the product quantity is accurate, packaging without damage

    One-step injection molding

    One-step injection molding

    Automated equipment supports injection molding in one step

    Passed 6 quality checks

    Passed 6 quality
    checks

    12 parameters such as Vb, Io, If, Vf, and Ir are detected through 6 channels, and ΔV is controlled within 80V to improve the consistency and reliability of 4 chips.

    Perfect interpersonal interaction

    Flexible interpersonal interaction

    Reinforcement, cutting, separation, flexible, interpersonal interaction process

    PRODUCT PK

    MB6S PK 1 MB6S PK2

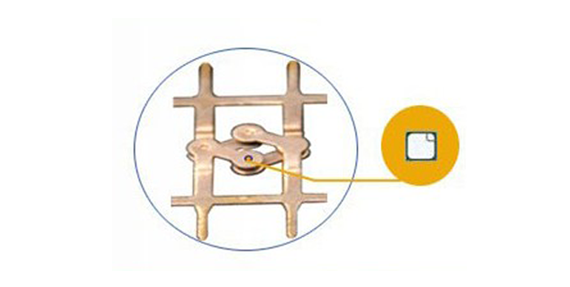

    ASEMI adopts 50mil high-quality large chip, with good parameter consistency and stable and efficient output

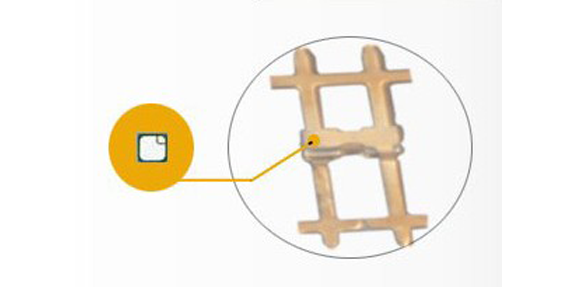

    Inferior chip easy to heat after long-time working serious, and will damaged the machine

    5、PK-1 5、PK22

    ASEMI uses laser marking, not easily fade, and prevents refurbishment

    Inferior and easy to drop word will pullute PCB board,and also exist a problem of malicious renovation

    5、PK-2 MB6S PK6

    ASEMI uses oxygen-free copper frame and pins, with good electrical conductivity and high strength of thickened pins

    Ordinary steel is easy to be oxidize and virtual weld, the strength is low then easy to break

    MB6S PK7 MB6S PK8

    The ASEMI factory uses Jianding and Guankui high-precision equipment to test 18 key electrical data simultaneously

    Other equipment has low precision, the electrical parameter detection is not strict, and the quality consistency is poor

    APPLICATION

    Industrial equipment

    Led lamps Led lighting

    Induction cooker

    Electric welding machine

    Charger of laptop

    Automobile industry

    6、应用领域 1200-612-恢复的
  • lo

    1A
  • VRRM

    20V~100V
  • IFSM

    30A
  • lr

    5uA
  • Temperature

    -55~+150℃
  • PARTNER

    CONTACT US

    KMB110S/KMB14S/KMB16S,ASEMI SMD schottky rectifier bridge

    smd rectifier bridge KMB110S parameter specifications: current :1A voltage: 20V~100V;Box packing: 5000Pcs/T&R

    is applied in the field of small current products: small power switching power supply, power adapter, LED lamp rectifier, electric fan, television, indoor

    air conditioner, household appliances and other related electrical products.This's ASEMI original product, the quality is stable and reliable. Welcome to apply for free sample test.
