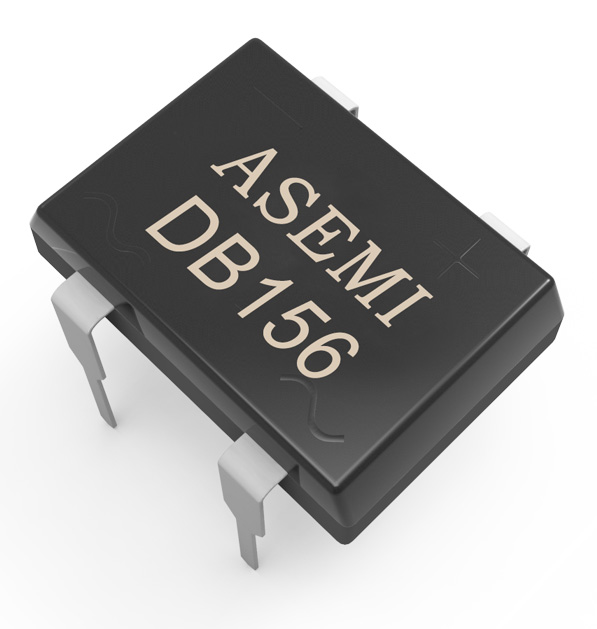

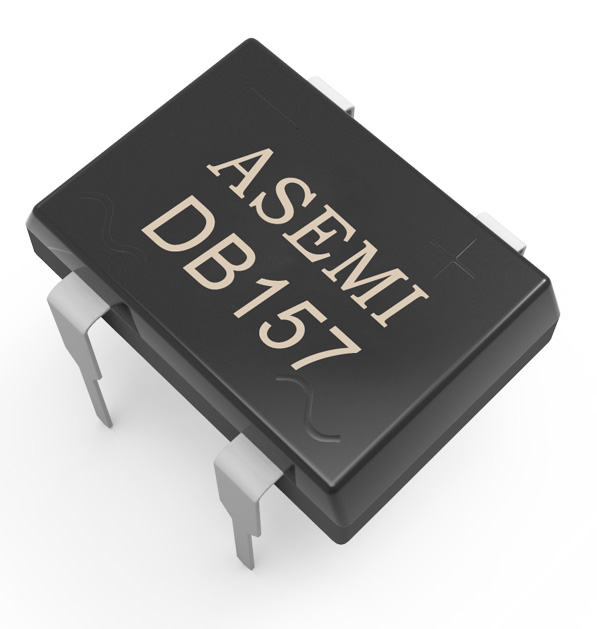

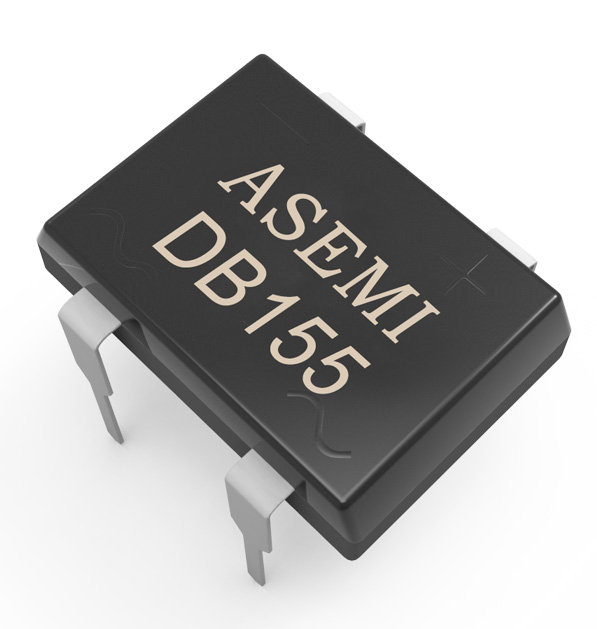

DB157/DB156/DB155/DB154 ASEMI SMD bridge rectifier
  • TypeDB157

    BrandASEMI

    PackageDB-4

    FeatureDIP bridge rectifier

  • lo VRRM Chip Material Chip Number lr Temperature
    1.5A 50V~1000V GPP Silicon 4 ≤5ua -50℃~150℃
    VF IFSM Chip Size Lead Number Trr Package

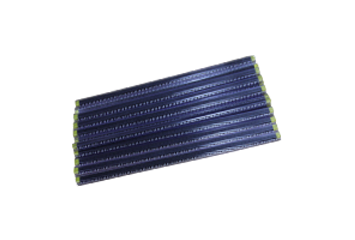

    1.1V 30A 60MIL 4 >500ns 50pcs/tube, 2.5Kpcs/box

    Adopts high-quality process chip, which has good sealing reliability and prevents electrical degradation

    Laser marking is not easy to fade and prevent refurbishment; epoxy resin grease has good stability

    Oxygen-free copper frame pins, bright tin plating to prevent oxidation, small internal resistance, good conductivity

    Adopt 5 layers of large corrugated kraft paper box, 4 layers of restraint belt protection

    The inner box is protected by moisture-proof plastic film, which is convenient for long-term storage in the warehouse

    Purchase:

    400-9929-667

    VIDEO

    PRODUCT PARAMETERS

    Video content details:

    ASEMI brand DB-4 series,it adopts glass-encapsulated GPP process chip with high stability, highly consistent product dispersion etc features.This product is ASEMI original product, the quality is stable and reliable.Welcome to apply for free sample test.

    Video content details:

    ASEMI brand DB-4 series,it adopts glass-encapsulated GPP process chip with high stability, highly consistent product dispersion etc features.This product is ASEMI original product, the quality is stable and reliable.Welcome to apply for free sample test.

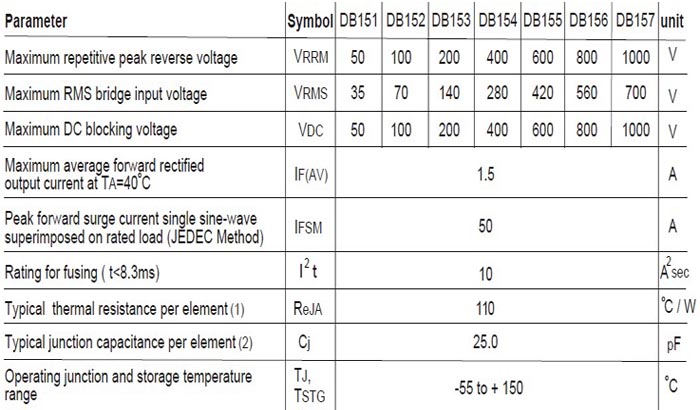

    DB157 产品规格书

    DETAIL

    DB157 缩1

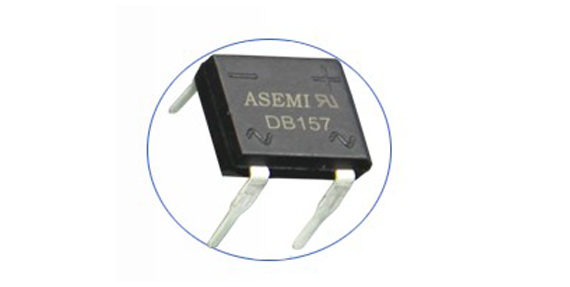

    Adopts glass-encapsulated GPP process chip, which has good sealing reliability and anti-electricity decline.


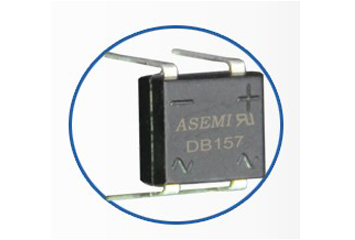

    DB157 缩2

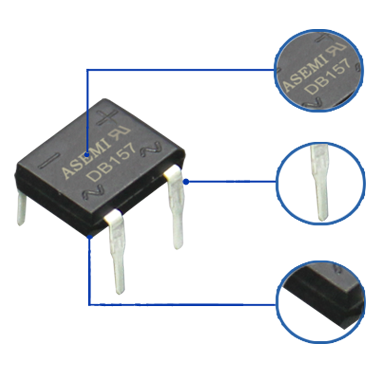

    Laser marking, not easy to fade; epoxy resin molding, good insulation stability.

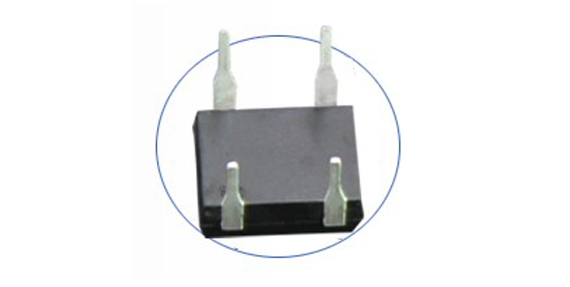

    DB157 缩3

    The frame pins are made of oxygen-free copper material, with small internal resistance, good conductivity.

    6-4

    Independent small package to prevent material backlog collision and scratch, product information clearly marked.

    6-5

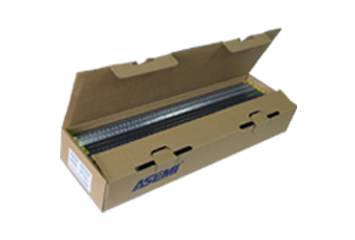

    5 layers of large corrugated kraft paper box, 4 fastening belt protection, pressure and wear resistance can be reused.

    6-6

    3-layer small corrugated inner box + moisture-proof plastic film protection, convenient to store and easy to solder on the machine.

    DESCRIPTION

    DB157 详1
    DB157 详2
    GREEN LASER PRINTER

    laser marking is not easy to fade, to solve the ink screen printing easy fade

    high production efficiency of laser marking, short delivery time, solve the problem of long delivery time and low efficiency of ink printing

    PLASTIC PACKAGING

    disposable injection molding with epoxy resin material

    good flame retardant performance, high strength, high temperature resistance

    XYGEN-FREE COPPER PINS

    oxygen free copper, good electrical conductivity

    pin thickening design, thickness up to 0.25mm, can work for a long time without heating

    the LOGO of the original "ASEMI" brand

    A = advanced

    SEMI = semiconductor

    【UL US safety certification LOGO 】

    【Safety experiment and appraisal authority】

    【 Safety inspection product yield prompt 】

    PRODUCT ANALYSIS

    [DB157] represents the complete model of the product

    [DB]For the encapsulation way of its products

    [15] means its forward current is 1.5a

    [7] represents its reverse withstand voltage is 1000V


    SIZE

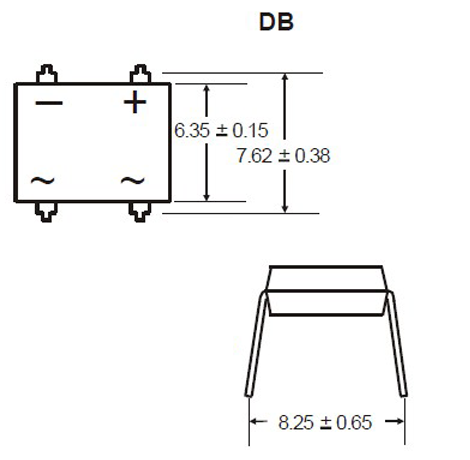

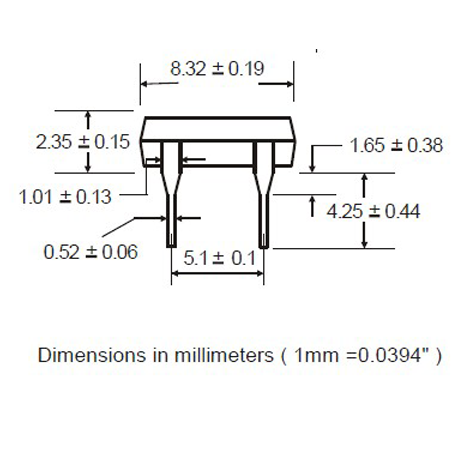

    DB207 产品尺寸图1
  • Lead Spacing :

    5.1mm
  • Body Length :

    6.35mm
  • Body Height :

    2.35mm
  • Body Width:

    8.32mm
  • DB207 产品尺寸图2
  • Lead Thickness :

    0.52mm
  • Body Width:

    8.32mm
  • Body Length:

    7.62mm
  • PROCESS

    Product

    stability

    Product stability

    Adopt  GPP  chip, the product continues to be stable

    Accurate product quantity

    Accurate product quantity

    Strict packaging inspection procedures to ensure that the product quantity is accurate, packaging without damage

    One-step injection molding

    One-step injection molding

    Automated equipment supports injection molding in one step

    Passed 6 quality checks

    Passed 6 quality
    checks

    12 parameters such as Vb, Io, If, Vf, and Ir are detected through 6 channels, and ΔV is controlled within 80V to improve the consistency and reliability of 4 chips.

    Interpersonal interaction

    Interpersonal interaction

    Reinforcement, cutting, separation, interpersonal interaction process

    PRODUCT PK

    PK图1 PK图2

    ASEMI adopts 50mil high-quality large chip, with good parameter consistency and stable and efficient output

    Inferior chip easy to heat seriously after long-time working , and will damaged the machine

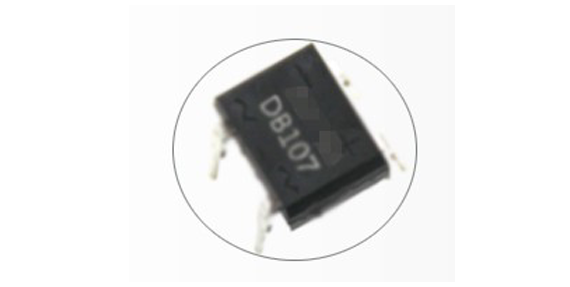

    DB157 PK 打1 DB157 PK 打2

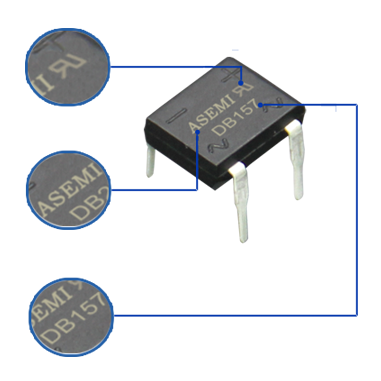

    ASEMI uses laser marking is not easy to fade and prevents refurbishment

    Inferior and easy to fade will pullute PCB board,and also exist a problem of malicious renovation

    DB157 PK 脚1 DB157 缩3

    ASEMI uses high-purity oxygen-free copper frame and pins, with good electrical conductivity and high strength of thickened pins

    Ordinary steel is easy to be oxidize and virtual weld, the strength is low then easy to break

    MB6S PK7 MB6S PK8

    The ASEMI factory uses Jianding and Guankui high-precision equipment to test 18 key electrical data simultaneously

    Other equipment has low precision, the electrical parameter detection is not strict, and the quality consistency is poor

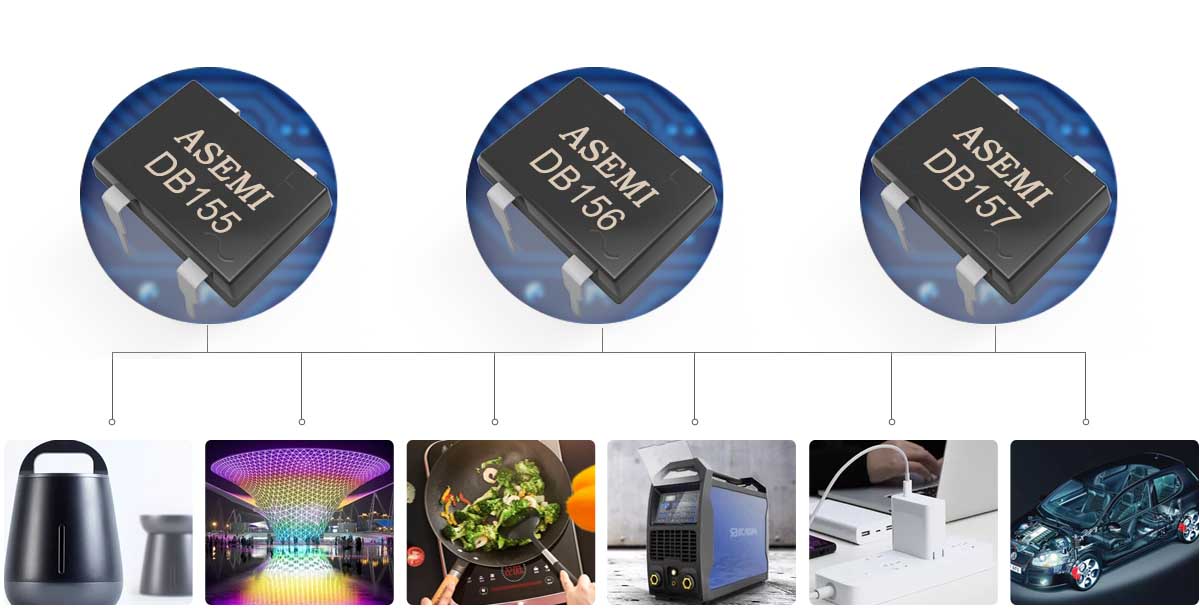

    APPLICATION

    Industrial equipment

    Led lamps and lanterns

    Induction cooker

    Electric welding machine

    Power adapter of laptop

    Automobile industry

    DB157 应用领域
  • lo

    1.5A
  • VRRM

    50V~1000V
  • IFSM

    30A
  • lr

    ≤5ua
  • Temperature

    -50℃~150℃
  • PARTNER

    CONTACT US

    DB157/DB156/DB155/DB154 ASEMI SMD bridge rectifier

    DB157 electrical parameters: maximum forward average current 1.5A; maximum reverse peak voltage 1000V

    DB157 packaging method: 50pcs/tube, 2.5Kpcs/box,10Kpcs/carton

    The bridge rectifier is widely used in: power supplies, chargers, adapters, LED lighting, home appliances, civil and industrial equipment and other products

    Welcome to apply for free sample test.
