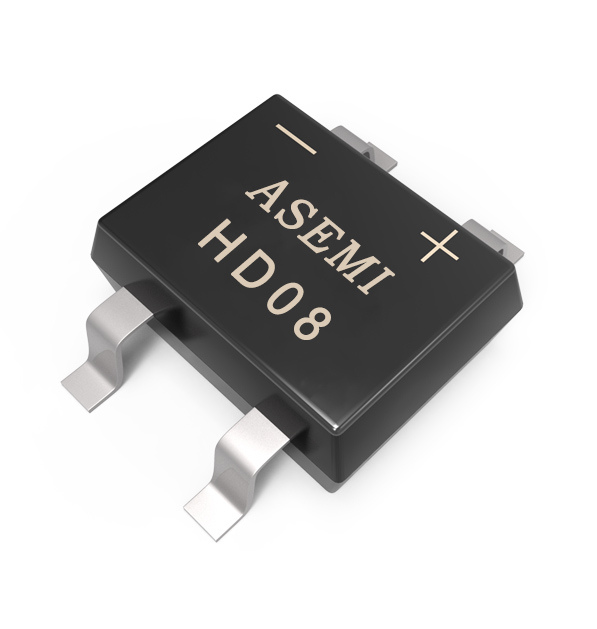

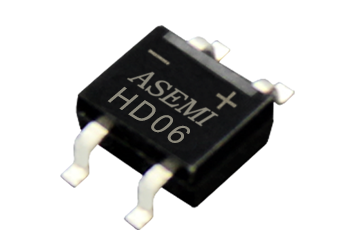

HD06,HD10,HD08,HD04,HD02 ASEMI SMD Bridge Rectifier
  • TypeHD06

    BrandASEMI

    PackageMBS-4

    FeatureSMD bridge rectifier

  • lo VRRM Chip Material Chip Number lr Temperature
    1A 50V-1000V GPP Silicon 4 >10ua -50℃~150℃
    VF IFSM Chip Size Lead Number Trr Package
    1.05V 30A 50MIL 4 >2000ns 3Kpcs/reel, 6Kpcs/box

    Adopts glass-encapsulated GPP process chip, which has good sealing reliability and prevents electrical degradation

    Laser marking is not easy to fade and prevent refurbishment; epoxy resin grease has good stability

    Oxygen-free copper frame pins, bright tin plating to prevent oxidation, small internal resistance, good conductivity

    Adopt 5 layers of large corrugated kraft paper box, 4 layers of restraint belt protection

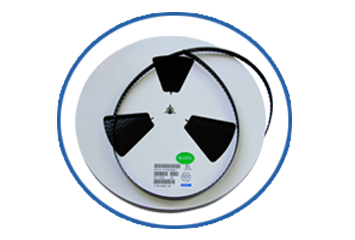

    The inner box is protected by moisture-proof plastic film, which is convenient for long-term storage in the warehouse

    Purchase:

    400-9929-667

    VIDEO

    PRODUCT PARAMETERS

    Video content details:

    ASEMI brand HD-4 series,it adopts glass-encapsulated GPP process chip with high stability, highly consistent product dispersion etc features.This product is ASEMI original product, the quality is stable and reliable.Welcome to apply for free sample test.

    Video content details:

    ASEMI brand HD-4 series,it adopts glass-encapsulated GPP process chip with high stability, highly consistent product dispersion etc features.This product is ASEMI original product, the quality is stable and reliable.Welcome to apply for free sample test.

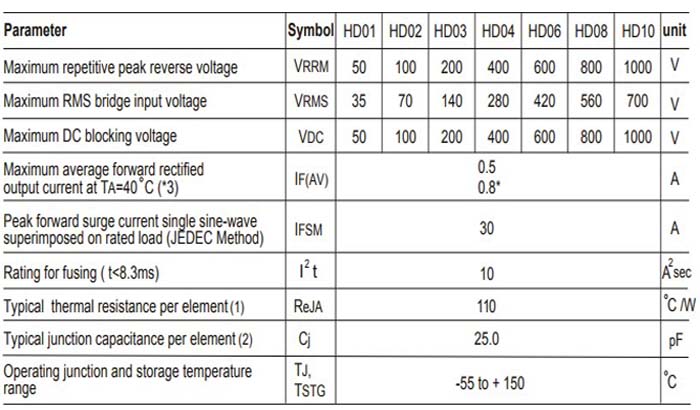

    HD06 产品规格书

    DETAIL

    HD06 缩1

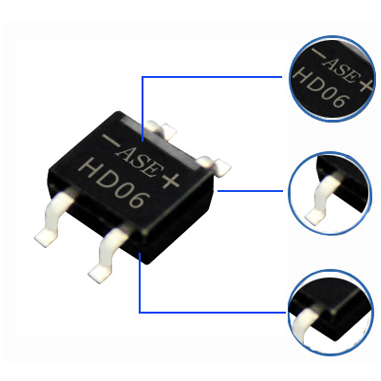

    Adopts glass-encapsulated GPP process chip, which has good sealing reliability and anti-electricity decline.


    HD06 小图

    Laser marking, not easy to fade; epoxy resin molding, good insulation stability.

    MB6S3

    The frame pins are made of oxygen-free copper material, with small internal resistance, good conductivity.

    MB6S4

    Independent small package to prevent material backlog collision and scratch, product information clearly marked.

    MB6S5

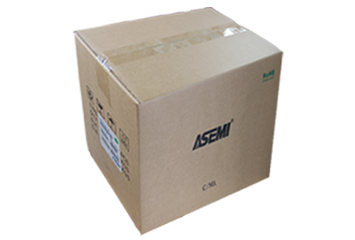

    5 layers of large corrugated kraft paper box, 4 fastening belt protection, pressure and wear resistance can be reused.

    MB6S6

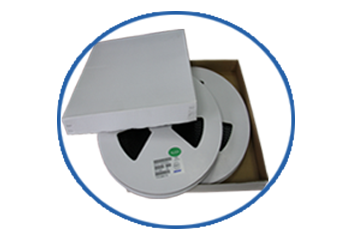

    3-layer small corrugated inner box + moisture-proof plastic film protection, convenient to store and easy to solder on the machine.

    DESCRIPTION

    HD06 产品解析1
    HD06 产品解析2
    GREEN LASER PRINTER

    laser marking is not easy to fade, to solve the ink screen printing easy fade

    high production efficiency of laser marking, short delivery time, solve the problem of long delivery time and low efficiency of ink printing

    PLASTIC PACKAGING

    disposable injection molding with epoxy resin material

    good flame retardant performance, high strength, high temperature resistance

    OXYGEN-FREE COPPER PINS

    oxygen free copper, good electrical conductivity

    pin thickening design, thickness up to 0.25mm, can work for a long time without heating

    the LOGO of the original "ASEMI" brand

    A = advanced

    SEMI = semiconductor

    【UL US safety certification LOGO 】

    【Safety experiment and appraisal authority】

    【 Safety inspection product yield prompt 】

    PRODUCT ANALYSIS

    [HD06] represents the complete model of the product

    [HD] For the the package of this product

    [      ] means its forward current is 1.0a

    [06] represents its reverse withstand voltage is 600V


    SIZE

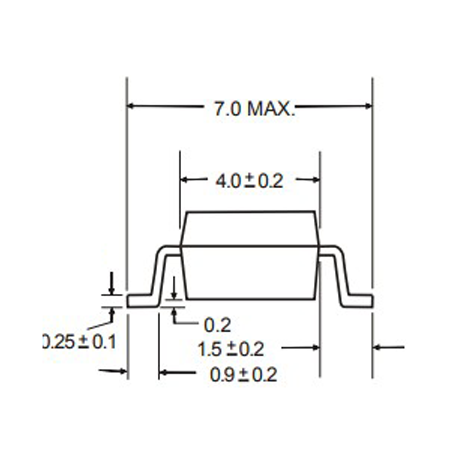

    HD06 产品尺寸图1
  • Lead Spacing :

    2.5mm
  • Body Length :

    4.7mm
  • Body Height :

    2.5mm
  • Body Thickness:

    1.1mm
  • HD06 产品尺寸图2
  • Lead Thickness :

    0.25mm
  • Body Width:

    4.0mm
  • Body Length:

    4.7mm

  • PROCESS

    Product

    stability

    Product stability

    Adopt GPP chip, the product continues to be stable

    Accurate product quantity

    Accurate product quantity

    Strict packaging inspection procedures to ensure that the product quantity is accurate, packaging without damage

    One-step injection molding

    One-step injection molding

    Automated equipment supports injection molding in one step

    Passed 6 quality checks

    Passed 6 quality
    checks

    12 parameters such as Vb, Io, If, Vf, and Ir are detected through 6 channels, and ΔV is controlled within 80V to improve the consistency and reliability of 4 chips.

    Interpersonal interaction

    Interpersonal interaction

    Reinforcement, cutting, separation,  interpersonal interaction process

    PRODUCT PK

    MB6S PK 1 MB6S PK2

    ASEMI adopts 50mil high-quality large chip, with good parameter consistency and stable and efficient output

    Inferior 42mil chip easy to heat seriously after long-time working , and will damaged the machine.

    HD06 PK 印字1 HD06 PK 印字2

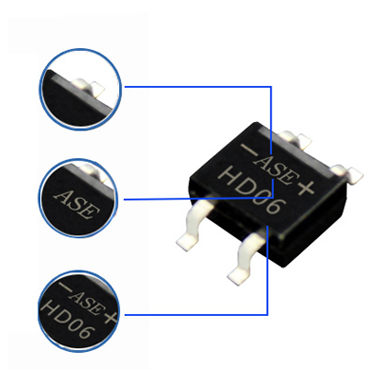

    ASEMI uses laser marking is not easy to fade and prevents refurbishment
    Ordinary ink screen printing is easy to fade, pollute the circuit board, there are bad problems such as malicious refurbishment

    HD06 PK 引脚1 HD06 PK 引脚2

    ASEMI uses high-purity oxygen-free copper frame and pins, with good electrical conductivity and high strength of thickened pins

    Ordinary pins are easy to be oxidize and virtual weld, the strength is low then easy to break

    MB6S PK7 MB6S PK8

    The ASEMI factory uses Jianding and Guankui high-precision equipment to test 18 key electrical data simultaneously

    Other equipment has low precision, the electrical parameter detection is not strict, and the quality consistency is poor

    APPLICATION

    Industrial equipment

    Led lamps and lanterns

    Induction cooker

    Electric welding machine

    Power adapter of laptop

    Automobile industry

    HD06 应用领域
  • lo

    1A
  • VRRM

    50V-1000V
  • IFSM

    30A
  • lr

    >10ua
  • Temperature

    -50℃~150℃
  • PARTNER

    CONTACT US

    HD06,HD10,HD08,HD04,HD02 ASEMI SMD Bridge Rectifier

    HD06 electrical parameters: maximum forward average current 1A; maximum reverse peak voltage 600V

    HD06 packaging method: 3Kpcs/reel, 6Kpcs/box

    The bridge rectifier is widely used in: power supplies, chargers, adapters, LED lighting, home appliances, civil and industrial equipment and other products

    Welcome to apply for free sample test.
