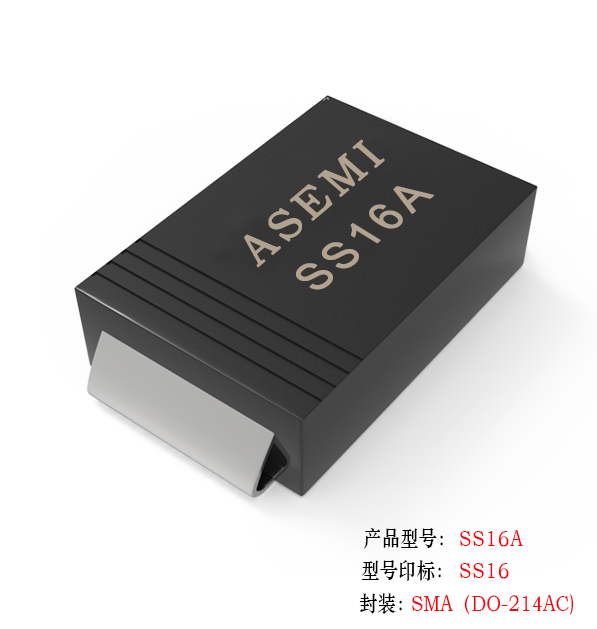

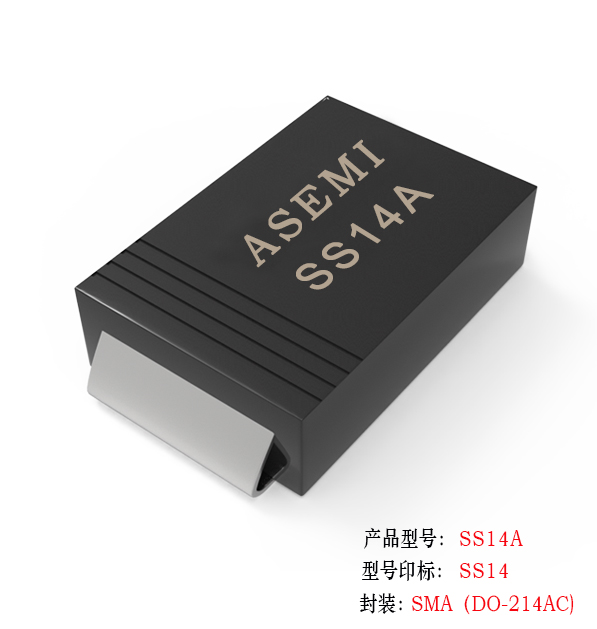

【SS110-SMA】SS110A,SS115A,SS120A,SS14A,SS16A,ASEMI Schottky diode
  • TypeSS110A

    BrandASEMI

    PackageSMA

    Featurepaster

  • lo VRRM Chip Material Chip Number lr Temperature
    1A 40V~200V Metal & silicon chip 1 10ua -50℃~150℃
    VF IFSM Chip Size Lead Number Trr Package
    0.54V~0.92V 30A 32MIL 2 5ns 2000&5000/dish

    Schottky diode SS110A electrical parameters:1A;40V~200V

    Laser marking, fadeless, vinyl material; Epoxy resin material, good encapsulation stability

    The pin is anoxic copper with good resistance to bending, oxidation and conduction

    SS110A:2000&5000/dish ; Material: kraft paper, resistant to pressure, abrasion and impact

    100K/CTN , Environmental protection and anti-static PE tape feeder, kraft paper box, anti-static, easy to preserve, recyclable.

    Purchase:

    400-9929-667

    VIDEO

    PRODUCT PARAMETERS

    Video content details:

    ASEMI brand MB6S,MBS series,Environmentally friendly imported chip, export quality, GPP chip, environmentally friendly and reliable, high stability, highly consistent product dispersion. This product original packing genuine product, the quality guarantee high stability and the reliability.Welcome to apply for free sample test.

    Video content details:

    ASEMI brand MB6S,MBS series,Environmentally friendly imported chip, export quality, GPP chip, environmentally friendly and reliable, high stability, highly consistent product dispersion. This product original packing genuine product, the quality guarantee high stability and the reliability.Welcome to apply for free sample test.

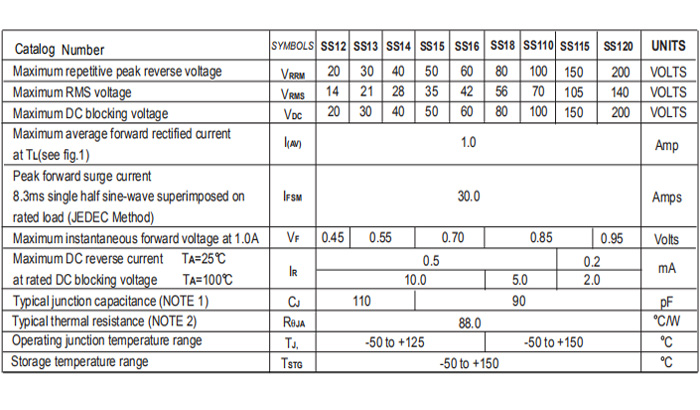

    SS110A-规格书

    DETAIL

    SS110A 6小图 1

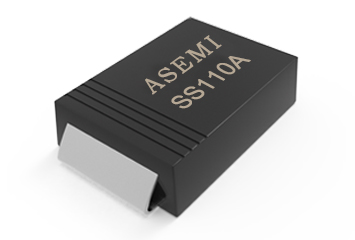

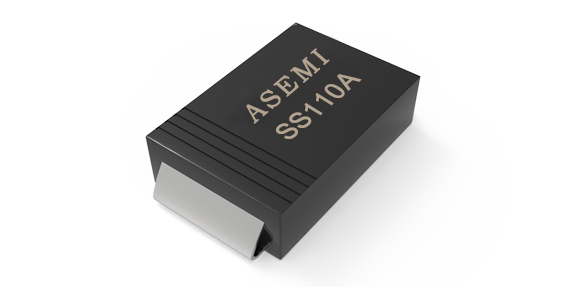

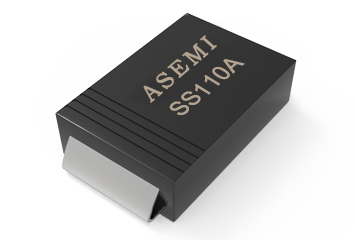

    Schottky diode SS110A

    electrical parameters 1A 100V

    SS110A 6小图 2

    Laser marking, fadeless, vinyl material; Epoxy resin material, good encapsulation stability

    ASEMI SMA 6小图 3

    The pin is anoxic copper with good resistance to bending, oxidation and conduction

    ASEMI 盒子 2

    2000/5000:dish,Environmental protection and anti-static PE tape feeder, anti-static, easy to preserve, recyclable.

    2W10

    SS110A: 100K/CTN;Material: kraft paper, resistant to pressure, abrasion and impact

    ASEMI 盒子 1

    Packing:10000/box ;Carton: environmental protection,kraft paper box,

    DESVRIPTION

    SS110A 详解 1
    SS110A 详解2

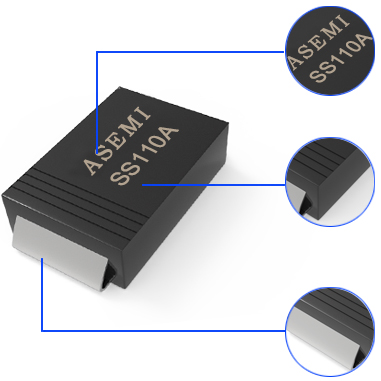

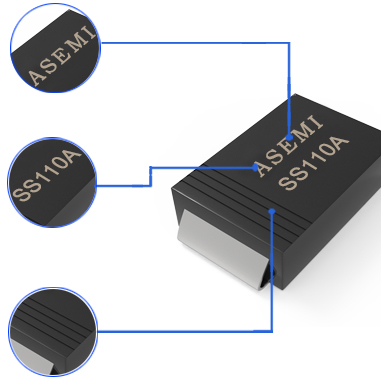

    GREEN LASER PRINTER

    laser marking, non-fading, to solve the ink screen printing easy fade

    high production efficiency of laser marking, short delivery time, solve the problem of long delivery time and low efficiency of ink printing

    ADVANCED PLASTIC PACKAGING

    disposable injection molding with epoxy resin material

    good flame retardant performance, high strength, high temperature resistance

    PURE OXYGEN-FREE COPPER PINS

    oxygen free copper, excellent electrical conductivity

    pin thickening design, thickness up to 0.9mm, can work for a long time without heating

    the LOGO of the original "ASEMI" brand in Taiwan

    A = advanced

    SEMI = semiconductor

    The three bars represent the positive poles

    Safety testing and identification authority

    Safety inspection product yield labeling

    PRODUCT ANALYSIS

    [SS110A] represents the complete model of the product

    [SS] stands for the  Schottky diode

    [ 1 ] means its forward current is 1a

    [10] represents its reverse withstand voltage is 100V

    [ A ] represents it's belong to SMA

    SIZE

    ASEMI SMA 尺寸图1
  • Body Height :

    4.60mm
  • Body Width :

    2.9mm
  • Lead Length :

    1.5mm
  • lead width :

    1.6mm
  • ASEMI SMA 尺寸图2
  • package:

    sma
  • Lead Spacing:

    5.28mm
  • Lead Thickness:

    0.30mm

  • PROCESS

    Product

    stability

    Product stability

    Adopt Taiwan GPP wave chip, the product continues to be stable

    Accurate product quantity

    Accurate product quantity

    Strict packaging inspection procedures to ensure that the product quantity is accurate, packaging without damage

    One-step injection molding

    One-step injection molding

    Automated equipment supports injection molding in one step

    Passed 6 quality checks

    Passed 6 quality
    checks

    12 parameters such as Vb, Io, If, Vf, and Ir are detected through 6 channels, and ΔV is controlled within 80V to improve the consistency and reliability of 4 chips.

    Perfect interpersonal interaction

    Perfect interpersonal interaction

    Reinforcement, cutting, separation, perfect interpersonal interaction process

    PRODUCT PK

    ASEMI GPP PK 10 ASEMI GPP PK 11

    ASEMI adopts 32mil high-quality large chip, with good parameter consistency and stable and efficient output

    Use inferior 28mil small chip,Inferior chip easy to heat after long-time working serious, and will damaged the machine

    SS110A PK 1 asemi sma PK 5

    ASEMI uses laser marking, environmentally friendly, non-fading, and prevents refurbishment

    Inferior and easy to drop word will pullute PCB board,and also exist a problem of malicious renovation

    ASEMI SMA PK 2 asemi sma PK 6

    ASEMI uses a high-purity oxygen-free copper frame and pins, with good electrical conductivity and high strength of thickened pins

    Ordinary steel is easy to be oxidize and virtual weld, the strength is low then easy to break

    PK7 PK8

    The ASEMI factory uses Jianding and Guankui high-precision equipment to test 18 key electrical data simultaneously

    Other equipment has low precision, the electrical parameter detection is not strict, and the quality consistency is poor

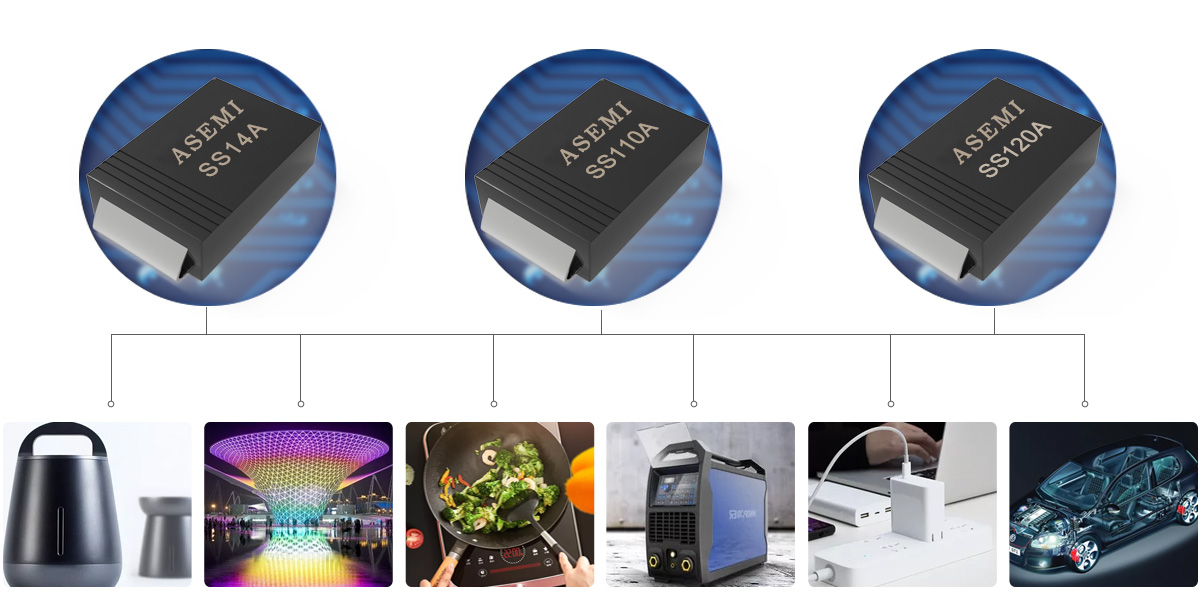

    APPLICATION

    Industrial equipment

    Led lamps and lanterns

    Induction cooker

    Electric welding machine

    Notebook power

    Automobile industry

    SS110A-应用领域
  • lo

    1A
  • VRRM

    40V~200V
  • IFSM

    30A
  • lr

    10ua
  • Temperature

    -50℃~150℃
  • PARTNER

    CONTACT US

    【SS110-SMA】SS110A,SS115A,SS120A,SS14A,SS16A,ASEMI Schottky diode

    SS110A Parameter specification: current:1A voltage: 40V~200V MOQ:10Kpcs

    Application in the field of small current products: low power switching mode power supply, power adapter, led lamp rectifier, fan, television, indoor air conditioner, household appliances and other related electrical products.

    This product original packing genuine product, the quality guarantee high stability and the reliability.

    Welcome to apply for free sample test.
