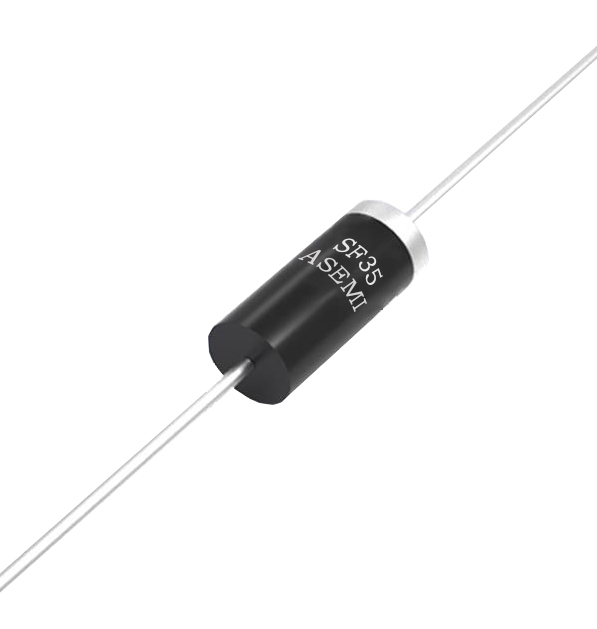

[SF38-DO-27] SF38/SF37/SF36 ASEMI super fast recovery diode
  • TypeSF38

    BrandASEMI

    PackageDO-27

    FeatureSmall current, direct plug

  • lo VRRM Chip Material Chip Number lr Temperature
    3A 50V~600V GPP Silicon 1 ≤5ua -40~+150℃
    VF IFSM Chip Size Lead Number Trr Package
    1.25~1.7V 125A 90MIL 2 35ns 3000/ braid; 500 / bulk

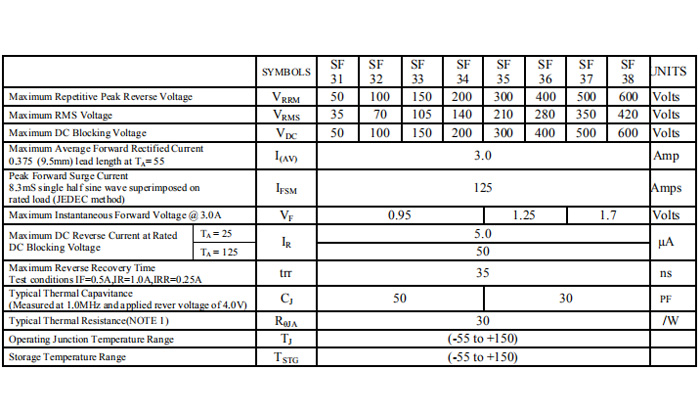

    Fast recovery diode SF38 electrical parameters 3A 50V~600V

    Laser marking, fadeless, vinyl material; Epoxy resin material, good encapsulation stability

    The pin is anoxic copper with good resistance to bending, oxidation and conduction

    SF38 :3K/T&R 500 in bulk Material: kraft paper, resistant to pressure, abrasion and impact

    5K/CTN in reel ,4.8K/CTN in bulk Environmental protection and anti-static PE pipe, kraft paper box, anti-static, easy to preserve, recyclable.

    Purchase:

    400-9929-667

    VIDEO

    PRODUCT PARAMETERS

    Video content details:

    ASEMI brand MB6S,MBS series,Environmentally friendly imported chip, export quality, GPP chip, environmentally friendly and reliable, high stability, highly consistent product dispersion. This product original packing genuine product, the quality guarantee high stability and the reliability.Welcome to apply for free sample test.

    Video content details:

    ASEMI brand MB6S,MBS series,Environmentally friendly imported chip, export quality, GPP chip, environmentally friendly and reliable, high stability, highly consistent product dispersion. This product original packing genuine product, the quality guarantee high stability and the reliability.Welcome to apply for free sample test.

    SF38-规格书

    DETAIL

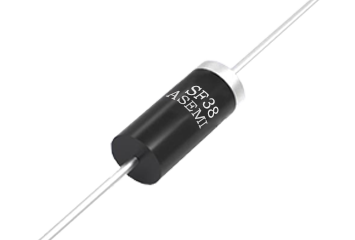

    SF38小图-1

    Fast recovery diode SF38

    electrical parameters 3A 600V

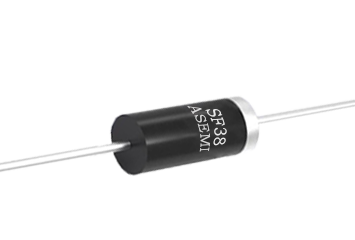

    SF38小图-2
  • silk printing
  • marking, fadeless, vinyl material; Epoxy resin material, good stability

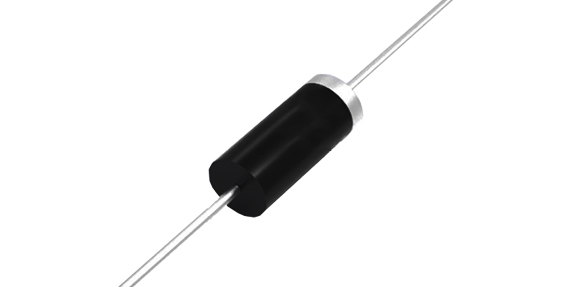

    1N5408小图-3

    The pin is anoxic copper with good resistance to bending, oxidation and conduction

    ASEMI DO 6小图 11

    1250pcs/box,,Environmental protection and anti-static PE pipe, kraft paper box, anti-static, easy to preserve, recyclable.

    2W10

    SF38: 5K/CTN in reel, 4.8K/CTN in bulk   Material: kraft paper, resistant to pressure, abrasion and impact

    ASEMI DO 6小图 10

    Packing:500/box Carton: environmental protection, sealed material Size:56.4*15.0*4.1cm

    DESVRIPTION

    SF38 详解1
    SF38 详解2

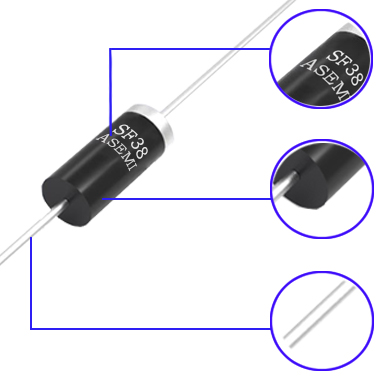

    GREEN LASER PRINTER

    marking, non-fading, to solve the ink screen printing easy fade

    high production efficiency of marking, short delivery time, solve the problem of long delivery time and low efficiency of ink printing

    ADVANCED PLASTIC PACKAGING

    disposable injection molding with epoxy resin material

    good flame retardant performance, high strength, high temperature resistance

    PURE OXYGEN-FREE COPPER PINS

    oxygen free copper, excellent electrical conductivity

    pin thickening design, thickness up to 0.9mm, can work for a long time without heating

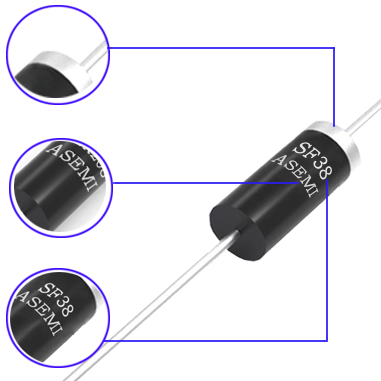

    the LOGO of the original "ASEMI" brand in Taiwan

    A = advanced

    SEMI = semiconductor

    the white area shows the symbol of anode diode

    Safety experiment and appraisal authority

    Safety inspection product yield prompt

    PRODUCT ANALYSIS

    [SF38] represents the complete model of the product

    [SF] stands for thesuper fast recovery diode

    [3] means its forward current is 3a

    [8] represents its reverse withstand voltage is 600V

    [   ]The default packaging mode of this product is do-27

    SIZE

    1N5408尺寸图-1
  • Body Length :

    60.3mm
  • Body Length :

    9.5mm
  • Lead Length :

    25.4mm
  • Body Diameter:

    5.6mm
  • 1N5408 尺寸图-2
  • Body Widtht

    5.6
  • Body Length:

    9.5mm
  • Lead Diameter:

    1.30mm

  • PROCESS

    Product

    stability

    Product stability

    Adopt Taiwan GPP wave chip, the product continues to be stable

    Accurate product quantity

    Accurate product quantity

    Strict packaging inspection procedures to ensure that the product quantity is accurate, packaging without damage

    One-step injection molding

    One-step injection molding

    Automated equipment supports injection molding in one step

    Passed 6 quality checks

    Passed 6 quality
    checks

    12 parameters such as Vb, Io, If, Vf, and Ir are detected through 6 channels, and ΔV is controlled within 80V to improve the consistency and reliability of 4 chips.

    Perfect interpersonal interaction

    Perfect interpersonal interaction

    Reinforcement, cutting, separation, perfect interpersonal interaction process

    PRODUCT PK

    ASEMI DO PK 10 ASEMI DO PK 11

    ASEMI adopts102mil high-quality large chip, with good parameter consistency and stable and efficient output

    Use inferior 95mil small chip,Inferior chip easy to heat after long-time working serious, and will damaged the machine

    SF38 PK-1 SF38 PK-2

    ASEMI uses laser marking, environmentally friendly, non-fading, and prevents refurbishment

    Inferior and easy to drop word will pullute PCB board,and also exist a problem of malicious renovation

    SF38 PK-3 SF38 PK-4

    ASEMI uses a high-purity oxygen-free copper frame and pins, with good electrical conductivity and high strength of thickened pins

    Ordinary steel is easy to be oxidize and virtual weld, the strength is low then easy to break

    PK7 PK8

    The ASEMI factory uses Jianding and Guankui high-precision equipment to test 18 key electrical data simultaneously

    Other equipment has low precision, the electrical parameter detection is not strict, and the quality consistency is poor

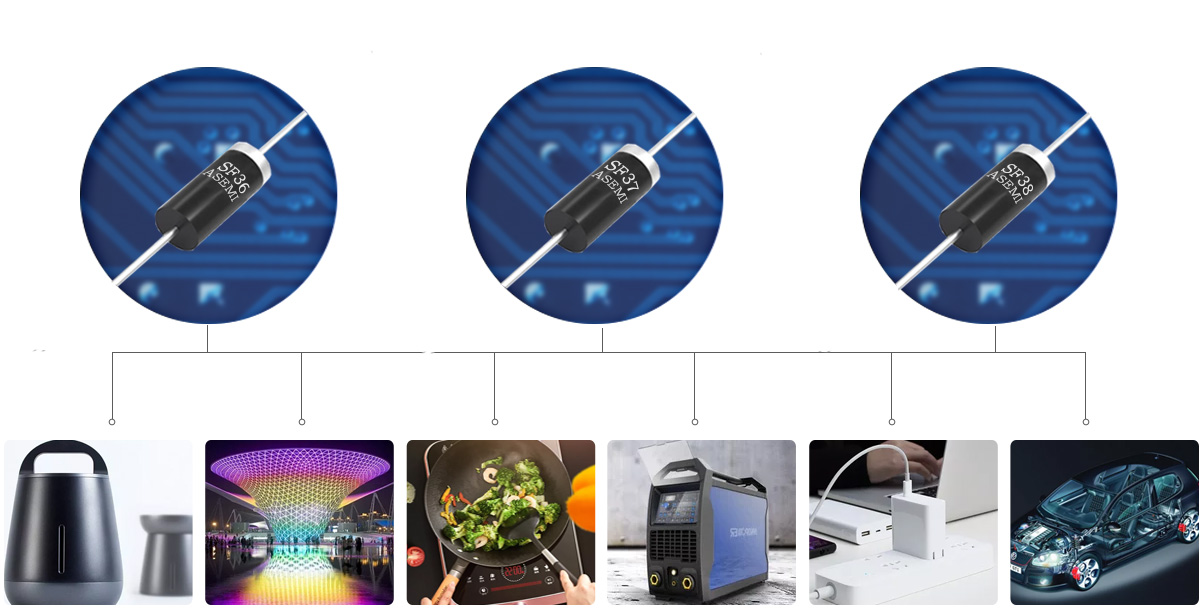

    APPLICATION

    Industrial equipment

    Led lamps and lanterns

    Induction cooker

    Electric welding machine

    Notebook power

    Automobile industry

    SF38-应用领域
  • lo

    3A
  • VRRM

    50V~600V
  • IFSM

    125A
  • lr

    ≤5ua
  • Temperature

    -40~+150℃
  • PARTNER

    CONTACT US

    [SF38-DO-27] SF38/SF37/SF36 ASEMI super fast recovery diode

    SF38 Parameter specification: current 3A voltage: 50V~600V MOP:5Kpcs/box

    Application in the field of small current products: low power switching mode power supply, power adapter, led lamp rectifier, fan, television, indoor air conditioner, household appliances and other related electrical products.

    This product original packing genuine product, the quality guarantee high stability and the reliability.

    Welcome to apply for free sample test.
