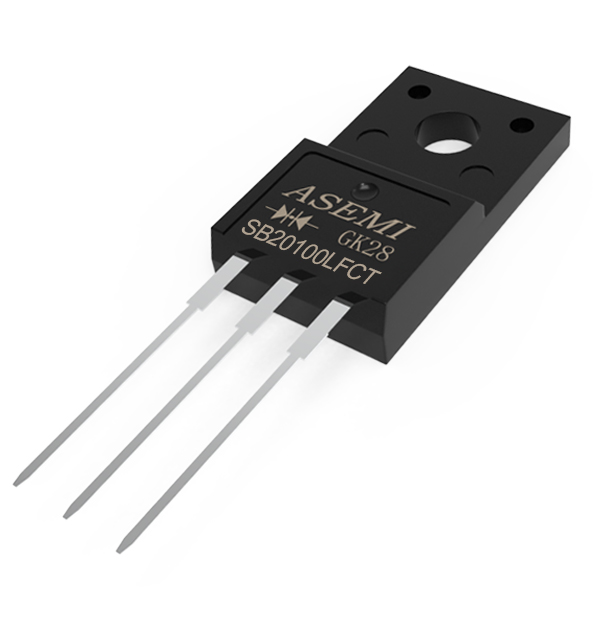

SB20100LFCT,SB2060/2045LFCT, SB20150LFCT, Low VF Schottky diode
  • TypeSB20100LFCT

    BrandASEMI

    PackageITO-220AB

    FeatureLOW VF

  • lo VRRM Chip Material Chip Number lr Temperature
    20A 40V~200V Metal & silicon chip 2 ( separated ) 20ua -40℃~170℃
    VF IFSM Chip Size Lead Number Trr Package
    0.40V~0.66V 175A 87mil*2 3 5ns 5000/CTN;1000/box

    Low VF Schottky diode SB20100LFCT electrical parameters 20A;45V~200V

    Laser marking, fadeless, vinyl material; Epoxy resin material, good encapsulation stability

    The pin is anoxic copper with good resistance to bending, oxidation and conduction

    SB20100LFCT :5.0K/CTN Material: kraft paper, resistant to pressure, abrasion and impact

    1K/box,50pcs/tube, Environmental protection and anti-static PE pipe, kraft paper box, anti-static, easy to preserve, recyclable.

    Purchase:

    400-9929-667

    VIDEO

    PRODUCT PARAMETERS

    Video content details:

    ASEMI brand MB6S,MBS series,Environmentally friendly imported chip, export quality, GPP chip, environmentally friendly and reliable, high stability, highly consistent product dispersion. This product original packing genuine product, the quality guarantee high stability and the reliability.Welcome to apply for free sample test.

    Video content details:

    ASEMI brand MB6S,MBS series,Environmentally friendly imported chip, export quality, GPP chip, environmentally friendly and reliable, high stability, highly consistent product dispersion. This product original packing genuine product, the quality guarantee high stability and the reliability.Welcome to apply for free sample test.

    sbt20100vfct-规格书

    DETAIL

    SB20100LFCT 6小图1

    Low VF Schottky diode SB20100LFCT

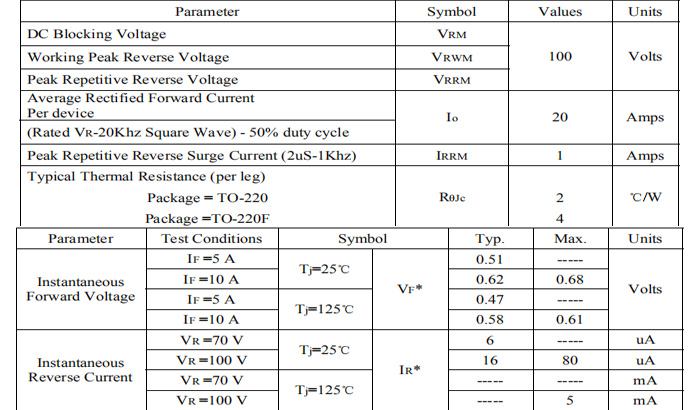

    electrical parameters 20A 100V

    SB20100LFCT 6小图 2

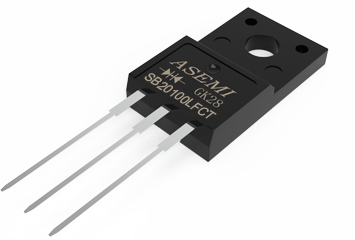

    Laser marking, fadeless, vinyl material; Epoxy resin material, good encapsulation stability

    6小图3

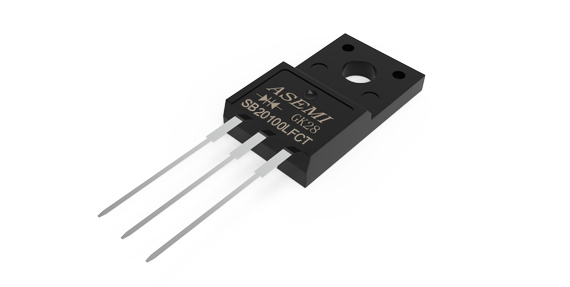

    The pin is anoxic copper with good resistance to bending, oxidation and conduction

    SBT30100VCT4

    1K/box,50pcs/tube,Environmental protection and anti-static PE pipe, kraft paper box, anti-static, easy to preserve, recyclable.

    SBT30100VCT5

    SB20100LFCT:5.0K/CTN Material: kraft paper, resistant to pressure, abrasion and impact

    SBT30100VCT6

    Packing:1K/box Carton: environmental protection, sealed material Size:56.4*15.0*4.1cm

    DESVRIPTION

    SB20100LFCT 详解1
    SB20100LFCT 详解2

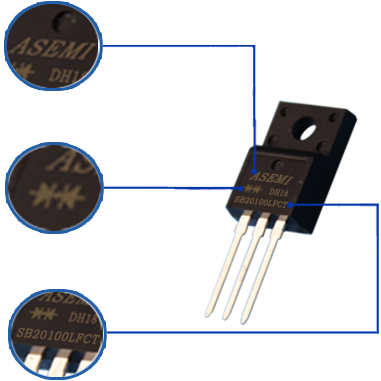

    GREEN LASER PRINTER

    laser marking, non-fading, to solve the ink screen printing easy fade

    high production efficiency of laser marking, short delivery time, solve the problem of long delivery time and low efficiency of ink printing

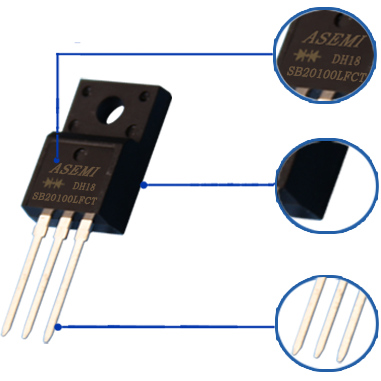

    ADVANCED PLASTIC PACKAGING

    disposable injection molding with epoxy resin material

    good flame retardant performance, high strength, high temperature resistance

    PURE OXYGEN-FREE COPPER PINS

    oxygen free copper, excellent electrical conductivity

    pin thickening design, thickness up to 0.25mm, can work for a long time without heating

    the LOGO of the original "ASEMI" brand in Taiwan

    A = advanced

    SEMI = semiconductor

    the figure shows the symbol of common cathod diode

    both ends are input current and the middle is output current in general

    there are two diodes integrated inside

    PRODUCT ANALYSIS

    [SB20100LFCT] represents the complete model of the product

    [SB-L] stands for the L version of the low vf schottky diode

    [20] means its forward current is 20a

    [100] represents its reverse withstand voltage is 100V

    [FCT] represents it's belong to ITO-220AB plastic package

    SIZE

    SBT30100VCT尺寸1
  • Body Height :

    15.00mm
  • Body Width :

    10.16mm
  • Lead Length :

    13.60mm
  • Positioning Hole Height:

    16.00mm
  • SBT30100VCT尺寸2
  • Body Thickness:

    4.57mm
  • Lead Spacing:

    2.54mm
  • Lead Thickness:

    0.62mm

  • PROCESS

    Product

    stability

    Product stability

    Adopt Taiwan GPP wave chip, the product continues to be stable

    Accurate product quantity

    Accurate product quantity

    Strict packaging inspection procedures to ensure that the product quantity is accurate, packaging without damage

    One-step injection molding

    One-step injection molding

    Automated equipment supports injection molding in one step

    Passed 6 quality checks

    Passed 6 quality
    checks

    12 parameters such as Vb, Io, If, Vf, and Ir are detected through 6 channels, and ΔV is controlled within 80V to improve the consistency and reliability of 4 chips.

    Perfect interpersonal interaction

    Perfect interpersonal interaction

    Reinforcement, cutting, separation, perfect interpersonal interaction process

    PRODUCT PK

    SBT30100VCT PK1 SBT30100VCT PK2

    ASEMI adopts 87mil high-quality large chip, with good parameter consistency and stable and efficient output

    Use inferior 68mil small chip,Inferior chip easy to heat after long-time working serious, and will damaged the machine

    SB20100LFCT PK1 PK 3

    ASEMI uses laser marking, environmentally friendly, non-fading, and prevents refurbishment

    Inferior and easy to drop word will pullute PCB board,and also exist a problem of malicious renovation

    PK 4 PK 5

    ASEMI uses a high-purity oxygen-free copper frame and pins, with good electrical conductivity and high strength of thickened pins

    Ordinary steel is easy to be oxidize and virtual weld, the strength is low then easy to break

    PK7 PK8

    The ASEMI factory uses Jianding and Guankui high-precision equipment to test 18 key electrical data simultaneously

    Other equipment has low precision, the electrical parameter detection is not strict, and the quality consistency is poor

    APPLICATION

    Industrial equipment

    Led lamps and lanterns

    Induction cooker

    Electric welding machine

    Notebook power

    Automobile industry

    SB20100LFCT-应用领域
  • lo

    20A
  • VRRM

    40V~200V
  • IFSM

    175A
  • lr

    20ua
  • Temperature

    -40℃~170℃
  • PARTNER

    CONTACT US

    SB20100LFCT,SB2060/2045LFCT, SB20150LFCT, Low VF Schottky diode

    Parameter specification: current:20A voltage: 45V~200V MOP:1Kpcs/box

    Application in the field of small current products: low power switching mode power supply, power adapter, led lamp rectifier, fan, television, indoor air conditioner, household appliances and other related electrical products.

    This product original packing genuine product, the quality guarantee high stability and the reliability.

    Welcome to apply for free sample test.
