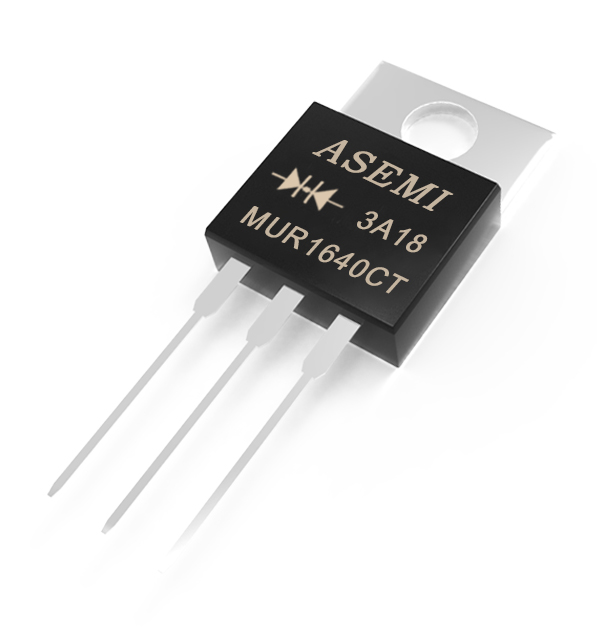

MUR1660CT,MUR1640CT,MUR1620CT, ASEMI Fast recovery diode
  • TypeMUR1660CT

    BrandASEMI

    PackageTO-220AB

    FeatureSuperfast diode

  • lo VRRM Chip Material Chip Number lr Temperature
    16A 200V~1200V Impact resistant & silicon chip 2 (twin cells) 10ua -40℃~170℃
    VF IFSM Chip Size Lead Number Trr Package
    1.05V~1.50V 125A 84MIL*2 3 35ns 5000/CTN

    Super fast recovery diode MUR1660CT electrical parameters:16A;200V~1200V

    Laser marking, fadeless, vinyl material; Epoxy resin material, good encapsulation stability

    The pin is anoxic copper with good resistance to bending, oxidation and conduction

    MUR1660CT :5K/CTN Material: kraft paper, resistant to pressure, abrasion and impact

    1K/box,50pcs/tube, Environmental protection and anti-static PE pipe, kraft paper box, anti-static, easy to preserve, recyclable.

    Purchase:

    400-9929-667

    VIDEO

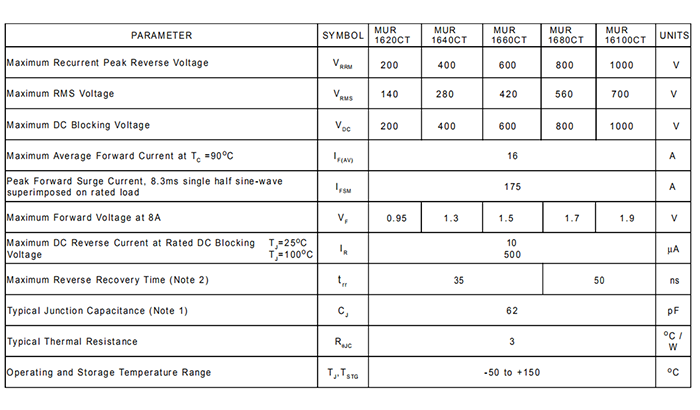

    PRODUCT PARAMETERS

    Video content details:

    ASEMI brand MB6S,MBS series,Environmentally friendly imported chip, export quality, GPP chip, environmentally friendly and reliable, high stability, highly consistent product dispersion. This product original packing genuine product, the quality guarantee high stability and the reliability.Welcome to apply for free sample test.

    Video content details:

    ASEMI brand MB6S,MBS series,Environmentally friendly imported chip, export quality, GPP chip, environmentally friendly and reliable, high stability, highly consistent product dispersion. This product original packing genuine product, the quality guarantee high stability and the reliability.Welcome to apply for free sample test.

    MUR1660-规格书

    DETAIL

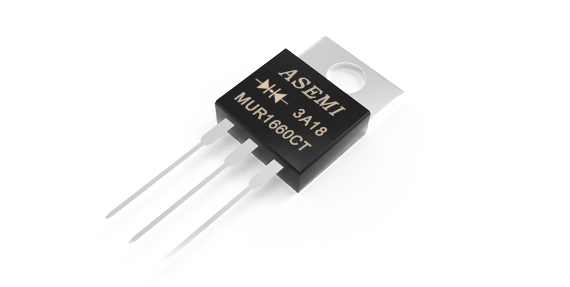

    MUR1660CT 6小图1

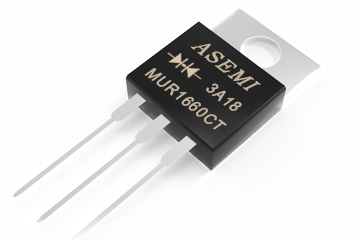

    Super fast recovery diode MUR1660CT

    electrical parameters 16A 600V

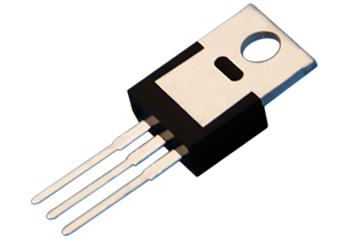

    MUR1660CT 6小图2

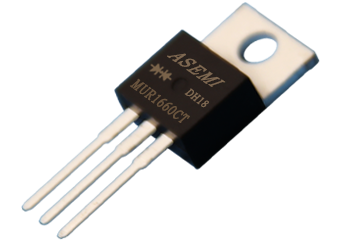

    Laser marking, fadeless, vinyl material; Epoxy resin material, good encapsulation stability

    ASEMI 6小图3

    The pin is anoxic copper with good resistance to bending, oxidation and conduction

    SBT30100VCT4

    1K/box,50pcs/tube,Environmental protection and anti-static PE pipe, kraft paper box, anti-static, easy to preserve, recyclable.

    SBT30100VCT5

    MUR1660CT: 5K/CTN Material: kraft paper, resistant to pressure, abrasion and impact

    SBT30100VCT6

    Packing:1K/box Carton: environmental protection, sealed material Size:56.4*15.0*4.1cm

    DESVRIPTION

    MUR1660CT 详解1
    MUR1660CT 详解2
    GREEN LASER PRINTER

    laser marking, non-fading, to solve the ink screen printing easy fade

    high production efficiency of laser marking, short delivery time, solve the problem of long delivery time and low efficiency of ink printing

    ADVANCED PLASTIC PACKAGING

    disposable injection molding with epoxy resin material

    good flame retardant performance, high strength, high temperature resistance

    PURE OXYGEN-FREE COPPER PINS

    oxygen free copper, excellent electrical conductivity

    pin thickening design, thickness up to 0.25mm, can work for a long time without heating

    the LOGO of the original "ASEMI" brand in Taiwan

    A = advanced

    SEMI = semiconductor

    the figure shows the symbol of common cathod diode

    Represents input at the right end and output at the left end

    Means that there is one diode integrated inside

    PRODUCT ANALYSIS

    [MUR1660CT] represents the complete model of the product

    [MUR] stands for the  Super fast recovery diode

    [16] means its forward current is 16a

    [60] represents its reverse withstand voltage is 600V

    [CT] represents it's belong to TO-220AB plastic package

    SIZE

    220AB-H 尺寸图 1
  • Body Height :

    15.00mm
  • Body Width :

    10.16mm
  • Lead Length :

    13.60mm
  • Positioning Hole Height:

    16.00mm
  • 220AB-H 尺寸图2
  • Body Thickness:

    4.57mm
  • Lead Spacing:

    2.54mm
  • Lead Thickness:

    0.62mm

  • PROCESS

    Product

    stability

    Product stability

    Adopt Taiwan GPP wave chip, the product continues to be stable

    Accurate product quantity

    Accurate product quantity

    Strict packaging inspection procedures to ensure that the product quantity is accurate, packaging without damage

    One-step injection molding

    One-step injection molding

    Automated equipment supports injection molding in one step

    Passed 6 quality checks

    Passed 6 quality
    checks

    12 parameters such as Vb, Io, If, Vf, and Ir are detected through 6 channels, and ΔV is controlled within 80V to improve the consistency and reliability of 4 chips.

    Perfect interpersonal interaction

    Perfect interpersonal interaction

    Reinforcement, cutting, separation, perfect interpersonal interaction process

    PRODUCT PK

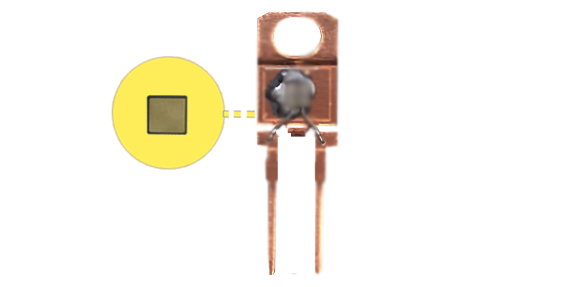

    ASEMI AC 芯片1 ASEMI AC 芯片2

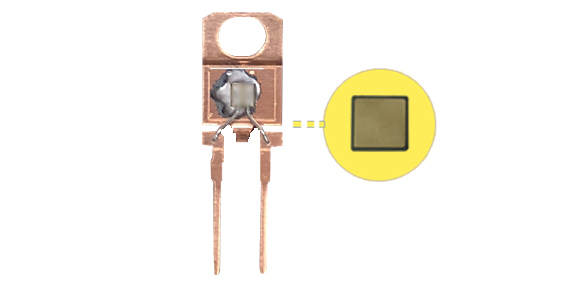

    ASEMI adopts 84mil twin cells high-quality large chip, with good parameter consistency and stable and efficient output

    Use inferior 80mil small chip,Inferior chip easy to heat after long-time working serious, and will damaged the machine

    MUR1660CT PK 打标PK 2

    ASEMI uses laser marking, environmentally friendly, non-fading, and prevents refurbishment

    Inferior and easy to drop word will pullute PCB board,and also exist a problem of malicious renovation

    引脚PK 1 ASEMI 引脚PK 2

    ASEMI uses a high-purity oxygen-free copper frame and pins, with good electrical conductivity and high strength of thickened pins

    Ordinary steel is easy to be oxidize and virtual weld, the strength is low then easy to break

    PK7 PK8

    The ASEMI factory uses Jianding and Guankui high-precision equipment to test 18 key electrical data simultaneously

    Other equipment has low precision, the electrical parameter detection is not strict, and the quality consistency is poor

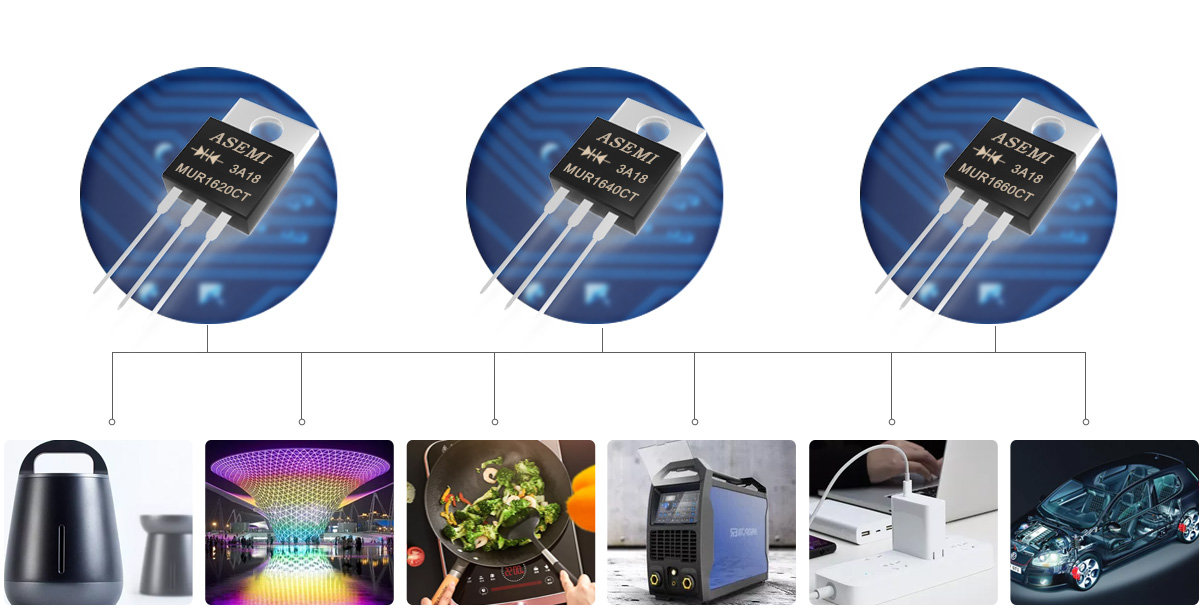

    APPLICATION

    Industrial equipment

    Led lamps and lanterns

    Induction cooker

    Electric welding machine

    Notebook power

    Automobile industry

    MUR1660CT-应用领域
  • lo

    16A
  • VRRM

    200V~1200V
  • IFSM

    125A
  • lr

    10ua
  • Temperature

    -40℃~170℃
  • PARTNER

    CONTACT US

    MUR1660CT,MUR1640CT,MUR1620CT, ASEMI Fast recovery diode

    Parameter specification: current:16A voltage: 200V~1200V MOP:1Kpcs/box

    Application in the field of small current products: low power switching mode power supply, power adapter, led lamp rectifier, fan, television, indoor air conditioner, household appliances and other related electrical products.

    This product original packing genuine product, the quality guarantee high stability and the reliability.

    Welcome to apply for free sample test.
