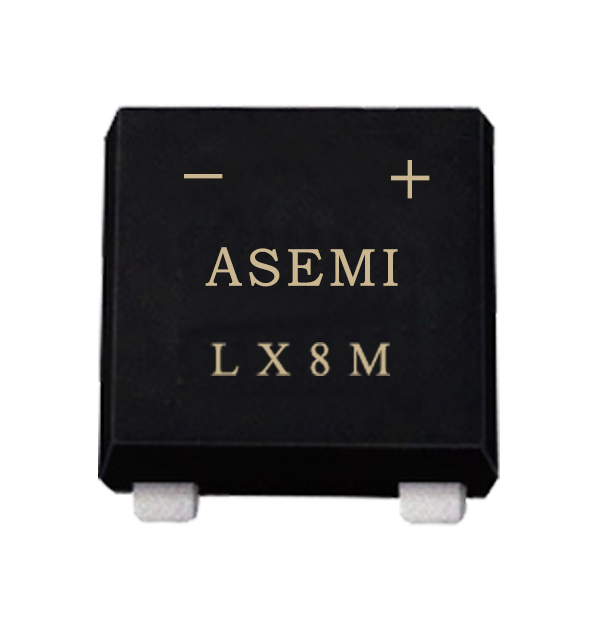

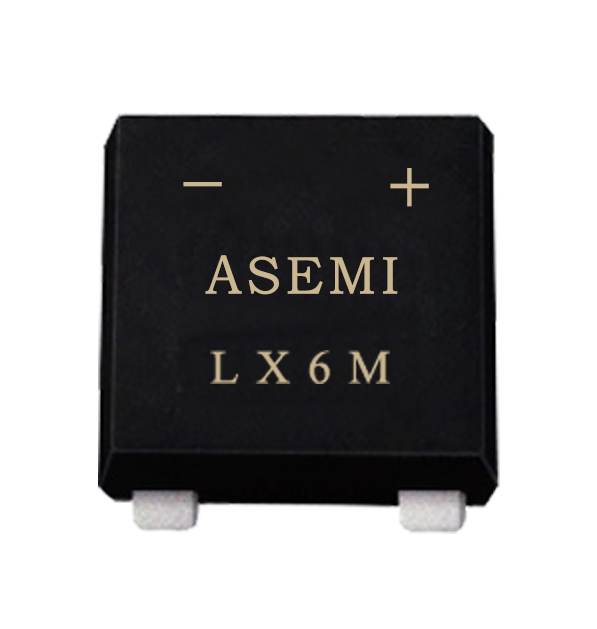

LX10M/LX8M/LX6M/LX4M/LX2M ASEMI SMD bridge rectifier
  • TypeLX10M

    BrandASEMI

    PackageLXM-4

    FeatureSMD bridge rectifier

  • lo VRRM Chip Material Chip Number lr Temperature
    1A 50V~1000V GPP Silicon 4 ≤5ua -50℃~150℃
    VF IFSM Chip Size Lead Number Trr Package
    1.1V 30A 50MIL 4 >500ns 5K/T&R

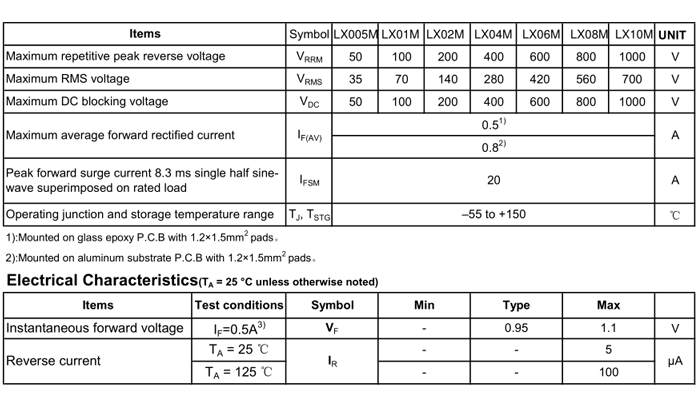

    Rectifier bridge LX10M electrical parameters 10A 50V~1000V

    Laser marking, fadeless, vinyl material; Epoxy resin material, good encapsulation stability

    The pin is anoxic copper with good resistance to bending, oxidation and conduction

    LX10M :100K/CTN Material: kraft paper, resistant to pressure, abrasion and impact

    5K/T&R ,10K/box, Environmental protection and anti-static PE pipe, kraft paper box, anti-static, easy to preserve, recyclable.

    Purchase:

    400-9929-667

    VIDEO

    PRODUCT PARAMETERS

    Video content details:

    ASEMI brand MB6S,MBS series,Environmentally friendly imported chip, export quality, GPP chip, environmentally friendly and reliable, high stability, highly consistent product dispersion. This product original packing genuine product, the quality guarantee high stability and the reliability.Welcome to apply for free sample test.

    Video content details:

    ASEMI brand MB6S,MBS series,Environmentally friendly imported chip, export quality, GPP chip, environmentally friendly and reliable, high stability, highly consistent product dispersion. This product original packing genuine product, the quality guarantee high stability and the reliability.Welcome to apply for free sample test.

    规格书

    DETAIL

    6-1

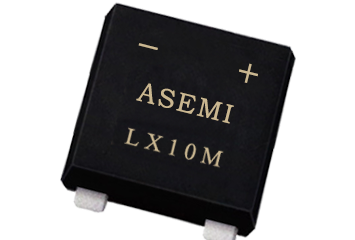

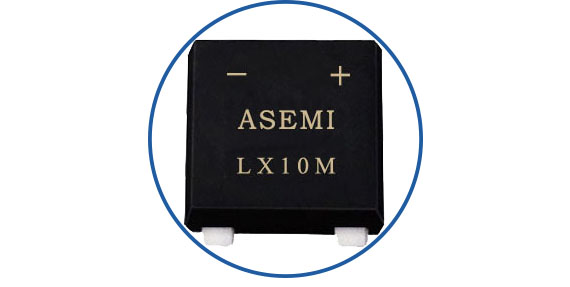

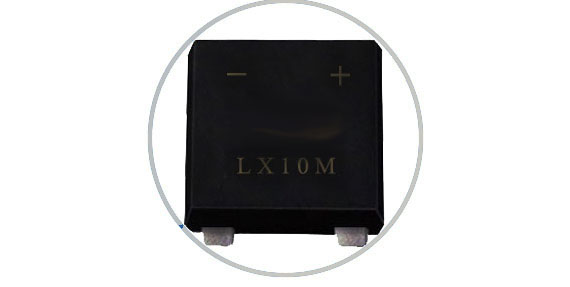

    SMD bridge rectifier LX10M

    electrical parameters 1.0A 1000V

    6-2

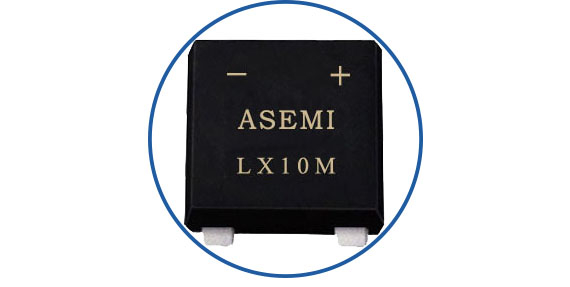

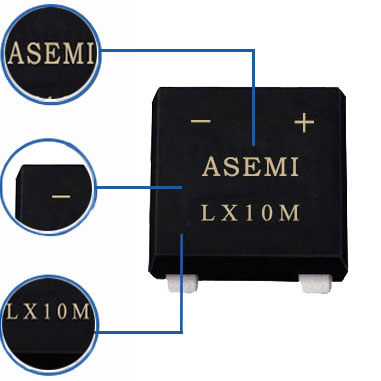

    Laser marking, fadeless, vinyl material; Epoxy resin material, good encapsulation stability

    6-3

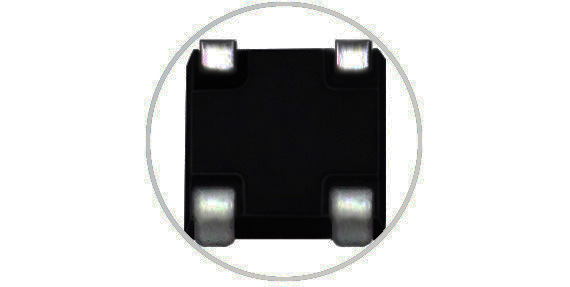

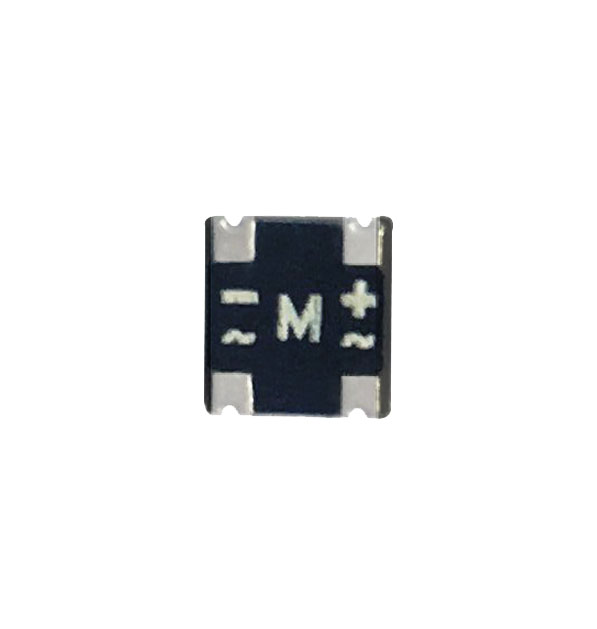

    The pin is anoxic copper with good resistance to bending, oxidation and conduction

    6-4

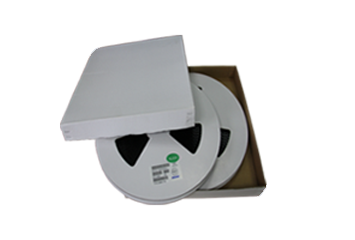

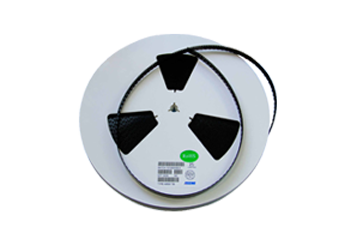

    5K/T&R,Environmental protection and anti-static PE pipe, kraft paper box, anti-static

    6-5

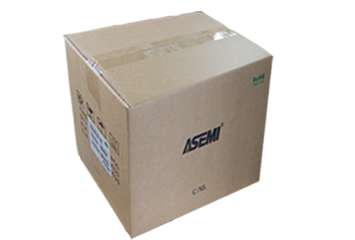

    LX10M:100K/CTN Material: kraft paper, resistant to pressure, abrasion and impact

    6-6

    Packing:5K/box Carton: environmental protection, sealed material Size:33.8*33.8cm

    DESVRIPTION

    LX10M详解1
    LX10M详解2
    GREEN LASER PRINTER

    laser marking, non-fading, to solve the ink screen printing easy fade

    high production efficiency of laser marking, short delivery time, solve the problem of long delivery time and low efficiency of ink printing

    ADVANCED PLASTIC PACKAGING

    disposable injection molding with epoxy resin material

    good flame retardant performance, high strength, high temperature resistance

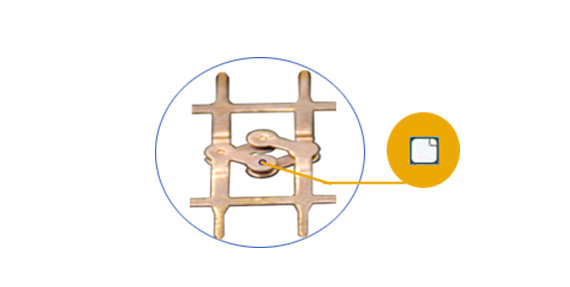

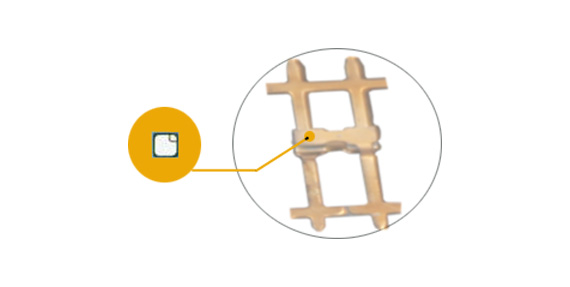

    PURE OXYGEN-FREE COPPER PINS

    oxygen free copper, excellent electrical conductivity

    pin thickening design, thickness up to 0.25mm, can work for a long time without heating

    the LOGO of the original "ASEMI" brand in Taiwan

    A = advanced

    SEMI = semiconductor

    【UL US safety certification LOGO 】

    【Safety experiment and appraisal authority】

    【 Safety inspection product yield prompt 】

    PRODUCT ANALYSIS

    [LX10M] represents the complete model of the product

    [LXM]For the way its products are packaged

    [   ] means its forward current is 1.0a

    [10] represents its reverse withstand voltage is 1000V

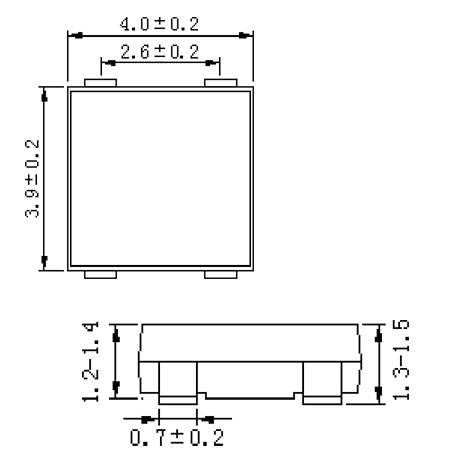

    SIZE

    尺寸图1
  • Lead Spacing :

    2.6mm
  • Body Length :

    3.9mm
  • Body Height :

    1.2mm
  • Body Width:

    4.0mm

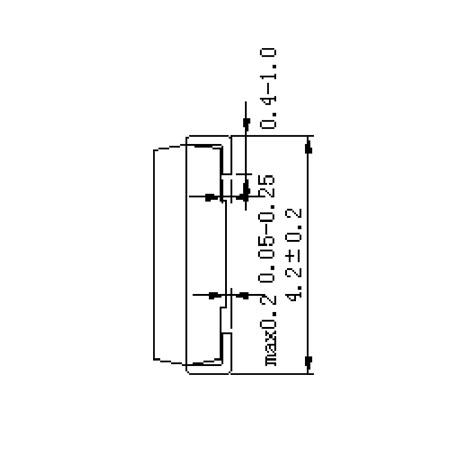

  • 尺寸图2
  • Lead Thickness :

    0.2mm
  • Body Width:

    4.2mm
  • Body Length:

    3.9mm

  • PROCESS

    Product

    stability

    Product stability

    Adopt Taiwan GPP wave chip, the product continues to be stable

    Accurate product quantity

    Accurate product quantity

    Strict packaging inspection procedures to ensure that the product quantity is accurate, packaging without damage

    One-step injection molding

    One-step injection molding

    Automated equipment supports injection molding in one step

    Passed 6 quality checks

    Passed 6 quality
    checks

    12 parameters such as Vb, Io, If, Vf, and Ir are detected through 6 channels, and ΔV is controlled within 80V to improve the consistency and reliability of 4 chips.

    Perfect interpersonal interaction

    Perfect interpersonal interaction

    Reinforcement, cutting, separation, perfect interpersonal interaction process

    PRODUCT PK

    PK图1 PK图2

    ASEMI adopts 50mil high-quality large chip, with good parameter consistency and stable and efficient output

    Inferior chip easy to heat after long-time working serious, and will damaged the machine

    PK图3 PK图4

    ASEMI uses laser marking, environmentally friendly, non-fading, and prevents refurbishment

    Inferior and easy to drop word will pullute PCB board,and also exist a problem of malicious renovation

    PK图5 PK图6

    ASEMI uses a high-purity oxygen-free copper frame and pins, with good electrical conductivity and high strength of thickened pins

    Ordinary steel is easy to be oxidize and virtual weld, the strength is low then easy to break

    MB6S PK7 MB6S PK8

    The ASEMI factory uses Jianding and Guankui high-precision equipment to test 18 key electrical data simultaneously

    Other equipment has low precision, the electrical parameter detection is not strict, and the quality consistency is poor

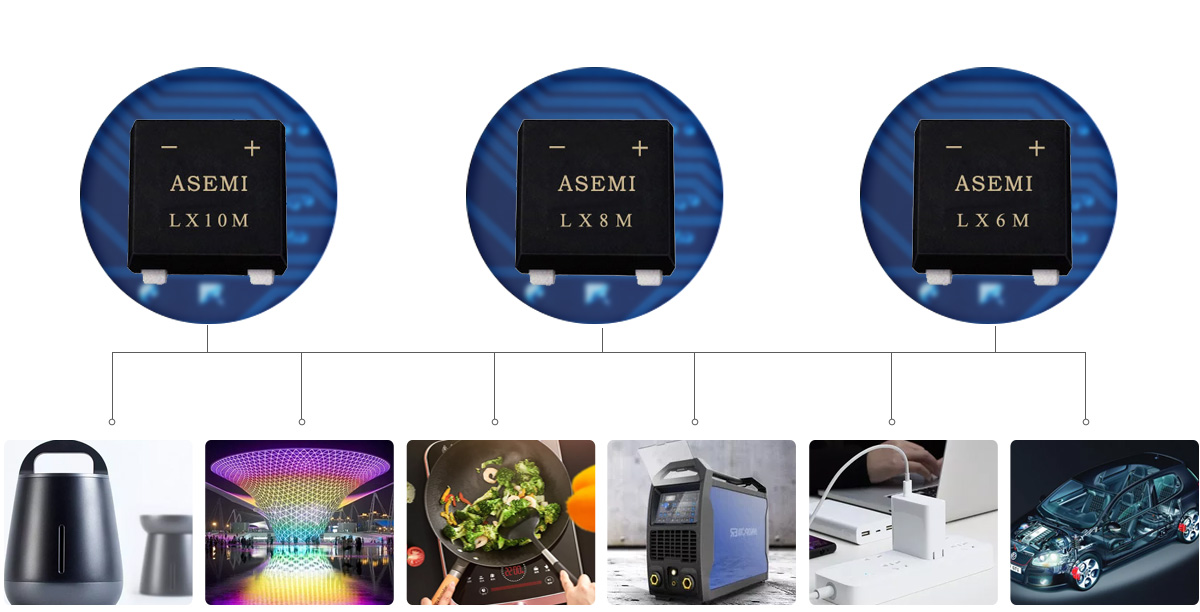

    APPLICATION

    Industrial equipment

    Led lamps and lanterns

    Induction cooker

    Electric welding machine

    Notebook power

    Automobile industry

    应用领域
  • lo

    1A
  • VRRM

    50V~1000V
  • IFSM

    30A
  • lr

    ≤5ua
  • Temperature

    -50℃~150℃
  • PARTNER

    CONTACT US

    LX10M/LX8M/LX6M/LX4M/LX2M ASEMI SMD bridge rectifier

    LX10M Parameter specification: current:1.0A voltage: 50V~1000V Package:5Kpcs/T&R

    Application in the field of small current products: low power switching mode power supply, power adapter, led lamp rectifier, fan, television, indoor air conditioner, household appliances and other related electrical products.

    This product original packing genuine product, the quality guarantee high stability and the reliability.

    Welcome to apply for free sample test.
