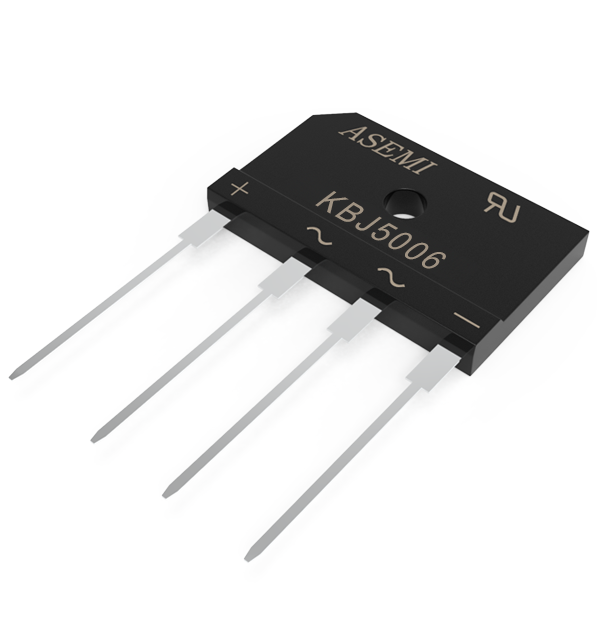

KBJ5010,KBJ5008,KBJ5006,KBJ5004,KBJ5002 ASEMI Bridge Rectifier
  • TypeKBJ5010

    BrandASEMI

    PackageKBJ-4

    Featurethin flat bridge

  • lo VRRM Chip Material Chip Number lr Temperature
    50A 50V~1000V GPP Silicon 4 ≤5ua -50℃~150℃
    VF IFSM Chip Size Lead Number Trr Package
    1.05V 600V 190MIL 4 >500ns 250/box;2000/ctn

    Rectifier bridge KBJ5010 electrical parameters 50.0A 50V~1000V

    Laser marking, fadeless, vinyl material; Epoxy resin material, good encapsulation stability

    The pin is anoxic copper with good resistance to bending, oxidation and conduction

    KBJ5010 :2000/ctn Material: kraft paper, resistant to pressure, abrasion and impact

    250/box,2000/ctn, Environmental protection and anti-static PE pipe, kraft paper box, anti-static, easy to preserve, recyclable.

    Purchase:

    400-9929-667

    VIDEO

    PRODUCT PARAMETERS

    Video content details:

    ASEMI brand MB6S,MBS series,Environmentally friendly imported chip, export quality, GPP chip, environmentally friendly and reliable, high stability, highly consistent product dispersion. This product original packing genuine product, the quality guarantee high stability and the reliability.Welcome to apply for free sample test.

    Video content details:

    ASEMI brand MB6S,MBS series,Environmentally friendly imported chip, export quality, GPP chip, environmentally friendly and reliable, high stability, highly consistent product dispersion. This product original packing genuine product, the quality guarantee high stability and the reliability.Welcome to apply for free sample test.

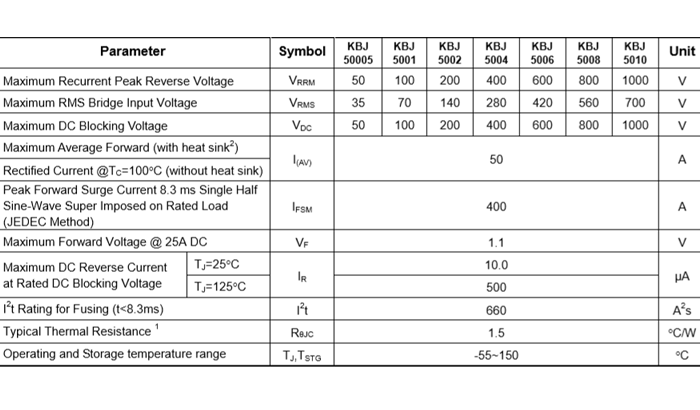

    KBJ5010规格书

    DETAIL

    KBJ5010小图1

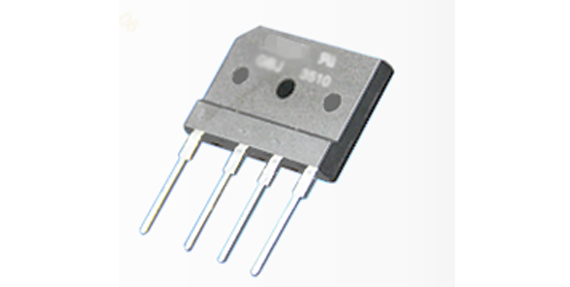

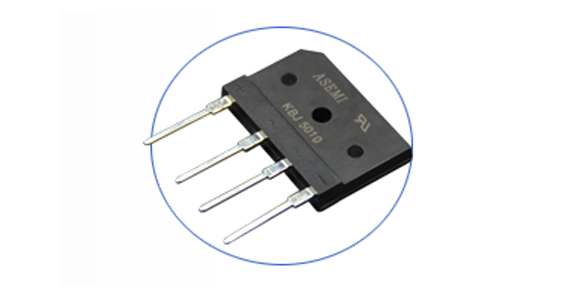

    KBJ rectifier bridge KBJ5010

    electrical parameters 50.0A 1000V

    KBJ5010小图

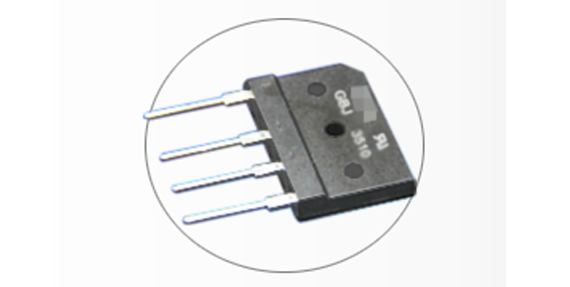

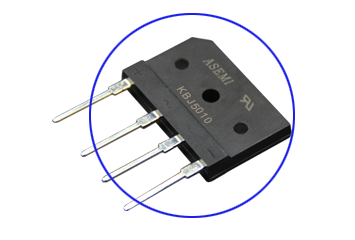

    Laser marking, fadeless, vinyl material; Epoxy resin material, good encapsulation stability

    GBJ6小图3

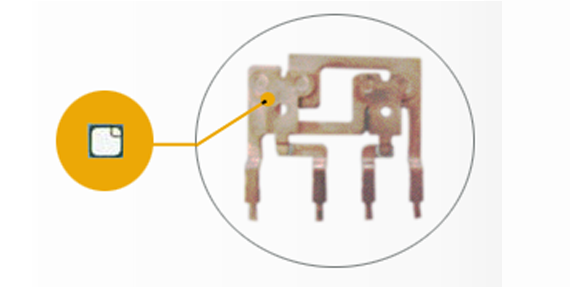

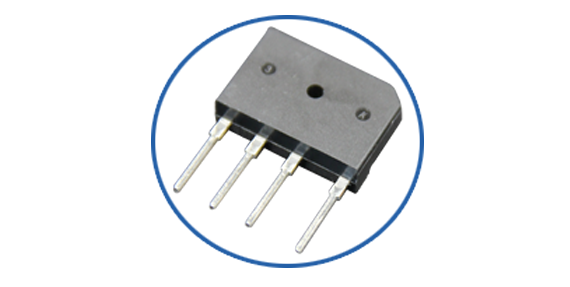

    The pin is anoxic copper with good resistance to bending, oxidation and conduction

    GBJ小图5

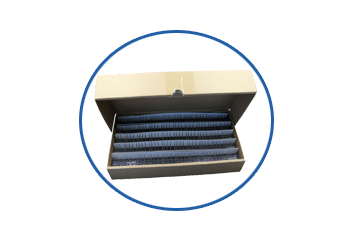

    250/box;2K/ctn,Environmental protection and anti-static PE pipe, kraft paper box, anti-static, easy to preserve, recyclable.

    GBJ1010小图4

    GBJ5010:2K/CTN Material: kraft paper, resistant to pressure, abrasion and impact

    GBJ小图6

    Packing:250/box Carton: environmental protection, sealed material Size:33.8*33.8cm

    DESVRIPTION

    kbj5010详情
    KBJ5010详情2

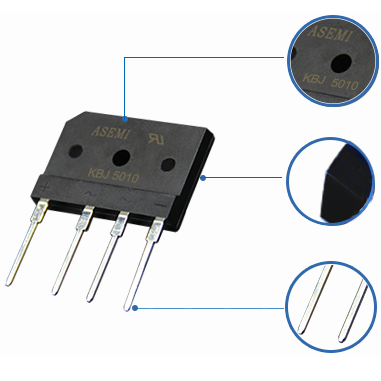

    GREEN LASER PRINTER

    laser marking, non-fading, to solve the ink screen printing easy fade

    high production efficiency of laser marking, short delivery time, solve the problem of long delivery time and low efficiency of ink printing

    ADVANCED PLASTIC PACKAGING

    disposable injection molding with epoxy resin material

    good flame retardant performance, high strength, high temperature resistance

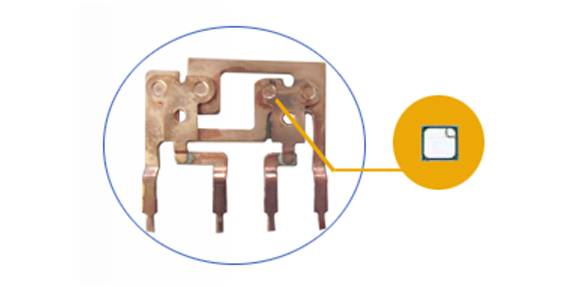

    PURE OXYGEN-FREE COPPER PINS

    oxygen free copper, excellent electrical conductivity

    pin thickening design, thickness up to 0.71mm, can work for a long time without heating

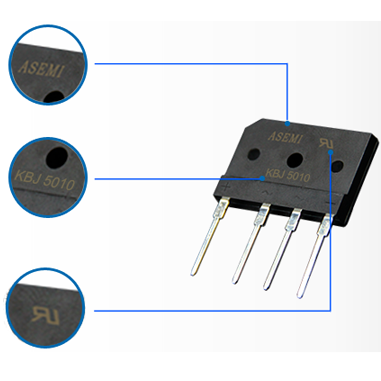

    the LOGO of the original "ASEMI" brand in Taiwan

    A = advanced

    SEMI = semiconductor

    【UL US safety certification LOGO 】

    【Safety experiment and appraisal authority】

    【 Safety inspection product yield prompt 】

    PRODUCT ANALYSIS

    [KBJ5010] represents the complete model of the product

    [KBJ] stands for GBU rectifier bridge

    [50] means its forward current is 50.0a

    [10] represents its reverse withstand voltage is 1000V

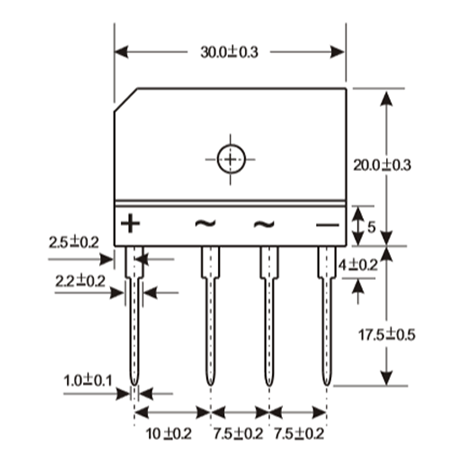

    SIZE

    GBJ产品尺寸
  • Body Width :

    30mm
  • Body Height :

    37.5mm
  • Lead Length :

    17.5mm
  • Lead Space :

    10mm

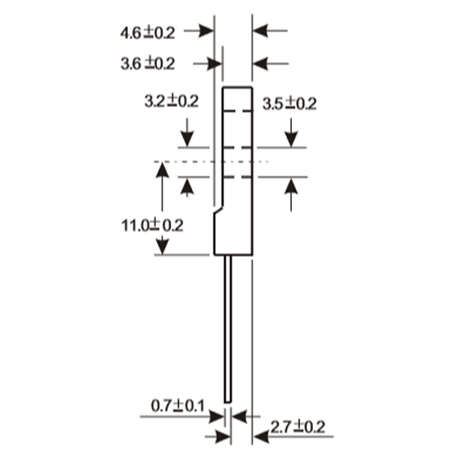

  • GBJ产品尺寸2
  • Body Thickness:

    4.6mm
  • Lead Thickness:

    0.71mm
  • Space Between Leading and Bottom:

    30mm

  • PROCESS

    Product

    stability

    Product stability

    Adopt Taiwan GPP wave chip, the product continues to be stable

    Accurate product quantity

    Accurate product quantity

    Strict packaging inspection procedures to ensure that the product quantity is accurate, packaging without damage

    One-step injection molding

    One-step injection molding

    Automated equipment supports injection molding in one step

    Passed 6 quality checks

    Passed 6 quality
    checks

    12 parameters such as Vb, Io, If, Vf, and Ir are detected through 6 channels, and ΔV is controlled within 80V to improve the consistency and reliability of 4 chips.

    Perfect interpersonal interaction

    Perfect interpersonal interaction

    Reinforcement, cutting, separation, perfect interpersonal interaction process

    PRODUCT PK

    大芯片-通用-2 小芯片-通用-2

    ASEMI adopt 195mil High quality chip, good parameter consistency, stable and efficient output

    Some brands use inferior 180mil Poor quality chip, long time working heat, easy to blow up

    无油墨-修改-3 易掉字-3

    ASEMI USES laser marking, environmental protection, fadeless, prevent renovation

    Some brands of ordinary copper frame pin material, easy oxidation, machine, virtual welding, low strength and easy damage

    GBJ无氧铜-4 易氧化-4通用

    High quality chip, good parameter consistency, stable and efficient output

    Poor quality chip, long time working heat, easy to blow up

    MB6S PK7 MB6S PK8

    ASEMI factory adopts the special equipment of jianding and guankuigao, and tests 18 key electrical data at the same time

    Some brands of common test equipment, detection function is single, and the accuracy is not high, resulting in parameter consistency control is not accurate

    APPLICATION

    Industrial equipment

    Led lamps and lanterns

    Induction cooker

    Electric welding machine

    Notebook power

    Automobile industry

    KBJ5010应用领域
  • lo

    50A
  • VRRM

    50V~1000V
  • IFSM

    600V
  • lr

    ≤5ua
  • Temperature

    -50℃~150℃
  • PARTNER

    CONTACT US

    KBJ5010,KBJ5008,KBJ5006,KBJ5004,KBJ5002 ASEMI Bridge Rectifier

    Parameter specification: current:50.0A voltage: 50V~1000V Package:250/box

    Application in the field of small current products: low power switching mode power supply, power adapter, led lamp rectifier, fan, television, indoor air conditioner, household appliances and other related electrical products.

    This product original packing genuine product, the quality guarantee high stability and the reliability.

    Welcome to apply for free sample test.
