Home 1A~5A SMD SCHOTTKY DIODE

【SS310-SMA】SS310A,SS315A,SS320A,SS34A,SS36A,ASEMI Schottky diode
  • TypeSS310A

    BrandASEMI

    PackagSMA

    Featurelow power schottky diode

  • 正向电流
    (lo)
    反向耐压
    VRRM
    芯片材质
    Material
    芯片个数
    Number
    3A 40V~200V Metal & silicon chip 1
    正向电压
    (VF)
    浪涌电流
    IFSM
    芯片尺寸
    Chip Size
    引线数量
    Lead Number
    0.55V~0.95V 100A 60MIL 2
    漏电流
    (lr)
    操作温度
    Temperature
    恢复时间
    (Trr)
    包装方式
    Package
    10mA -50℃~150℃ >5ns 5Kpcs/T&R

    Product Introduction

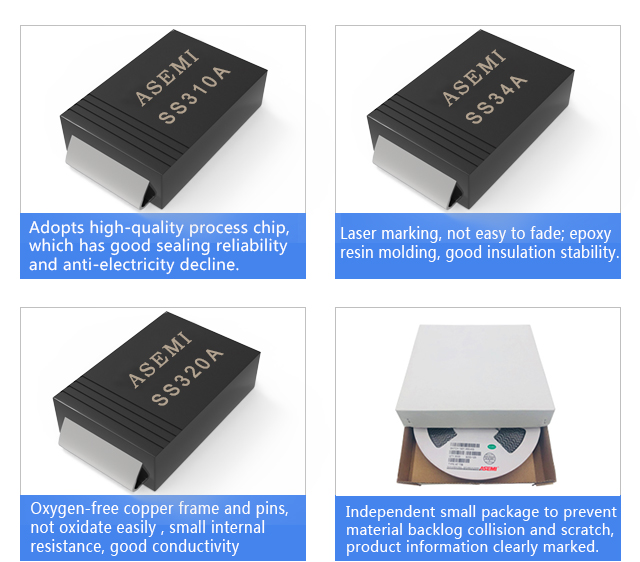

    Adopts high-quality process chip, which has good sealing reliability and prevents electrical degradation

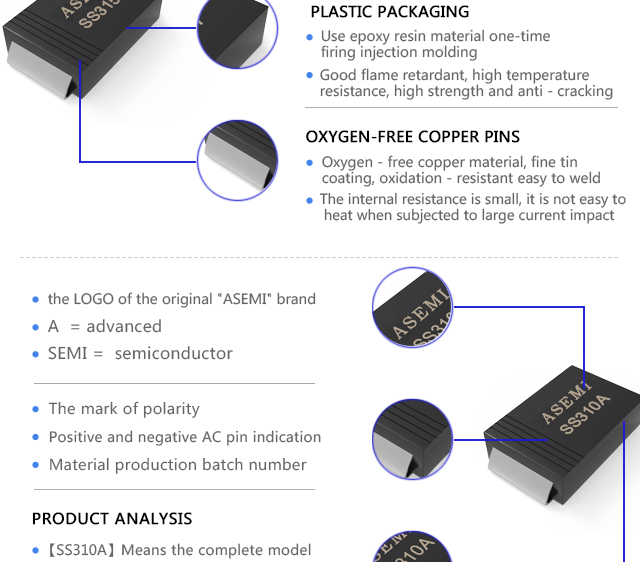

    Laser marking is not easy to fade and prevent refurbishment; epoxy resin grease has good stability

    Oxygen-free copper frame pins, bright tin plating to prevent oxidation, small internal resistance, good conductivity

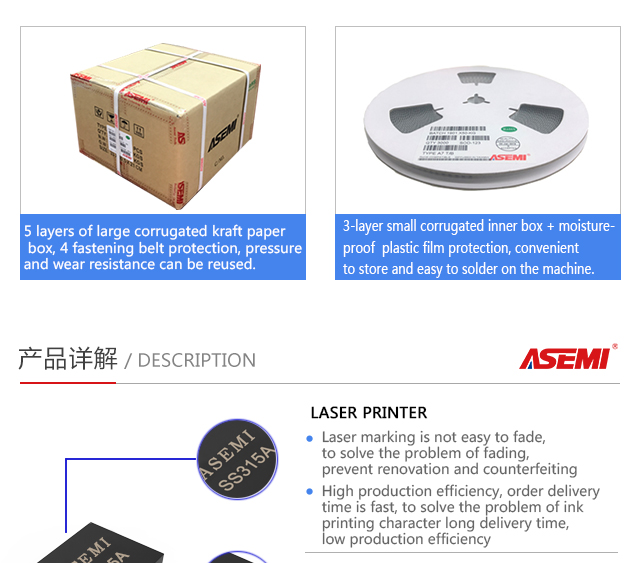

    Adopt 5 layers of large corrugated kraft paper box, 4 layers of restraint belt protection

    The inner box is protected by moisture-proof plastic film, which is convenient for long-term storage in the warehouse

    Product details

    SS310A_01SS310A_02SS310A_03SS310A_04SS310A_05SS310A_06SS310A_07SS310A_08SS310A_09SS310A_10
