S25VB100/S25VB80/S25VB60, ASEMI bridge rectifier
  • TypeS25VB100

    BrandASEMI

    PackagSVB-4

    FeatureSingle phase bridge

  • 正向电流
    (lo)
    反向耐压
    VRRM
    芯片材质
    Material
    芯片个数
    Number

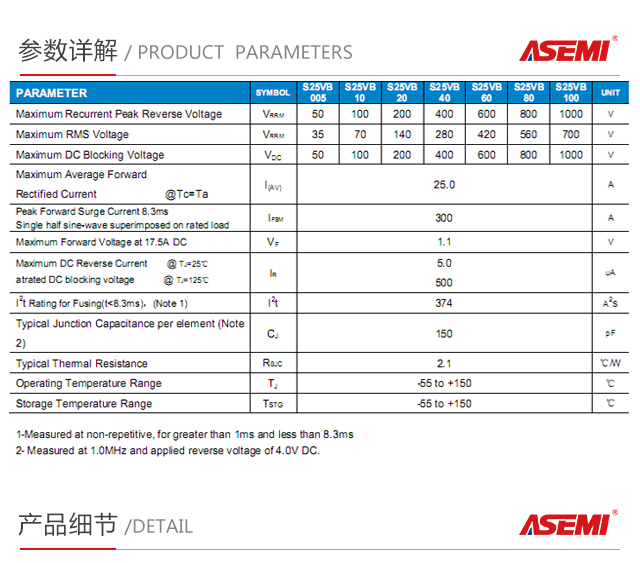

    25A 50V~1000V GPP silicon chip 4
    正向电压
    (VF)
    浪涌电流
    IFSM
    芯片尺寸
    Chip Size
    引线数量
    Lead Number
    1.1V 350A 140MIL 4
    漏电流
    (lr)
    操作温度
    Temperature
    恢复时间
    (Trr)
    包装方式
    Package
    ≤5ua -50℃~150℃ >>500ns 250pcs/box

    Product Introduction

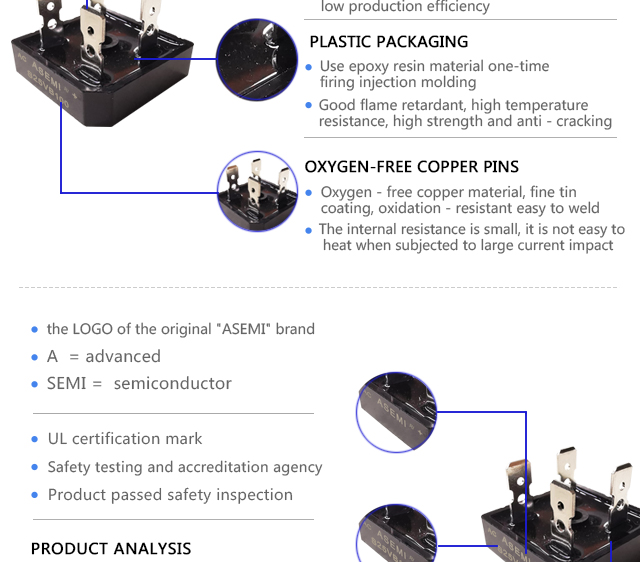

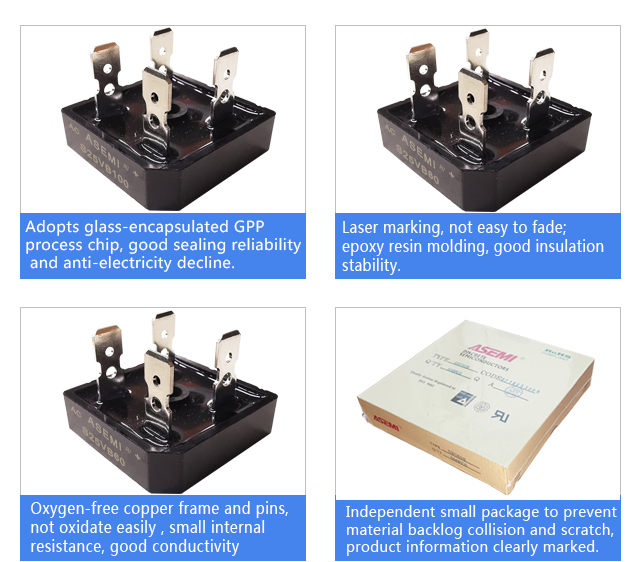

    Adopts high-quality process chip, which has good sealing reliability and prevents electrical degradation

    Laser marking is not easy to fade and prevent refurbishment; epoxy resin grease has good stability

    Oxygen-free copper frame pins, bright tin plating to prevent oxidation, small internal resistance, good conductivity

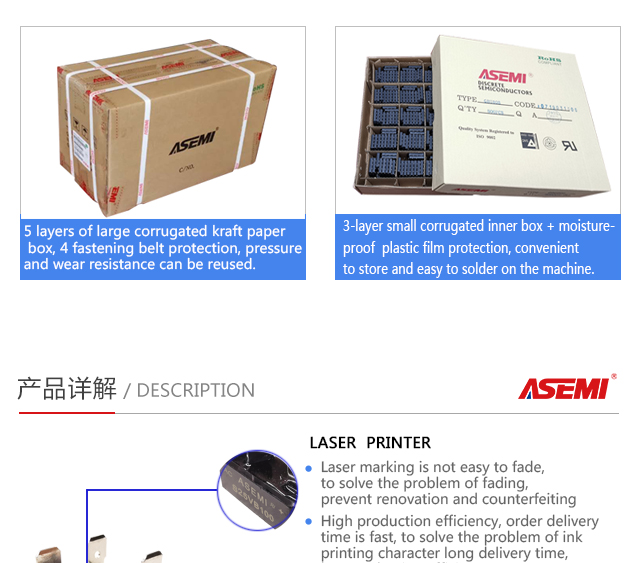

    Adopt 5 layers of large corrugated kraft paper box, 4 layers of restraint belt protection

    The inner box is protected by moisture-proof plastic film, which is convenient for long-term storage in the warehouse

    Product details

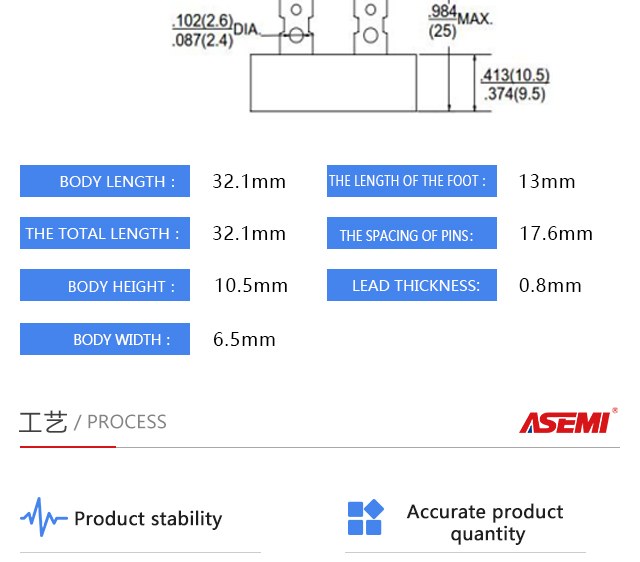

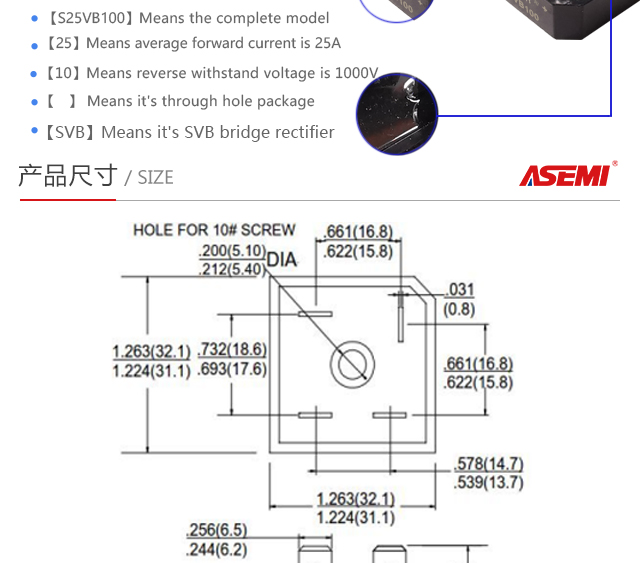

    S25VB100_01

    S25VB100_02

    S25VB100_03

    S25VB100_04

    S25VB100_05

    SVB_06

    S25VB100_07

    S25VB100_08

    S25VB100_09

    S25VB100_10
