[MUR360-DO-27]MUR3100/MUR360/MUR340 ASEMI super fast recovery
  • TypeMUR360

    BrandASEMI

    PackagDO-27

    FeatureSmall current, Axial

  • 正向电流
    (lo)
    反向耐压
    VRRM
    芯片材质
    Material
    芯片个数
    Number
    3A 50V~1000V GPP silicon chip 1
    正向电压
    (VF)
    浪涌电流
    IFSM
    芯片尺寸
    Chip Size
    引线数量
    Lead Number
    1.85V 150A 72MIL 2
    漏电流
    (lr)
    操作温度
    Temperature
    恢复时间
    (Trr)
    包装方式
    Package
    5ua -65℃~150℃ >50ns 1.2Kpcs/box 12Kpcs/ctn

    Product Introduction

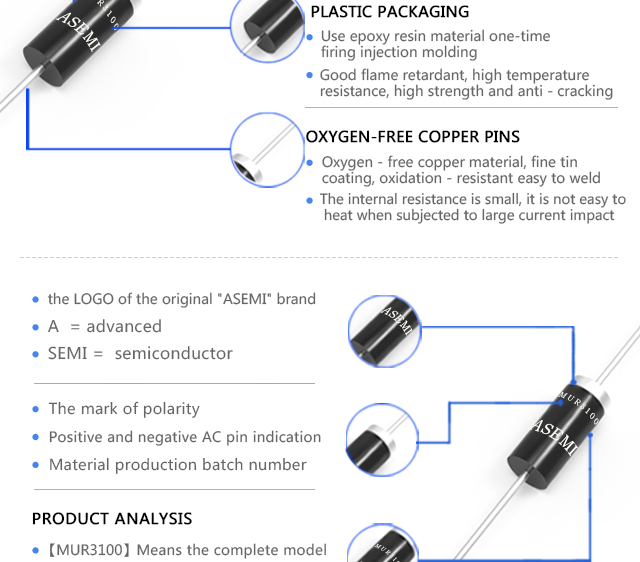

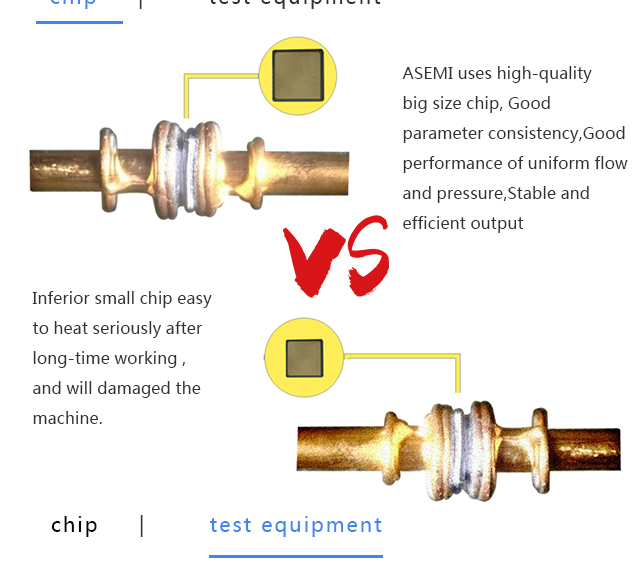

    Adopts high-quality process chip, which has good sealing reliability and prevents electrical degradation

    Silkscreen marking is not easy to fade and prevent refurbishment; epoxy resin grease has good stability

    Oxygen-free copper frame pins, bright tin plating to prevent oxidation, small internal resistance, good conductivity

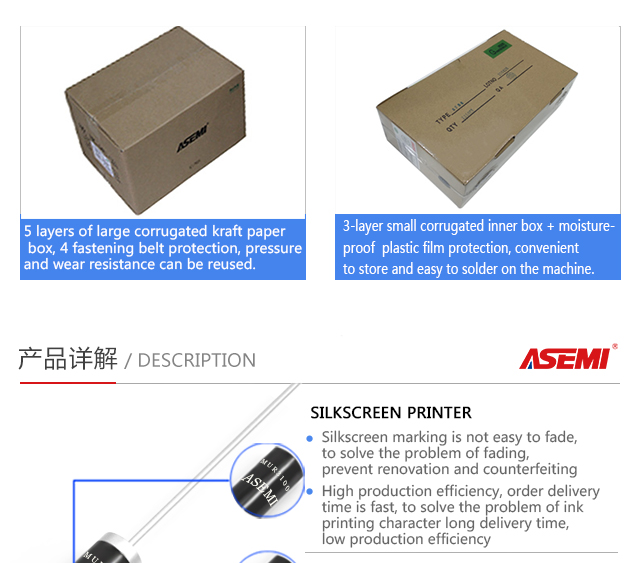

    Adopt 5 layers of large corrugated kraft paper box, 4 layers of restraint belt protection

    The inner box is protected by moisture-proof plastic film, which is convenient for long-term storage in the warehouse

    Product details

    MUR3100_01MUR3100_02MUR3100_03MUR3100_04MUR3100_05MUR3100_06MUR3100_07MUR3100_08MUR3100_09MUR3100_10
