MDST200-16, ASEMI Three Phase Rectifier Moudle

  • TypeMDST200-16

    BrandASEMI

    PackagMDST200

    FeatureThree phase rectifier module

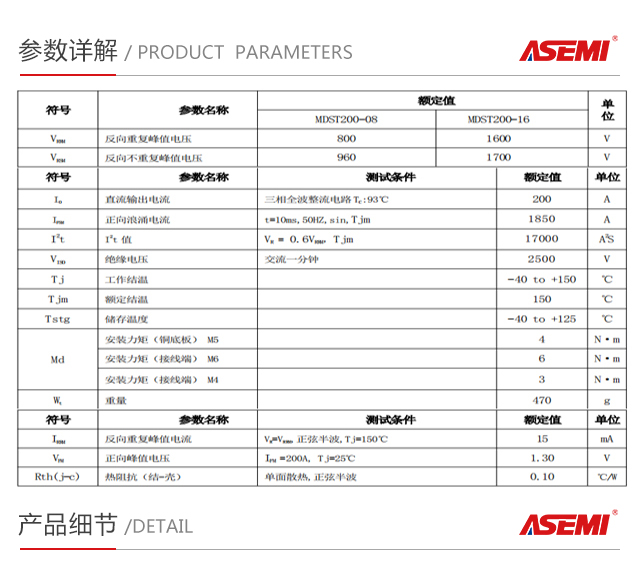

    • 正向电流
    （lo）    		 反向耐压
    VRRM    		 芯片材质
    Material    		 芯片个数
    Number
    200A 800V~1600V GPP(si) 6
    正向电压
    （VF）    		 浪涌电流
    IFSM    		 芯片尺寸
    Chip Size    		 引线数量
    Lead Number
    1.3V 1200A 5
    漏电流
    （lr）    		 操作温度
    Temperature    		 恢复时间
    （Trr）    		 包装方式
    Package
    ≤15ua -55℃~150℃ > 10pcs/box

    Product Introduction

    ● Three-phase rectifier module MDST200-16 electrical parameter 200A 800V~1600V

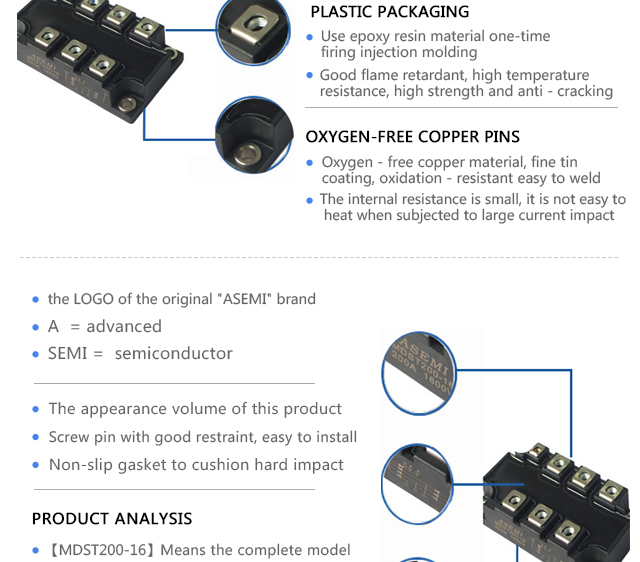

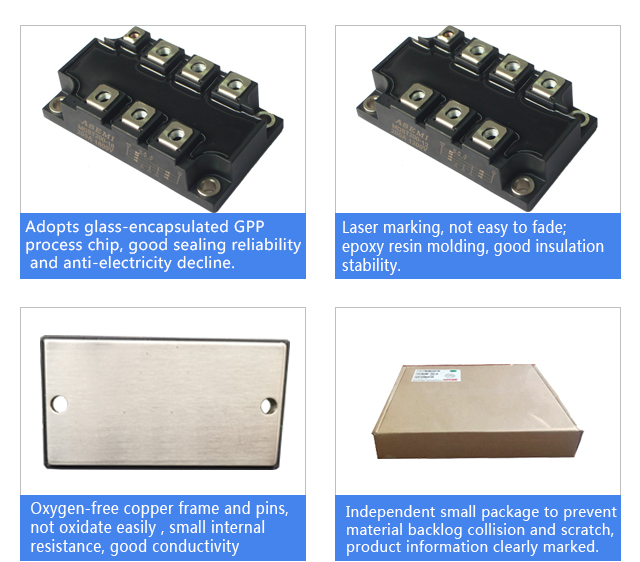

    ●Laser marking, not easily fade, vinyl material: epoxy resin material, good encapsulation stability

    ●The pin is oxygen-free copper with good resistance to bending, oxidation and conduction

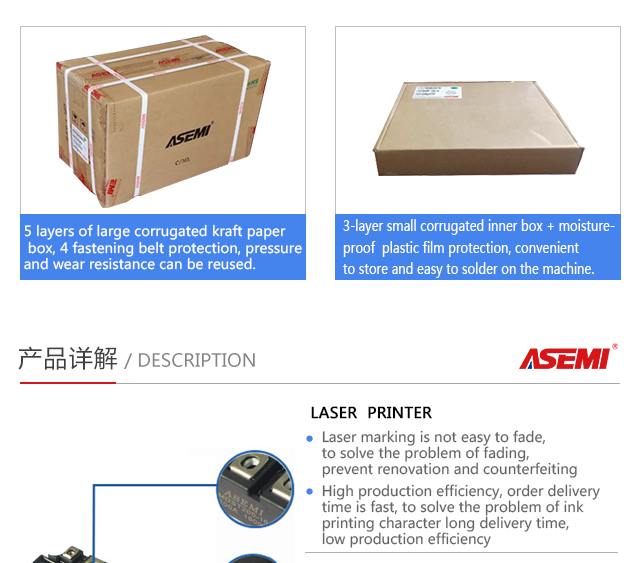

    ●MDST200-16 :100pcs/ctn Material: kraft paper, resistant to pressure, abrasion and impact

    ●10pcs/box,100pcs/ctn , anti-static PE pipe, kraft paper box, anti-static, easy to preserve, recyclable.

    Product details

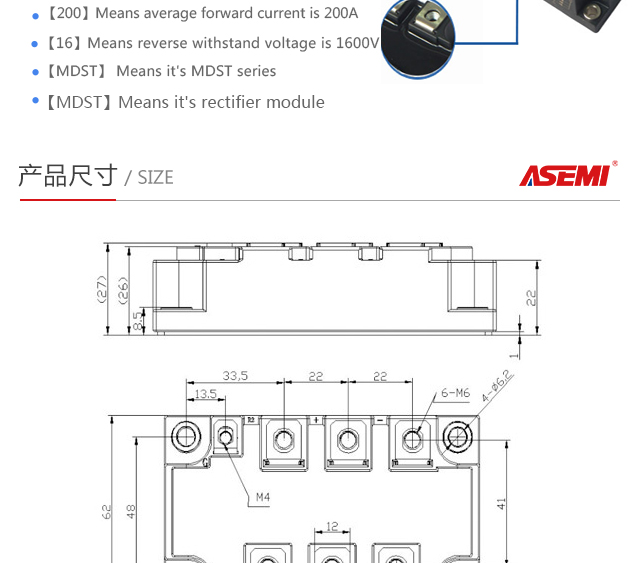

    MDST200-16_01MDST200-16_02MDST200-16_03MDST200-16_04MDST200-16_05MDST200-16_06MDST200-16_07MDST200-16_08MDST200-16_09MDST200-16_10
