Home 75-500A MDS RECTIFIER MOUDLE

MDS500-16,MDS400-16, ASEMI Three Phase Rectifier Module

  • TypeMDS500-16

    BrandASEMI

    PackagM34

    FeatureThree phase rectifier bridge

    • 正向电流
    （lo）    		 反向耐压
    VRRM    		 芯片材质
    Material    		 芯片个数
    Number
    500A 800V~1600V GPP(si) 6
    正向电压
    （VF）    		 浪涌电流
    IFSM    		 芯片尺寸
    Chip Size    		 引线数量
    Lead Number
    1.3V 1600A 5
    漏电流
    （lr）    		 操作温度
    Temperature    		 恢复时间
    （Trr）    		 包装方式
    Package
    ≤15ua -55℃~150℃ > 10pcs/box

    Product Introduction

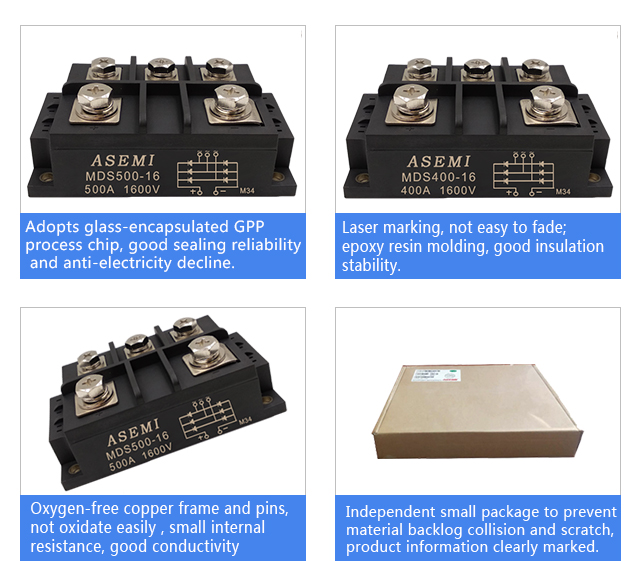

    ● Three-phase rectifier module MDS500-16 electrical parameter 500A 800V~1600V

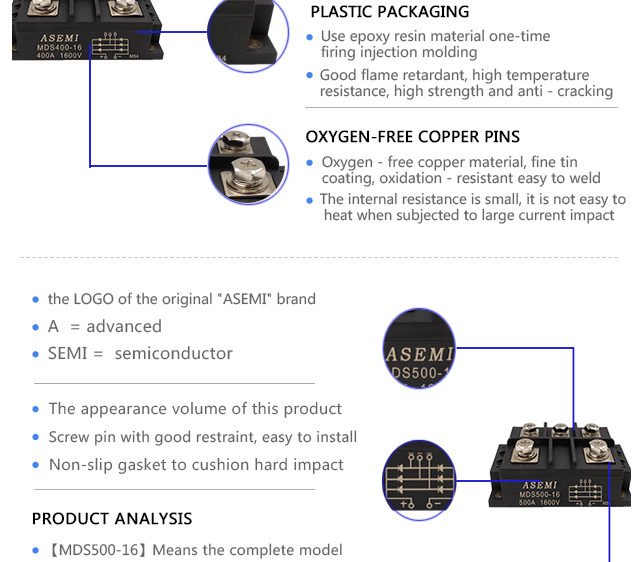

    ●Laser marking, not easily fade, vinyl material: epoxy resin material, good encapsulation stability

    ●The pin is oxygen-free copper with good resistance to bending, oxidation and conduction

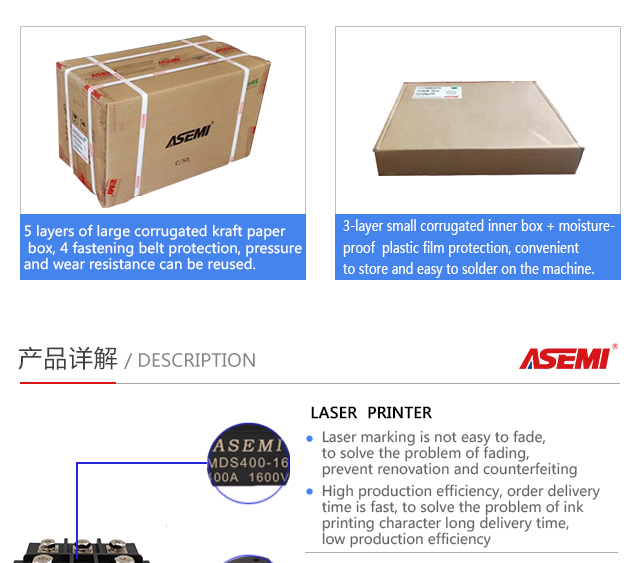

    ●MDS500-16 :100pcs/ctn Material: kraft paper, resistant to pressure, abrasion and impact

    ●10pcs/box,100pcs/ctn , anti-static PE pipe, kraft paper box, anti-static, easy to preserve, recyclable.

    Product details

    MDS500-16_01MDS500-16_02MDS500-16_03MDS500-16_04MDS500-16_05MDS500-16_06MDS500-16_07MDS500-16_08MDS500-16_09MDS500-16_10
