MDQ100-16/MDQ75-16/MDQ60-16 ASEMI Single-phase rectifier module
TypeMDQ100-16
BrandASEMI
PackagM18
FeatureSingle-phase rectifier module
| 正向电流 （lo） |
反向耐压 VRRM |
芯片材质 Material |
芯片个数 Number |
|---|---|---|---|
| 100A | 800V~1600V | GPP silicon chips | 4 |
| 正向电压 （VF） |
浪涌电流 IFSM |
芯片尺寸 Chip Size |
引线数量 Lead Number |
| 1.2V | 1200A | 4 | |
| 漏电流 （lr） |
操作温度 Temperature |
恢复时间 （Trr） |
包装方式 Package |
| 8mA | -55~+150℃ | >>500ns | 10pcs/box 100pcs/ctn |
Product Introduction
● Single-phase rectifier module MDQ100-16 electrical parameter 100A 800V~1600V

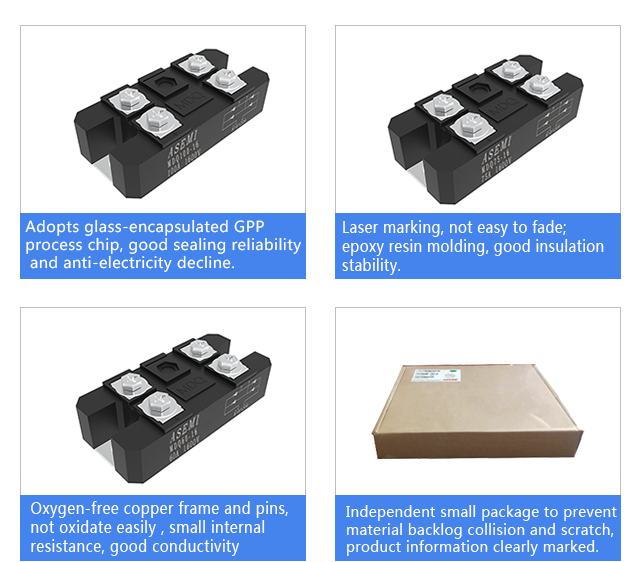

●Laser marking, non-fading easily, vinyl material: epoxy resin material, good encapsulation stability

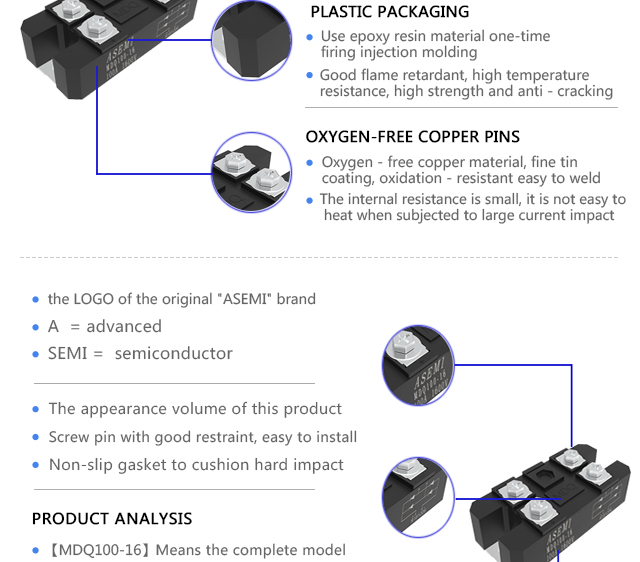

●The pin is oxygen-free copper with good resistance to bending, oxidation and conduction
●MDQ100-16 :100pcs/ctn Material: kraft paper, resistant to pressure, abrasion and impact
●10pcs/box, 100pcs/ctn , anti-static PE pipe, kraft paper box, anti-static, easy to preserve, recyclable.
