MBR40200PT,MBR40150PT/40100PT/4060PT/4045PT,ASEMI Schottky diode
  • TypeMBR40200PT

    BrandASEMI

    PackagTO-247/3P

    FeatureHigh power

  • 正向电流
    (lo)
    反向耐压
    VRRM
    芯片材质
    Material
    芯片个数
    Number
    40A 45V~200V Metal & silicon chip 2 ( separated )
    正向电压
    (VF)
    浪涌电流
    IFSM
    芯片尺寸
    Chip Size
    引线数量
    Lead Number
    0.54V~0.92V 350A 130MIL 3
    漏电流
    (lr)
    操作温度
    Temperature
    恢复时间
    (Trr)
    包装方式
    Package
    10ua -50℃~150℃ >5ns 80pcs/tube.360pcs/box

    Product Introduction

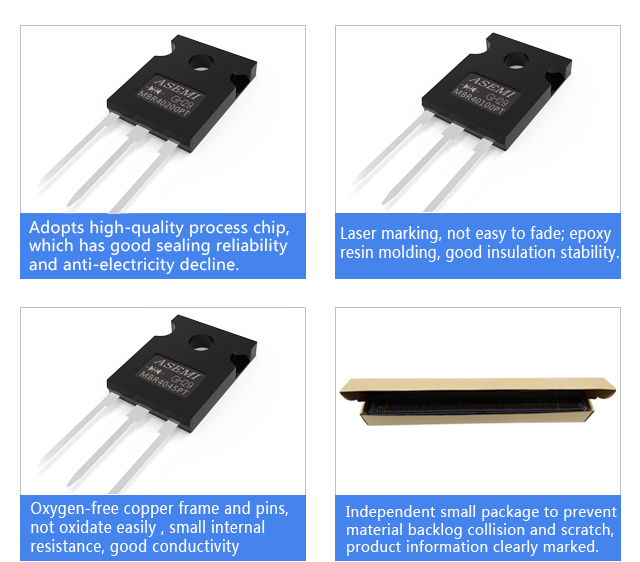

    Adopts high-quality process chip, which has good sealing reliability and prevents electrical degradation

    Laser marking is not easy to fade and prevent refurbishment; epoxy resin grease has good stability

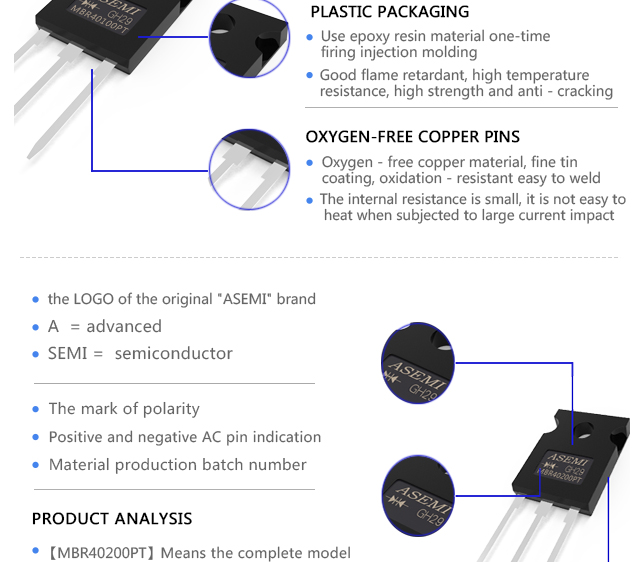

    Oxygen-free copper frame pins, bright tin plating to prevent oxidation, small internal resistance, good conductivity

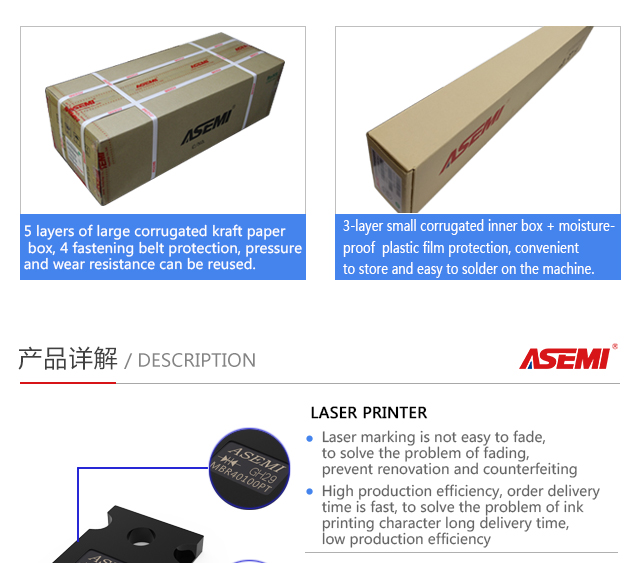

    Adopt 5 layers of large corrugated kraft paper box, 4 layers of restraint belt protection

    The inner box is protected by moisture-proof plastic film, which is convenient for long-term storage in the warehouse

    Product details

    MBR40200PT_01MBR40200PT_02MBR40200PT_03MBR40200PT_04MBR40200PT_05MBR40200PT_06MBR40200PT_07MBR40200PT_08MBR40200PT_09MBR40200PT_10
