KBL610/KBL608/KBL606/KBL604/KBL602, ASEMI bridge rectifier
  • TypeKBL610

    BrandASEMI

    PackagKBL-4

    FeatureDIP bridge rectifier

  • 正向电流
    (lo)
    反向耐压
    VRRM
    芯片材质
    Material
    芯片个数
    Number
    6A 50V~1000V GPP silicon chip 4
    正向电压
    (VF)
    浪涌电流
    IFSM
    芯片尺寸
    Chip Size
    引线数量
    Lead Number
    1.1V 200A 88MIL 4
    漏电流
    (lr)
    操作温度
    Temperature
    恢复时间
    (Trr)
    包装方式
    Package
    >10ua -50℃~150℃ >>500ns 500pcs/box 3000PCS/CTN

    Product Introduction

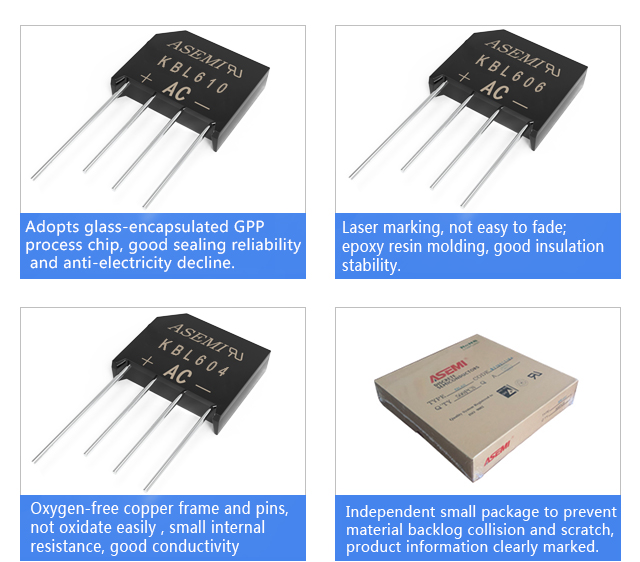

    Adopts glass-encapsulated GPP process chip, which has good sealing reliability and prevents electrical degradation

    Laser marking is not easy to fade and prevent refurbishment; epoxy resin grease has good stability

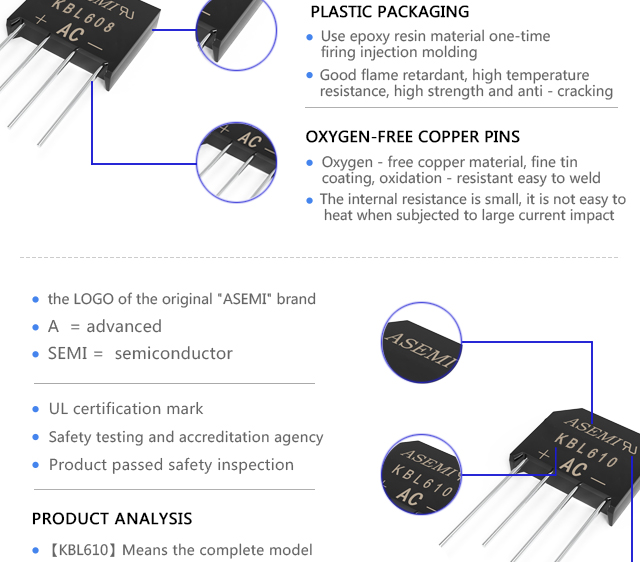

    Oxygen-free copper frame pins, bright tin plating to prevent oxidation, small internal resistance, good conductivity

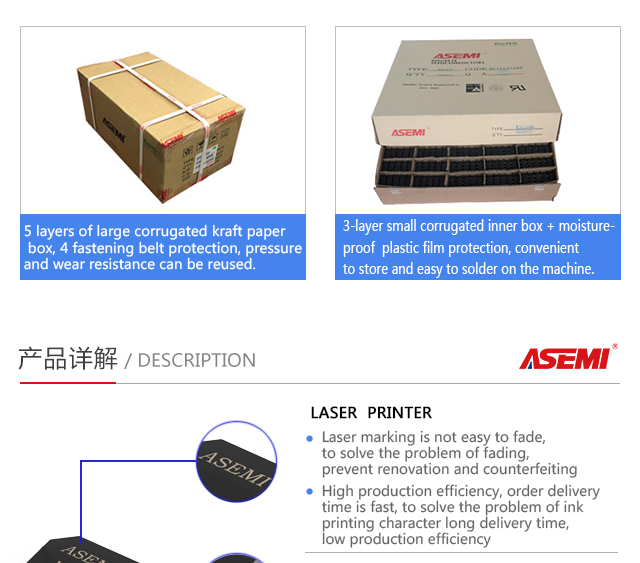

    Adopt 5 layers of large corrugated kraft paper box, 4 layers of restraint belt protection

    The inner box is protected by moisture-proof plastic film, which is convenient for long-term storage in the warehouse

    Product details

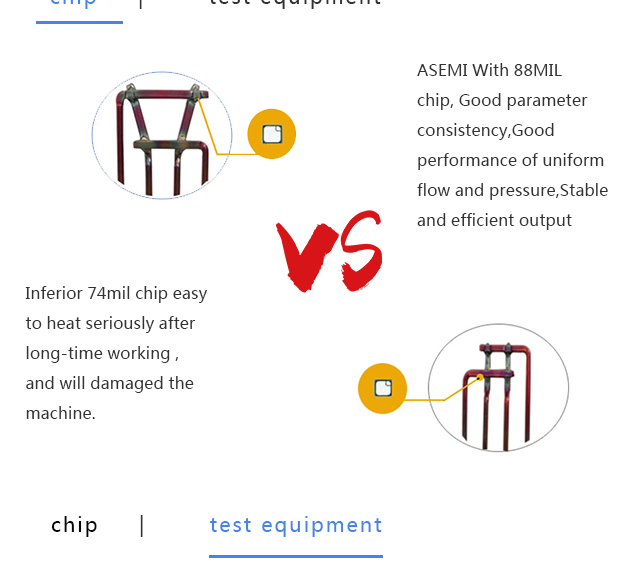

    KBL610_01KBL610_02KBL610_03KBL610_04KBL610_05KBL610_06KBL610_07KBL610_08KBL610_09KBL610_10
