Home 1A~6A SMD FR-SF RECTIFIER DIODE

[GS2MF-SMAF]GS2KF/GS2JF/GS2GF/GS2DF ASEMIrectifier diode
  • TypeGS2MF

    BrandASEMI

    PackagSMAF

    FeatureSmall current, patch

  • 正向电流
    (lo)
    反向耐压
    VRRM
    芯片材质
    Material
    芯片个数
    Number
    2A 50V~1000V GPP Silicon 1
    正向电压
    (VF)
    浪涌电流
    IFSM
    芯片尺寸
    Chip Size
    引线数量
    Lead Number
    1.1V 50A 50MIL 2
    漏电流
    (lr)
    操作温度
    Temperature
    恢复时间
    (Trr)
    包装方式
    Package
    5uA -55~+150℃ >5ns 3K/盘6K/盒

    Product Introduction

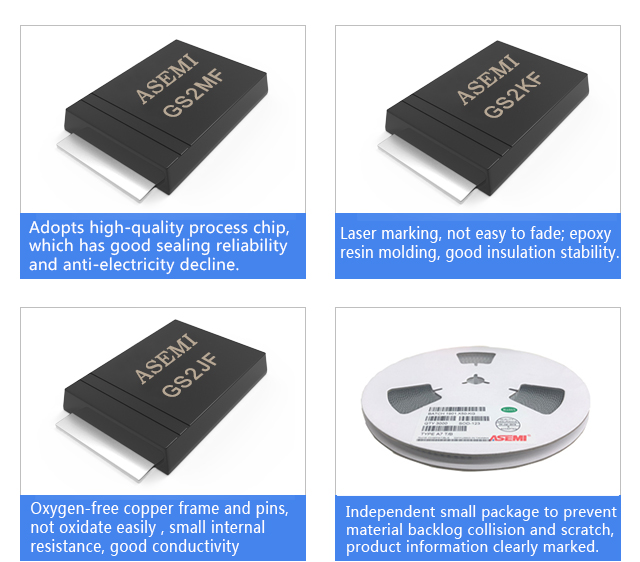

    Adopts high-quality process chip, which has good sealing reliability and prevents electrical degradation

    Laser marking is not easy to fade and prevent refurbishment; epoxy resin grease has good stability

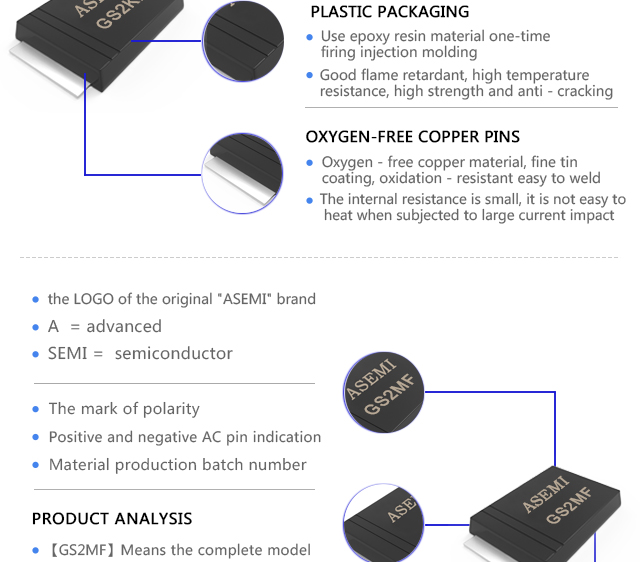

    Oxygen-free copper frame pins, bright tin plating to prevent oxidation, small internal resistance, good conductivity

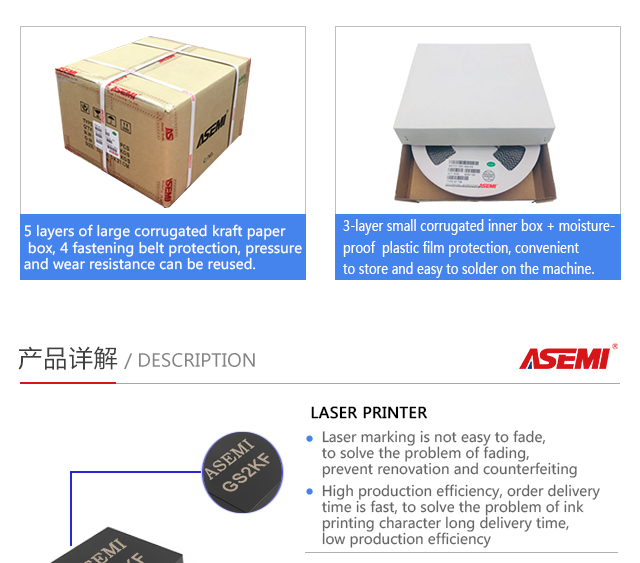

    Adopt 5 layers of large corrugated kraft paper box, 4 layers of restraint belt protection

    The inner box is protected by moisture-proof plastic film, which is convenient for long-term storage in the warehouse

    Product details

    GS2MF_01

    GS2MF_02

    GS2MF_03

    GS2MF_04

    GS2MF_05

    GS2MF_06

    GS2MF_07

    GS2MF_08

    GS2MF_09

    GS2MF_10
