Home 15A ~25A DIP BRIDGE RECTIFIER

GBU2510,GBU2508,GBU2506,GBU2504,GBU2502 ASEMI Bridge Rectifier
  • TypeGBU2510

    BrandASEMI

    PackagGBU-4

    Featurethin flat bridge

  • 正向电流
    (lo)
    反向耐压
    VRRM
    芯片材质
    Material
    芯片个数
    Number
    25A 50V~1000V GPP Silicon 4
    正向电压
    (VF)
    浪涌电流
    IFSM
    芯片尺寸
    Chip Size
    引线数量
    Lead Number
    1.05V 400A 130MIL 4
    漏电流
    (lr)
    操作温度
    Temperature
    恢复时间
    (Trr)
    包装方式
    Package
    >10ua -50℃~150℃ >>2000ns 500pcs/box;5000pcs/ctn

    Product Introduction

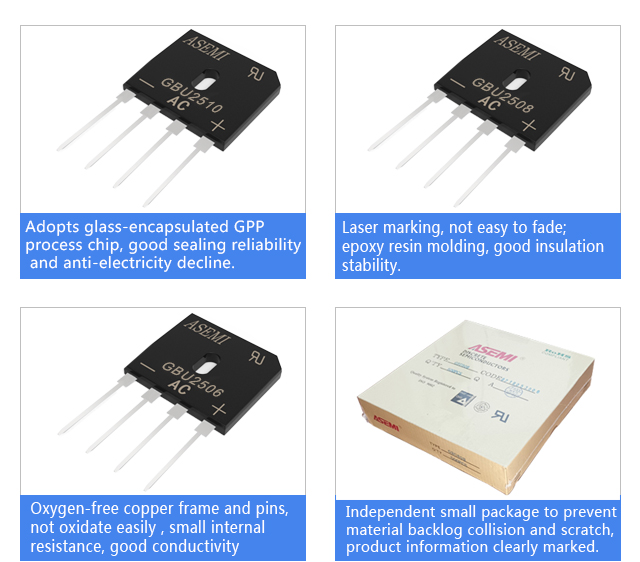

    Adopts high-quality process chip, which has good sealing reliability and prevents electrical degradation

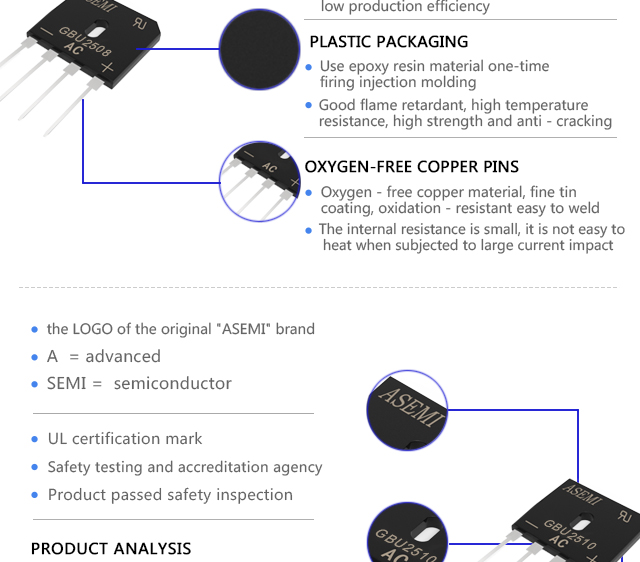

    Laser marking is not easy to fade and prevent refurbishment; epoxy resin grease has good stability

    Oxygen-free copper frame pins, bright tin plating to prevent oxidation, small internal resistance, good conductivity

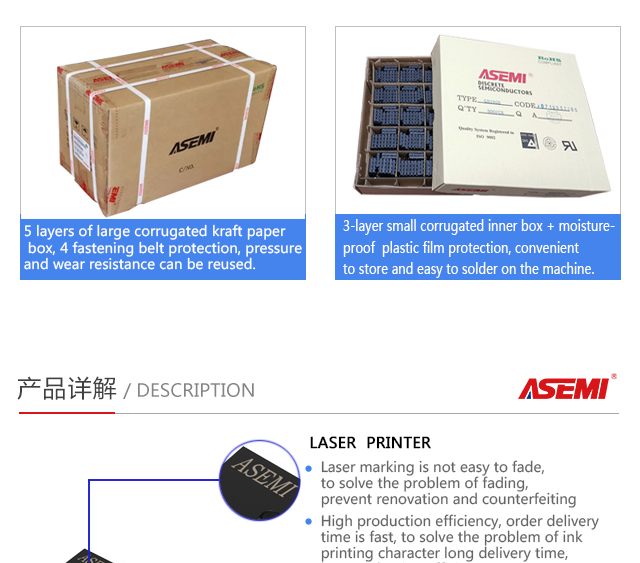

    Adopt 5 layers of large corrugated kraft paper box, 4 layers of restraint belt protection

    The inner box is protected by moisture-proof plastic film, which is convenient for long-term storage in the warehouse

    Product details

    GBU2510_01GBU2510_02GBU2510_03GBU2510_04GBU2510_05GBU_06GBU2510_07GBU2510_08GBU2510_09GBU2510_10
