Home 1A~6A SMD FR-SF RECTIFIER DIODE

[ES2J-SMA] ES2JA,ES2GA,ES2DA,ES2KA, ASEMI ultra fast recovery
  • TypeES2JA

    BrandASEMI

    PackagSMA

    FeatureSuper fast recovery diode

  • 正向电流
    (lo)
    反向耐压
    VRRM
    芯片材质
    Material
    芯片个数
    Number
    2A 50V~600V GPP(si) 1
    正向电压
    (VF)
    浪涌电流
    IFSM
    芯片尺寸
    Chip Size
    引线数量
    Lead Number
    0.95V~1.70V 50A 60MIL 2
    漏电流
    (lr)
    操作温度
    Temperature
    恢复时间
    (Trr)
    包装方式
    Package
    5A -55℃~150℃ >35ns 2000&5000/dish

    Product Introduction

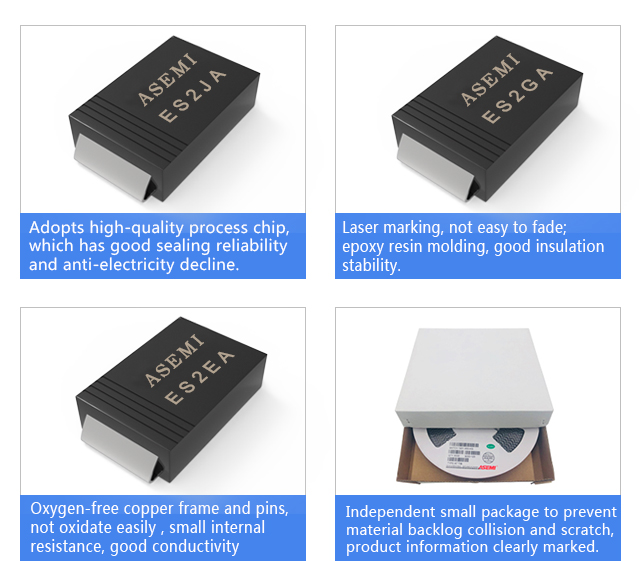

    Adopts high-quality process chip, which has good sealing reliability and prevents electrical degradation

    Laser marking is not easy to fade and prevent refurbishment; epoxy resin grease has good stability

    Oxygen-free copper frame pins, bright tin plating to prevent oxidation, small internal resistance, good conductivity

    Adopt 5 layers of large corrugated kraft paper box, 4 layers of restraint belt protection

    The inner box is protected by moisture-proof plastic film, which is convenient for long-term storage in the warehouse

    Product details

    ES2JA_01ES2JA_02ES2JA_03ES2JA_04ES2JA_05ES2JA_06ES2JA_07ES2JA_08ES2JA_09ES2JA_10
