Home 35A ~50A DIP BRIDGE RECTIFIER

SKBPC5016/SKBPC5014/SKBPC5012/SKBPC5010 ASEMI Three Phase Bridge
  • TypeSKBPC5016

    BrandASEMI

    PackagD-63

    FeatureThree-phase rectifier

  • 正向电流
    (lo)
    反向耐压
    VRRM
    芯片材质
    Material
    芯片个数
    Number

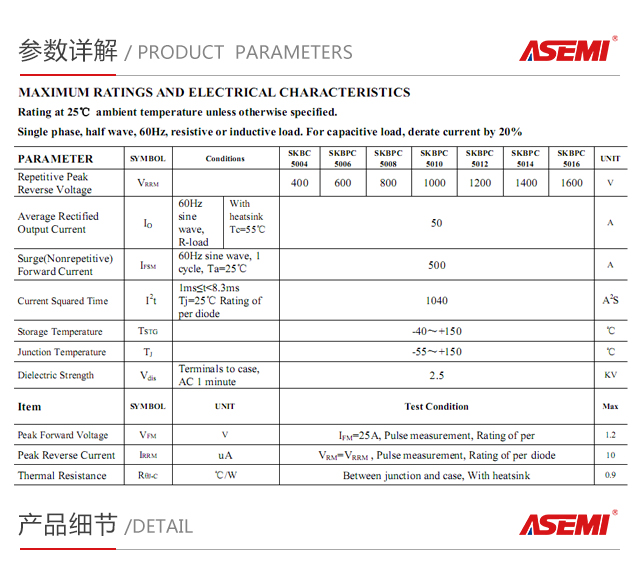

    50A 100V~1600V GPP Silicon 5
    正向电压
    (VF)
    浪涌电流
    IFSM
    芯片尺寸
    Chip Size
    引线数量
    Lead Number
    1.05v 500A 180MIL 5
    漏电流
    (lr)
    操作温度
    Temperature
    恢复时间
    (Trr)
    包装方式
    Package
    500uA -50℃~150℃ >500ns 50pcs/box; 500pcs/ctn

    Product Introduction

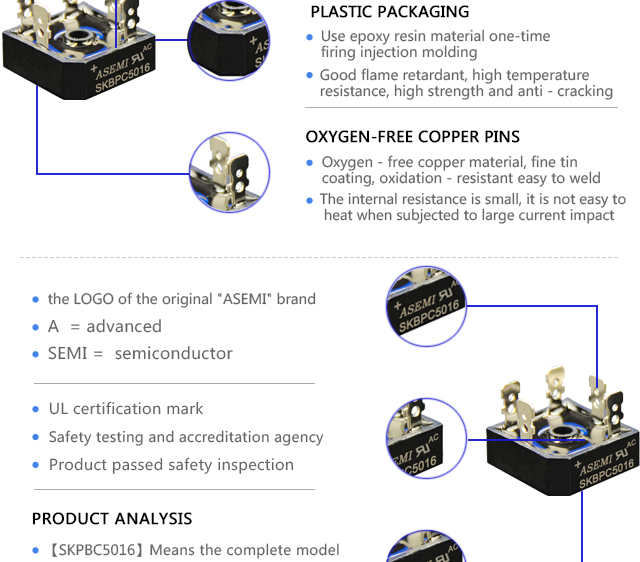

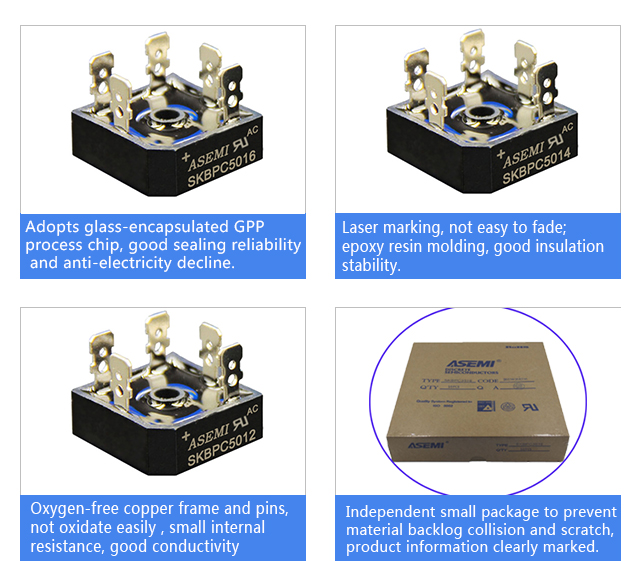

    Adopts high-quality process chip, which has good sealing reliability and prevents electrical degradation

    Laser marking is not easy to fade and prevent refurbishment; epoxy resin grease has good stability

    Oxygen-free copper frame pins, bright tin plating to prevent oxidation, small internal resistance, good conductivity

    Adopt 5 layers of large corrugated kraft paper box, 4 layers of restraint belt protection

    The inner box is protected by moisture-proof plastic film, which is convenient for long-term storage in the warehouse

    Product details

    SKBPC5016_01SKBPC5016_02SKBPC5016_03SKBPC5016_04SKBPC5016_05SKBPC5016_06SKBPC5016_07SKBPC5016_08SKBPC5016_09SKBPC5016_10
