Home 1A~6A SMD FR-SF RECTIFIER DIODE

(F1M-SOD-123)F1M/F1K/F1J/F1G/F1D, ASEMI fast recovery diode

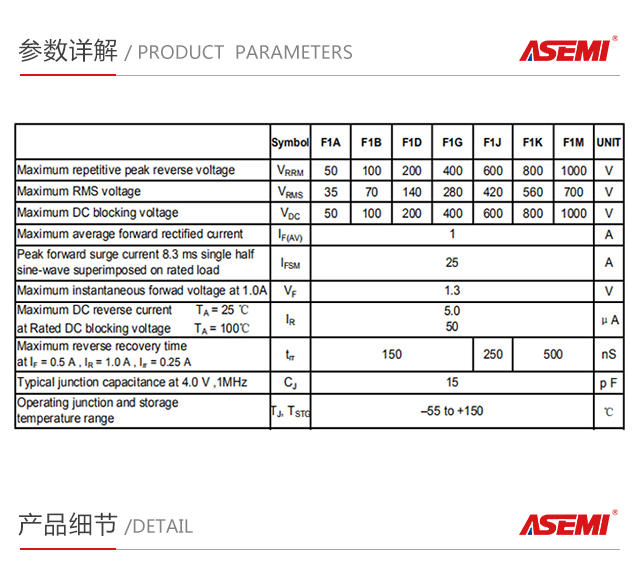

  • TypeF1M

    BrandASEMI

    PackagSOD-123

    FeatureSMD diode

  • 正向电流
    (lo)
    反向耐压
    VRRM
    芯片材质
    Material
    芯片个数
    Number
    1A 50V~1000V GPP(si) 1
    正向电压
    (VF)
    浪涌电流
    IFSM
    芯片尺寸
    Chip Size
    引线数量
    Lead Number
    1.1V 30A 46MIL 2
    漏电流
    (lr)
    操作温度
    Temperature
    恢复时间
    (Trr)
    包装方式
    Package
    10ua -50℃~150℃ >150ns~500ns 3Kpcs/T&R 18Kpcs/box

    Product Introduction

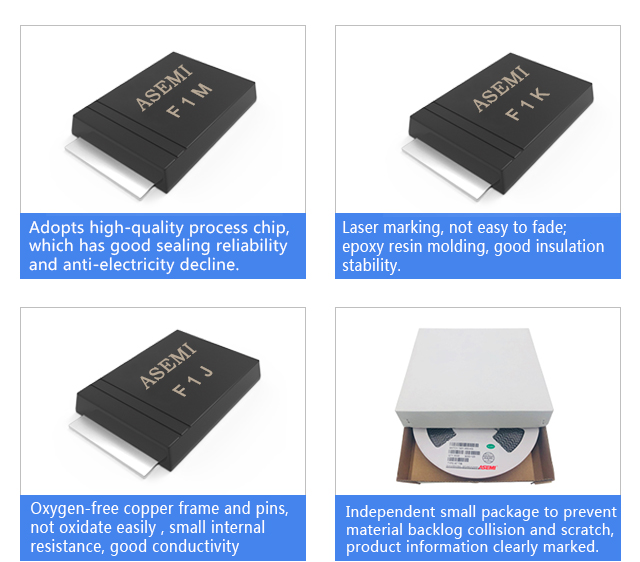

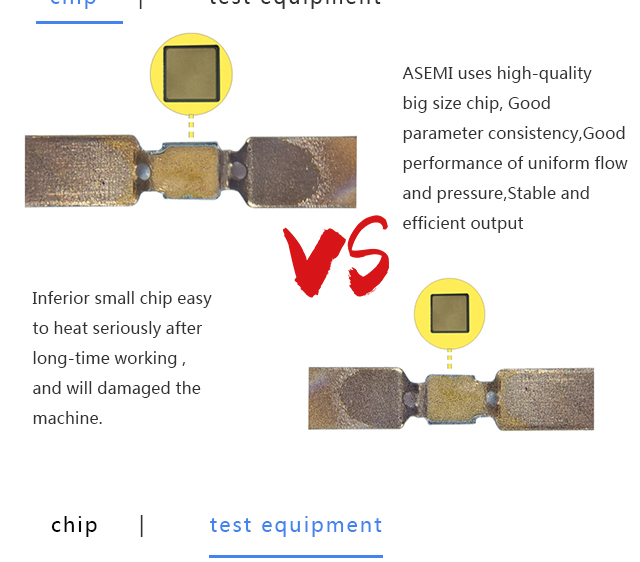

    Adopts high-quality process chip, which has good sealing reliability and prevents electrical degradation

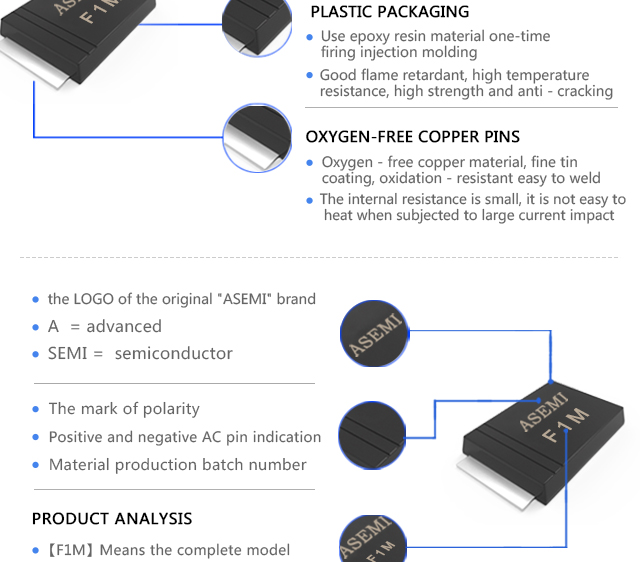

    Laser marking is not easy to fade and prevent refurbishment; epoxy resin grease has good stability

    Oxygen-free copper frame pins, bright tin plating to prevent oxidation, small internal resistance, good conductivity

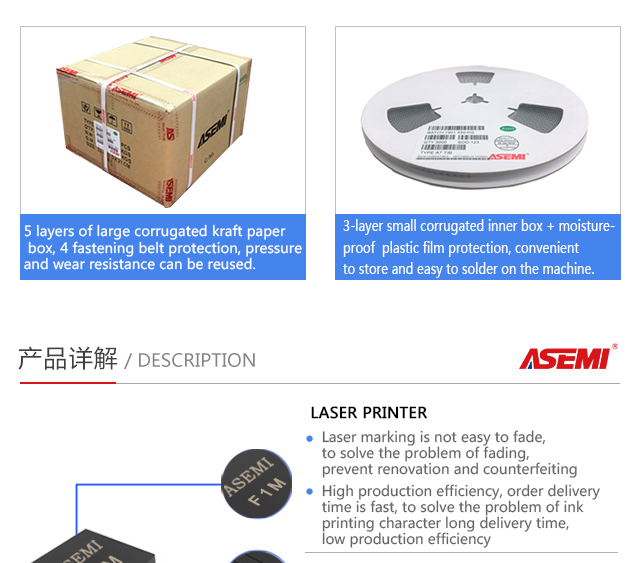

    Adopt 5 layers of large corrugated kraft paper box, 4 layers of restraint belt protection

    The inner box is protected by moisture-proof plastic film, which is convenient for long-term storage in the warehouse

    Product details

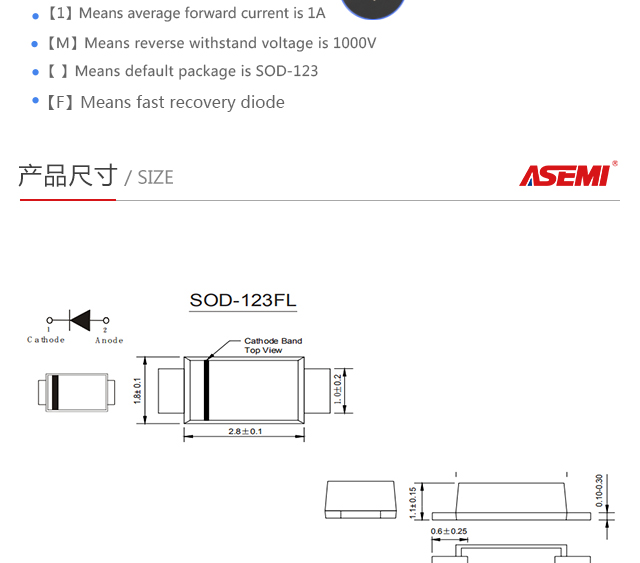

    F1M_01F1M_02F1M_03F1M_04F1M_05F1M_06F1M_07F1M_08F1M_09F1M_10
