8A10/8A8/8A6/8A4/8A2/8A1 ASEMI Rectifier diode

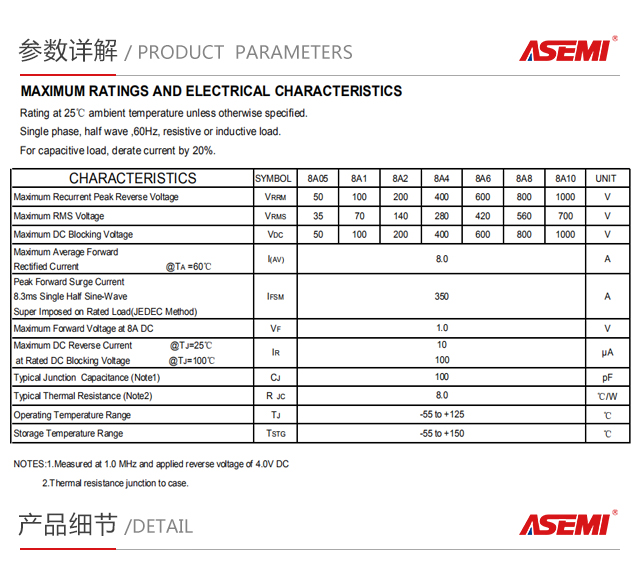

  • Type8A10

    BrandASEMI

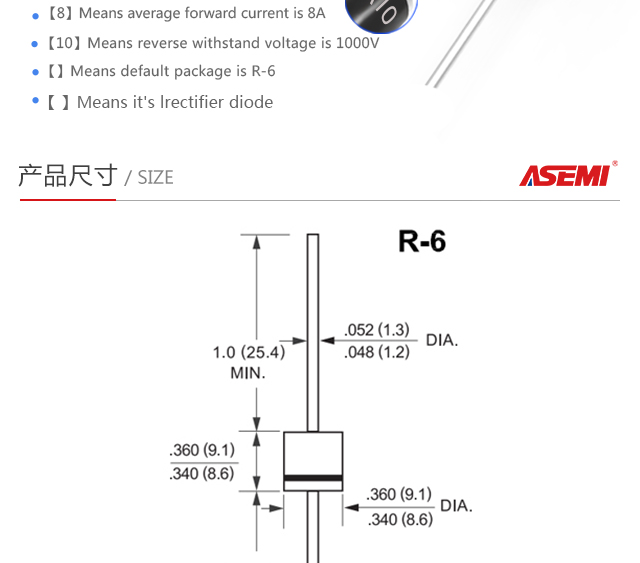

    PackagR-6

    Featurerectifier diode

  • 正向电流
    (lo)
    反向耐压
    VRRM
    芯片材质
    Material
    芯片个数
    Number
    8A 50V~1000V GPP silicon chip 1
    正向电压
    (VF)
    浪涌电流
    IFSM
    芯片尺寸
    Chip Size
    引线数量
    Lead Number
    0.95V 300A 120mil 2
    漏电流
    (lr)
    操作温度
    Temperature
    恢复时间
    (Trr)
    包装方式
    Package
    10ua -55~+150℃ >>500ns 500pcs/box;5Kpcs/ctn

    Product Introduction

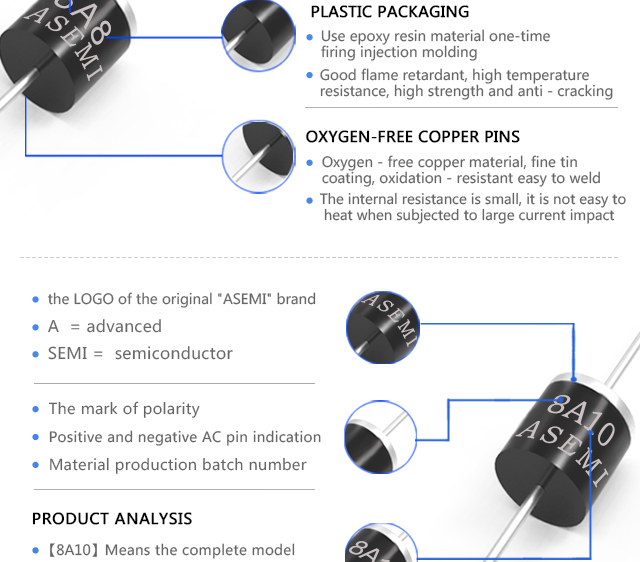

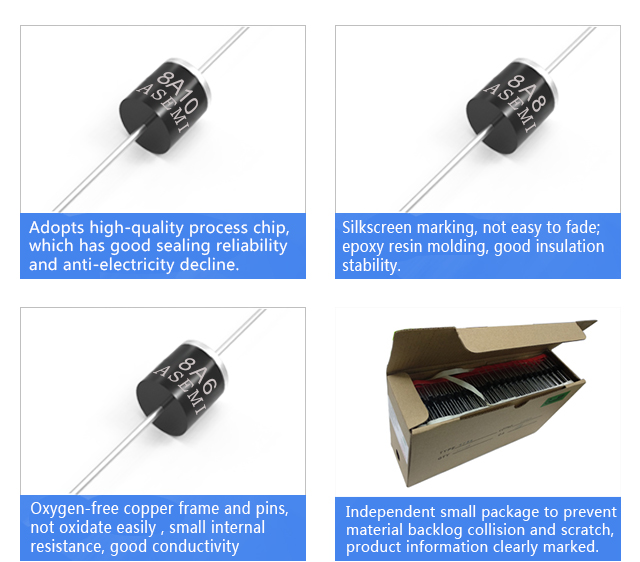

    Adopts high-quality process chip, which has good sealing reliability and prevents electrical degradation

    Silkscreen marking is not easy to fade and prevent refurbishment; epoxy resin grease has good stability

    Oxygen-free copper frame pins, bright tin plating to prevent oxidation, small internal resistance, good conductivity

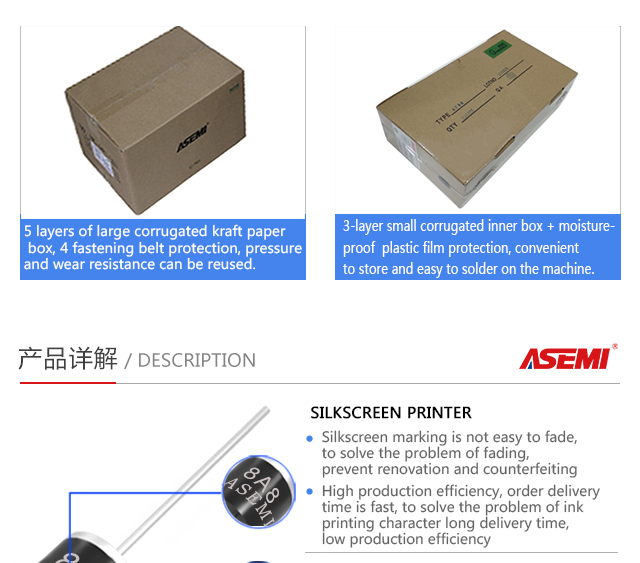

    Adopt 5 layers of large corrugated kraft paper box, 4 layers of restraint belt protection

    The inner box is protected by moisture-proof plastic film, which is convenient for long-term storage in the warehouse

    Product details

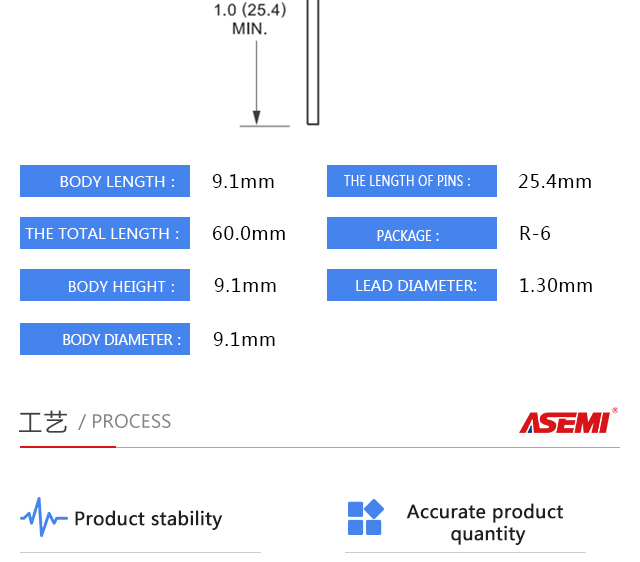

    8A10_018A10_028A10_038A10_048A10_058A10_068A10_078A10_088A10_098A10_10
