Home 35A ~50A DIP BRIDGE RECTIFIER

36MT160/36MT140/36MT120/36MT100/36MT80 ASEMI Three Phase Bridge

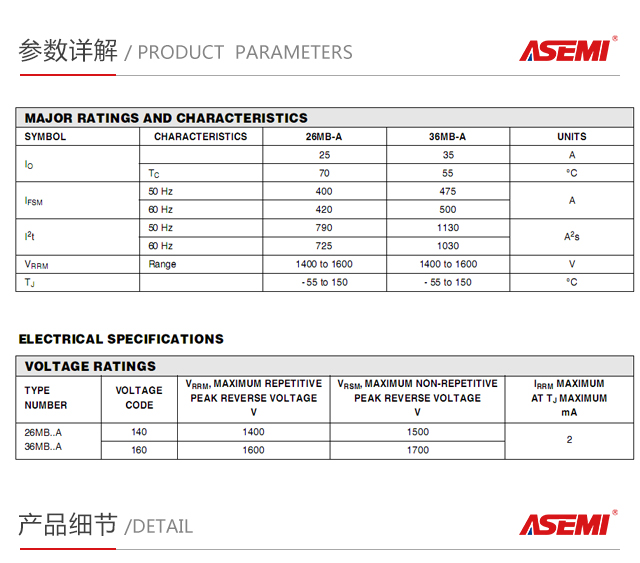

  • Type36MT160

    BrandASEMI

    PackagD-63

    FeatureThree-phase rectifier

  • 正向电流
    (lo)
    反向耐压
    VRRM
    芯片材质
    Material
    芯片个数
    Number
    35A 100V~1600V GPP Silicon 5
    正向电压
    (VF)
    浪涌电流
    IFSM
    芯片尺寸
    Chip Size
    引线数量
    Lead Number
    1.05v 500A 180MIL 5
    漏电流
    (lr)
    操作温度
    Temperature
    恢复时间
    (Trr)
    包装方式
    Package
    500uA -55℃~150℃ >500ns 100PCS/box

    Product Introduction

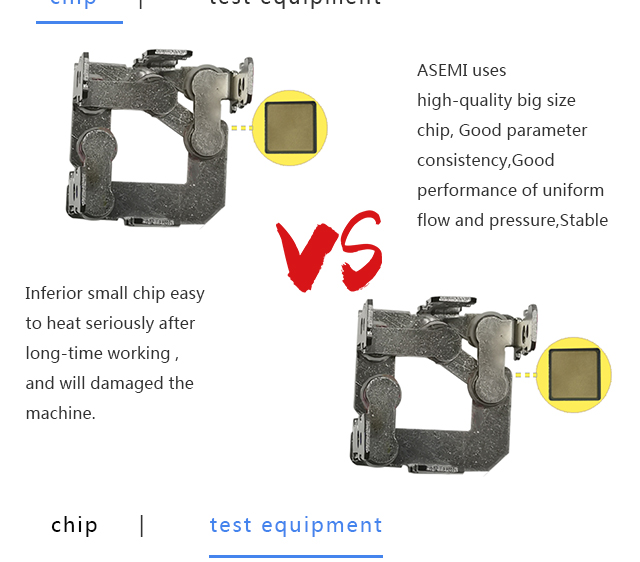

    Adopts high-quality process chip, which has good sealing reliability and prevents electrical degradation

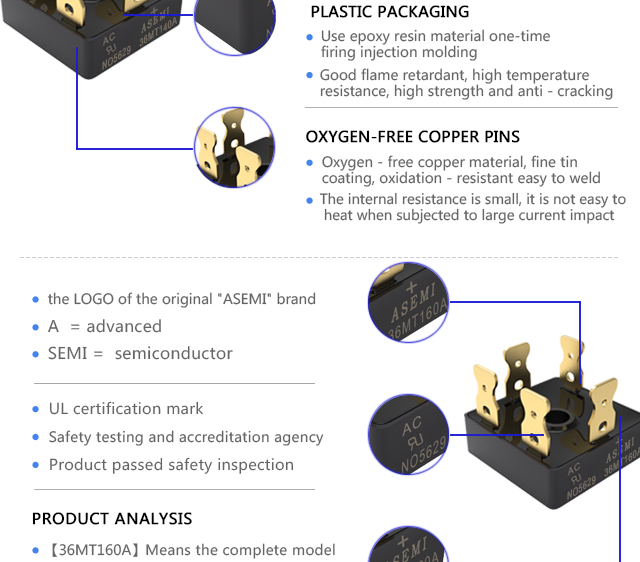

    Laser marking is not easy to fade and prevent refurbishment; epoxy resin grease has good stability

    Oxygen-free copper frame pins, bright tin plating to prevent oxidation, small internal resistance, good conductivity

    Adopt 5 layers of large corrugated kraft paper box, 4 layers of restraint belt protection

    The inner box is protected by moisture-proof plastic film, which is convenient for long-term storage in the warehouse

    Product details

    36MT160A_0136MT160A_0236MT160A_0336MT160A_0436MT160A_0536MT160A_0636MT160A_0736MT160A_0836MT160A_0936MT160A_10
