Home 1A~10A DO STD RECTIFIER DIODE

10A10/10A8/10A6/10A4/10A2/10A1 ASEMI Rectifier diode
  • Type10A10

    BrandASEMI

    PackagR-6

    Featurehigh current

  • 正向电流
    (lo)
    反向耐压
    VRRM
    芯片材质
    Material
    芯片个数
    Number
    10A 50V~1000V GPP silicon chip 1
    正向电压
    (VF)
    浪涌电流
    IFSM
    芯片尺寸
    Chip Size
    引线数量
    Lead Number
    0.95V 350A 135mil 2
    漏电流
    (lr)
    操作温度
    Temperature
    恢复时间
    (Trr)
    包装方式
    Package
    10ua -55~+150℃ >>500ns 500pcs/box;5Kpcs/ctn

    Product Introduction

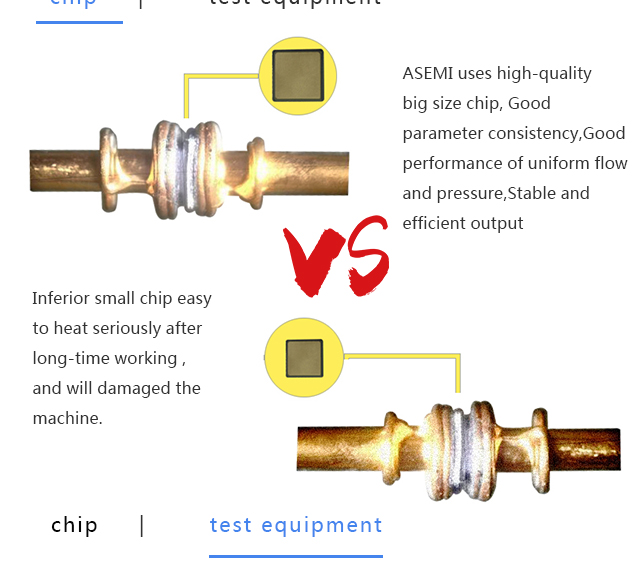

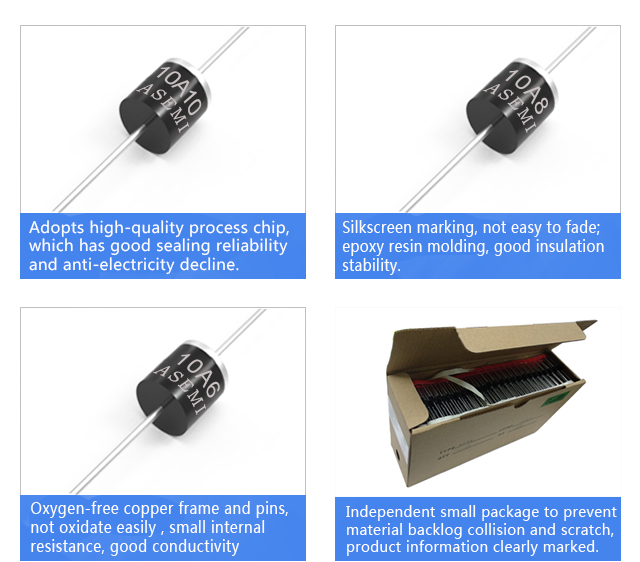

    Adopts high-quality process chip, which has good sealing reliability and prevents electrical degradation

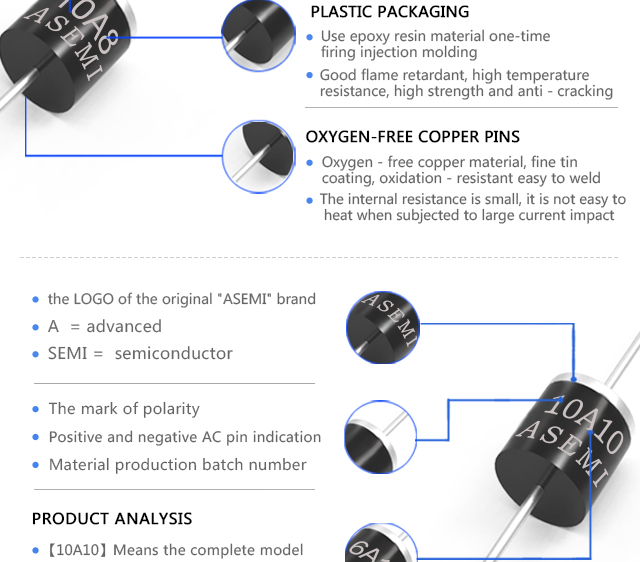

    Silkscreen marking is not easy to fade and prevent refurbishment; epoxy resin grease has good stability

    Oxygen-free copper frame pins, bright tin plating to prevent oxidation, small internal resistance, good conductivity

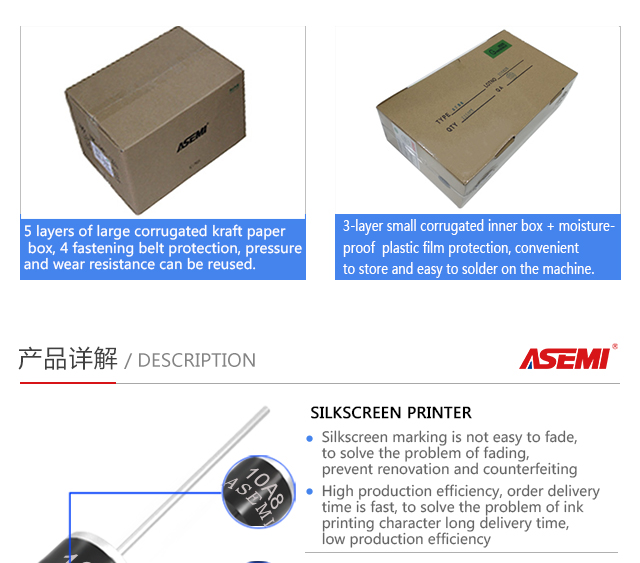

    Adopt 5 layers of large corrugated kraft paper box, 4 layers of restraint belt protection

    The inner box is protected by moisture-proof plastic film, which is convenient for long-term storage in the warehouse

    Product details

    10A10_0110A10_0210A10_0310A10_0410A10_0510A10_0610A10_0710A10_0810A10_0910A10_10
